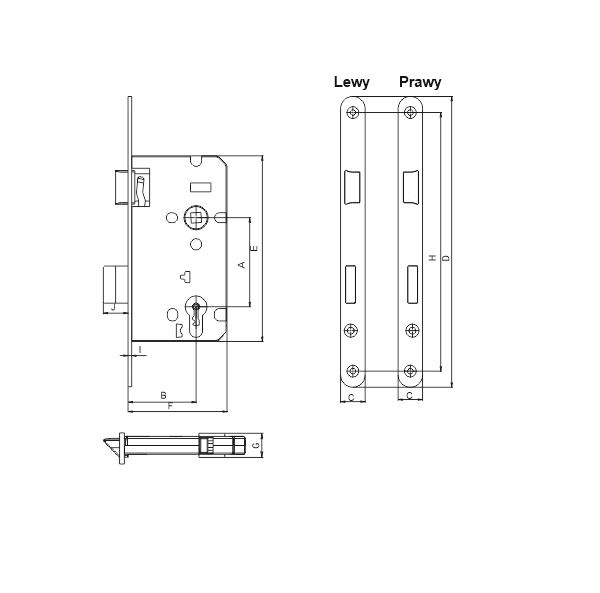

Product code | Dimensions (mm) | |||||||||
A | B | C | D | E | F | G | H | I | J | |
Z7ABY | 72 | 55 | 20 | 235 | 150 | 80 | 15,5 | 209 | 3 | 2x10 |
Z7AZY | 72 | 55 | 20 | 235 | 150 | 80 | 15,5 | 209 | 3 | 10 |
Z7ACY | 72 | 55 | 20 | 235 | 150 | 80 | 15,5 | 209 | 3 | 10 |
Z7AB21 | 72 | 55 | 20 | 235 | 150 | 80 | 15,5 | 194 | 3 | 2x10 |
Z7AZ21 | 72 | 55 | 20 | 235 | 150 | 80 | 15,5 | 194 | 3 | 10 |
Z7AC21 | 72 | 55 | 20 | 235 | 150 | 80 | 15,5 | 194 | 3 | 10 |
Main features | |
Available colors | white zinc |
Available types | cylinder (B), strike (Z), WC (C) |
Mounting side | left or right |
