Prison single-leaf door type DC3.1 ZK
- Donimet

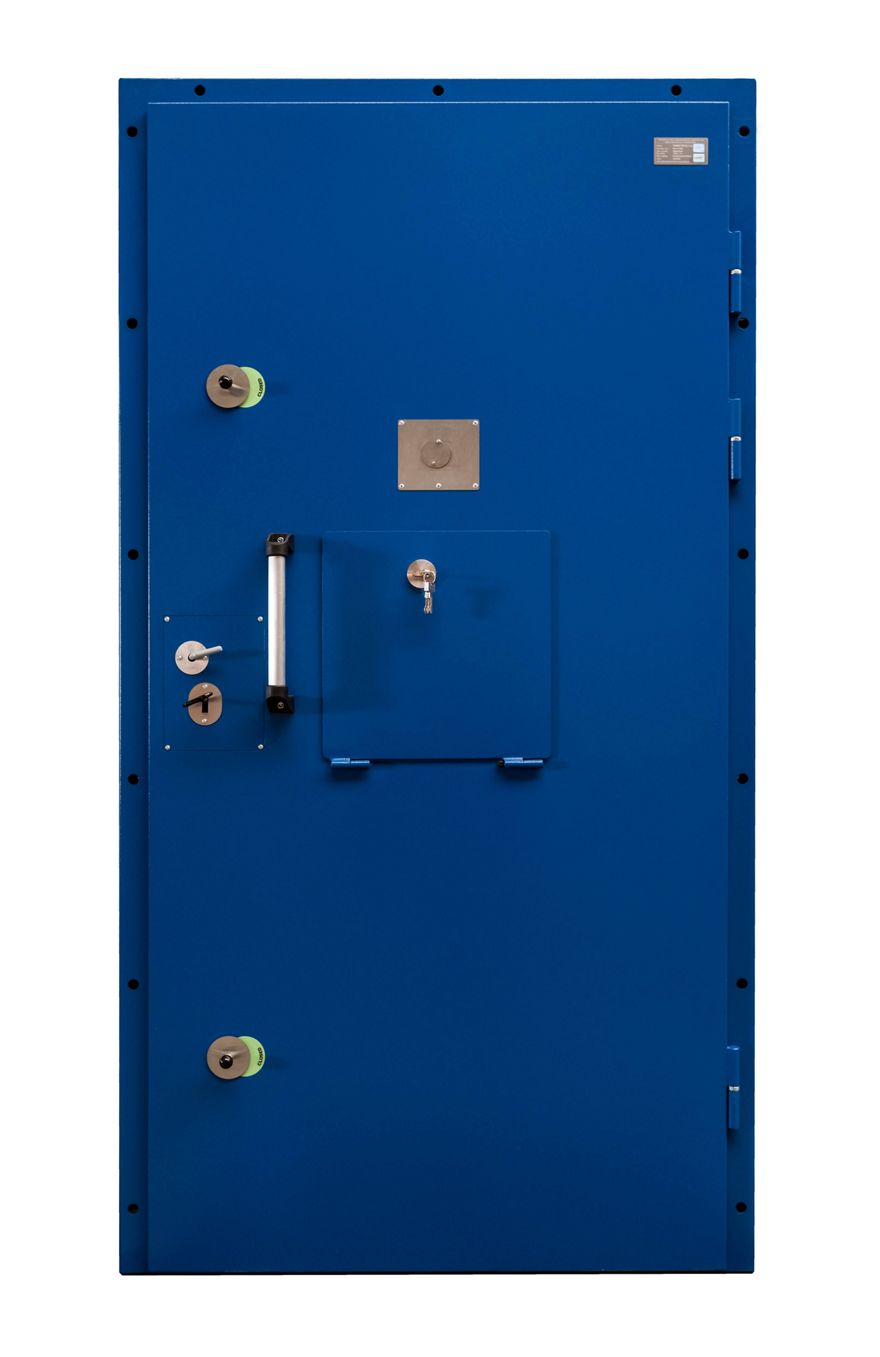

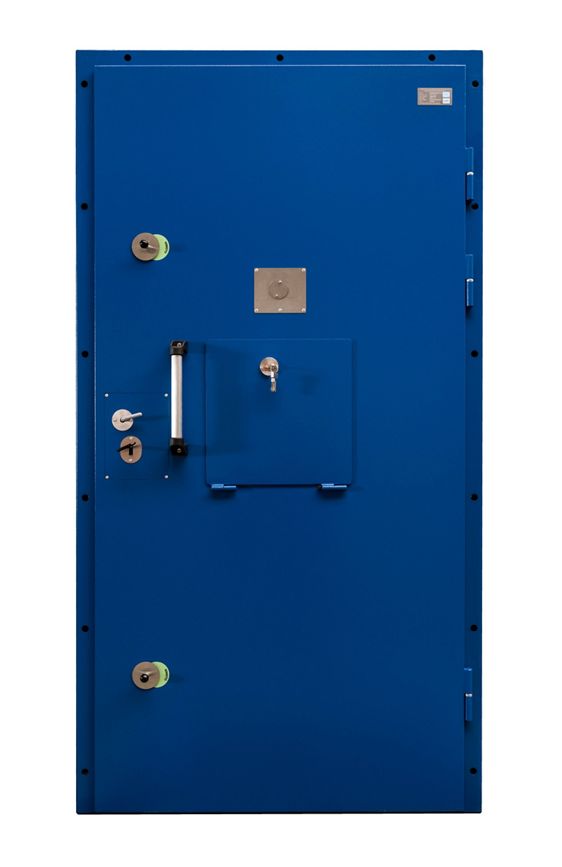

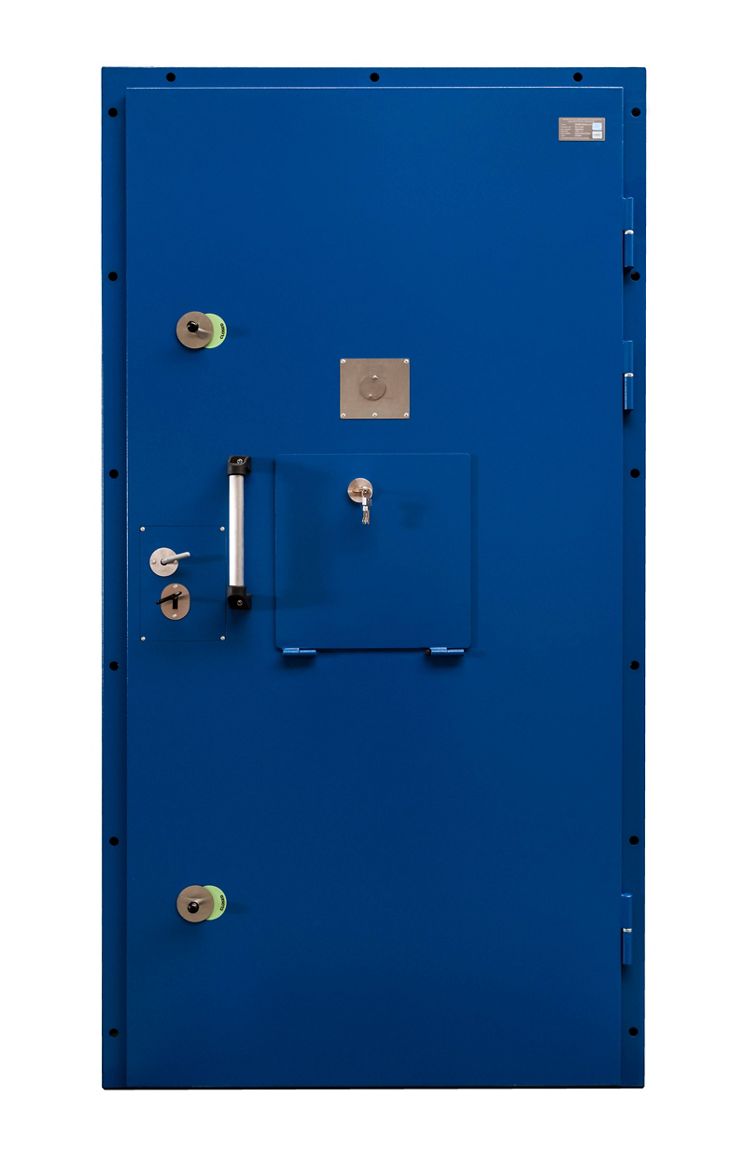

The DC3.1 ZK doors are manufactured in various sizes. They are steel doors with profiled rebates on four edges. The door leaf with a thickness of 65 mm or 85 mm is composed of two steel sheets 1,5 mm and 2 mm thick. The construction is reinforced internally by „C” profiles. The space between profiles is filled with mineral wool. The door leaf is equipped with three hinges ø22 with ball bearings. „C” or „L” profile frame is made of steel sheet 3 mm thick. On the perimeter of the door leaf, there are EPDM rebate gaskets. EPDM gaskets are also installed along the perimeter of the frame, except for the threshold. At standard, the door is equipped with a threshold of 20 mm high. The hinge side is secured by three anti-burglary bolts. At standard, the prison door is equipped with a spyhole prison type secured by bulletproof glass BR2 and two manual slide bolts. The DC3.1 ZK door can be equipped with key-operated manual locks, electric locks and magnetic card controlled locks.
The DC3.1 ZK door can be equipped with hatch used for serving food and/or handcuffing the detainee. The DC3.1 ZK door can be used as external and internal door, most often produced as opened outwards.
The DC3.1 ZK door can be made with fire resistance EI30, EI60 and as a double-leaf door. At standard, from the corridor side, there is an emergency access to the lock after disassembling the steel plate.
FINISHES:
- RAL color powder coating
TECHNICAL CHARACTERISTICS:
- „C” or „L” profile frame made of steel sheet 3 mm thick with EPDM gasket on three edges
- door leaf made of plated steel sheet 1,5 mm (corridor side) and 2 mm thick (cell side)
- door leaf 65 mm or 85 mm thick without additional finishes with EPDM gasket on four edges
- filled with mineral wool of a density 60kg/m3
- three hinges with ball bearings
- three anti-burglary bolts
- spyhole prison type with bulletproof glass BR2
- two manual mortise or surface slide bolts
- handrail
- main lock: multipoint class 7 or prison type lock
- electric lock (optional)
- magnetic lock (optional)
- prison chain (optional)
- position contact (optional)
- hatch (optional)
PARAMETERS:
- burglary resistance – class RC4 according to PN-EN 1627:2012
- acoustic insulation – Rw= 40 dB according to EN ISO 717-1: 2013-08
- thermal transmittance – 1,3 Uw(W/m2K) according to EN ISO10077-1: 2007
- wind load resistance – class 5C according to EN 12210: 2001
- water resistance – class 3A according to EN 12208: 2001
- dangerous substances – PZH approval according to EN 14351-1+A1: 2010
- air permeability – class 4 according to EN 12207: 2001
- operating forces – class 3 according to EN 12217: 2005
- mechanical strength – class 4 according to EN 1192: 2001
APPLICATION:
- prison cells in penitentiary facilities
- rooms for the residents of the juvenile detention centers
- rooms for the detainees in the military facilities
- pre-trial detention facilities
- cells for the detainees at the police stations
- rooms for sentenced persons in courts
- rooms for the detainees at border crossing points, airports and in the stadiums
- ·all other security services facilities with rooms for the detainees
