• TECHNICAL CHARACTERISTICS:

    • „C” or „L” profile frame made of steel sheet 3 mm thick with EPDM gasket on three edges, after installation filled with concrete
    • door leaf made of steel sheet 2 mm thick
    • door leaf reinforced by profiles filled with concrete
    • door leaf 65 mm thick without additional finishes with EPDM gasket on four edges
    • additional steel sheet 2 mm thick
    • filled with mineral wool of a density 60kg/m3
    • four hinges with ball bearings
    • three anti-burglary bolts
    • main lock: multipoint class 7 according to EN 12209
    • additional high security lock class A according to EN 1300



    PARAMETERS:

    • burglary resistance – class II according to EN 1143- 1:2012
    • wind load resistance – class 5C according to EN 12210: 2001
    • dangerous substances – PZH approval according to EN 14351-1+A1: 2010
    • water resistance – class 3A according to EN 12208: 2001
    • air permeability – class 4 according to EN 12207: 2001
    • mechanical strength – class 4 according to EN 1192: 2001



    APPLICATION:

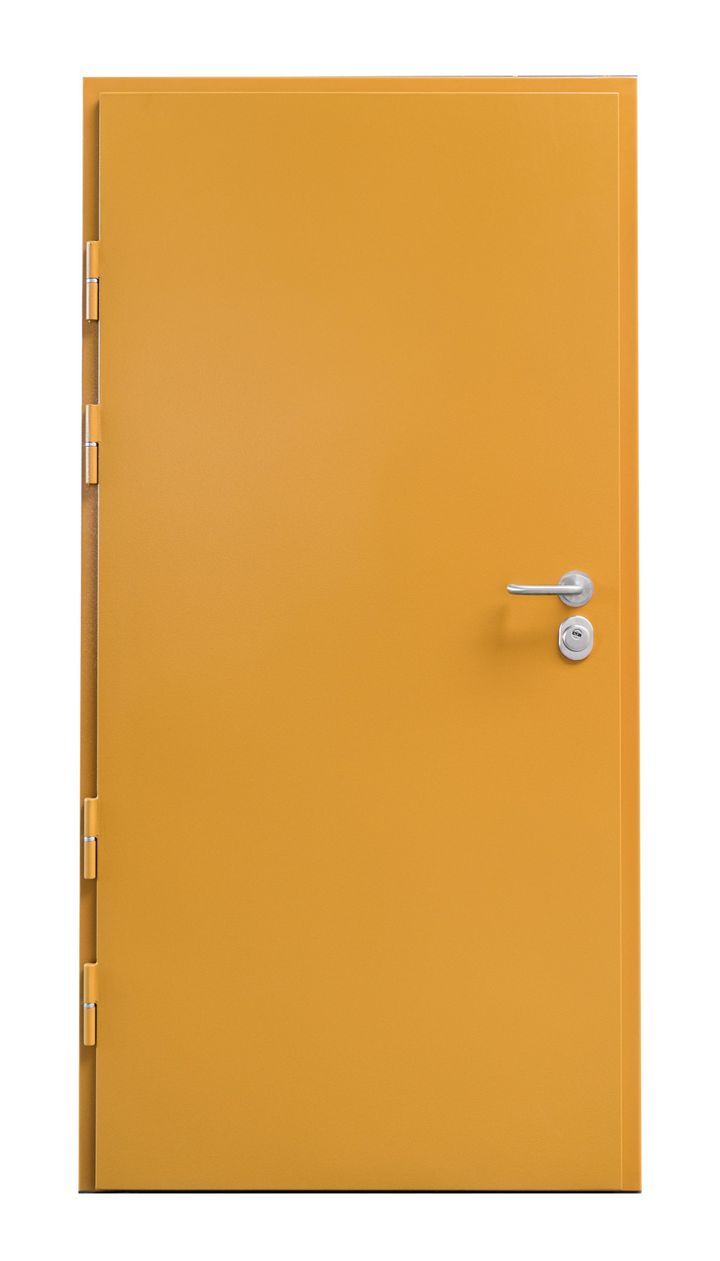

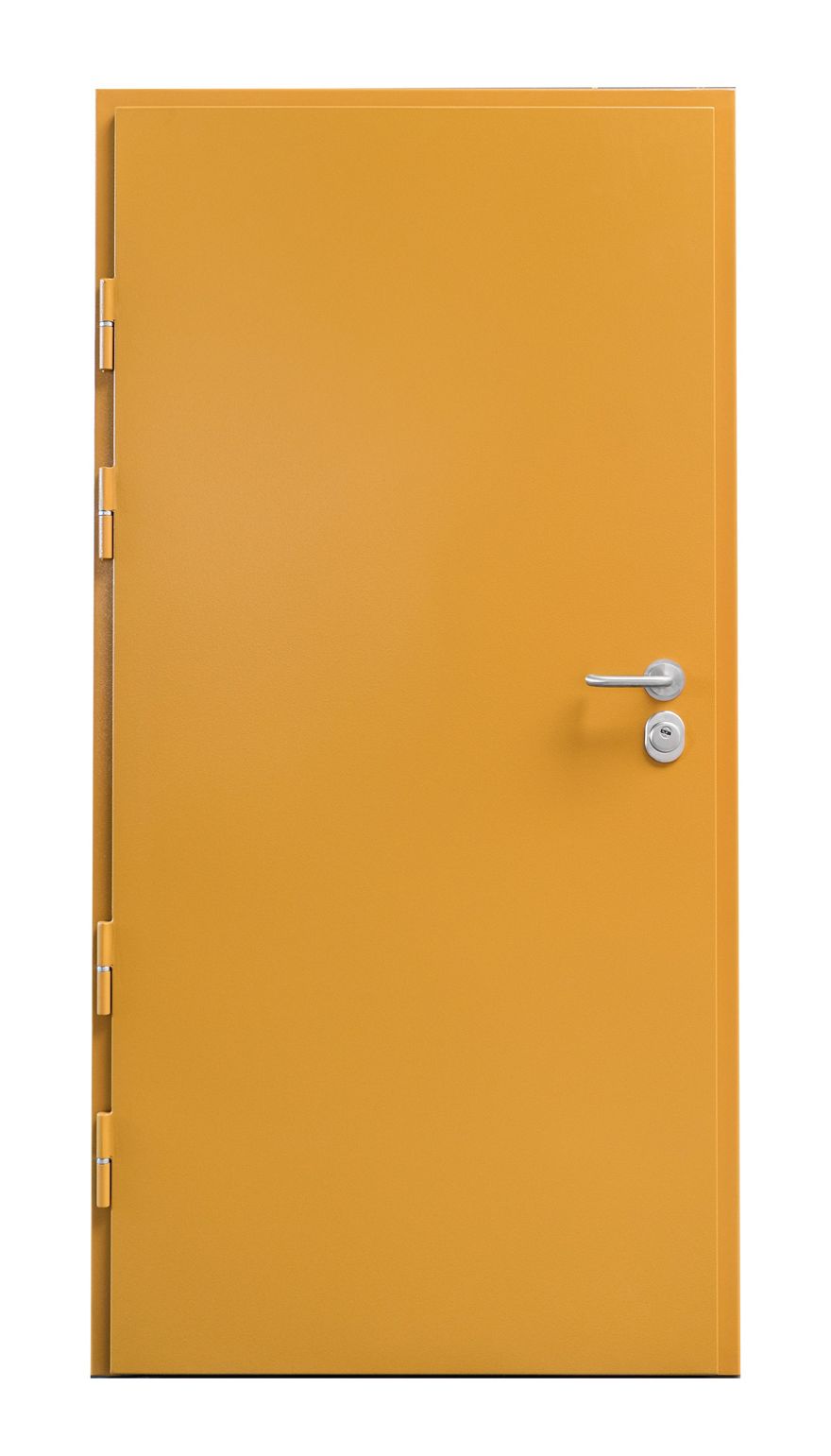

    DOOR DC3.1/DS3 WITHOUT CE MARKING

    • medium security bank facilities and facilities related to cash handling
    • all facilities and zones where, due to the high value of the protected goods, class II is required
