4 mounting options
Gate closer fits pillar or wall mount, push or pull side – with one product and matching accessories – without welding
Vertical gate closer with 3D Cam-Motion® technology and guide rail – for single action gates, adjustable size
With its minimalist and slim design, the DC630G is mounted vertically behind your gate. Unique 3D Cam-Motion technology allows easy opening with minimal user effort. It ensures comfortable operation and barrier-free access whilst maintaining a closing force to ensure secure closing.
Silver, EV1
Black, similar to RAL 9004
Customized colours on request
DC630G-R with mounting plate AC632, pillar mounting on pull side
DC630G-R with mounting plate AC632, pillar mounting on pull side

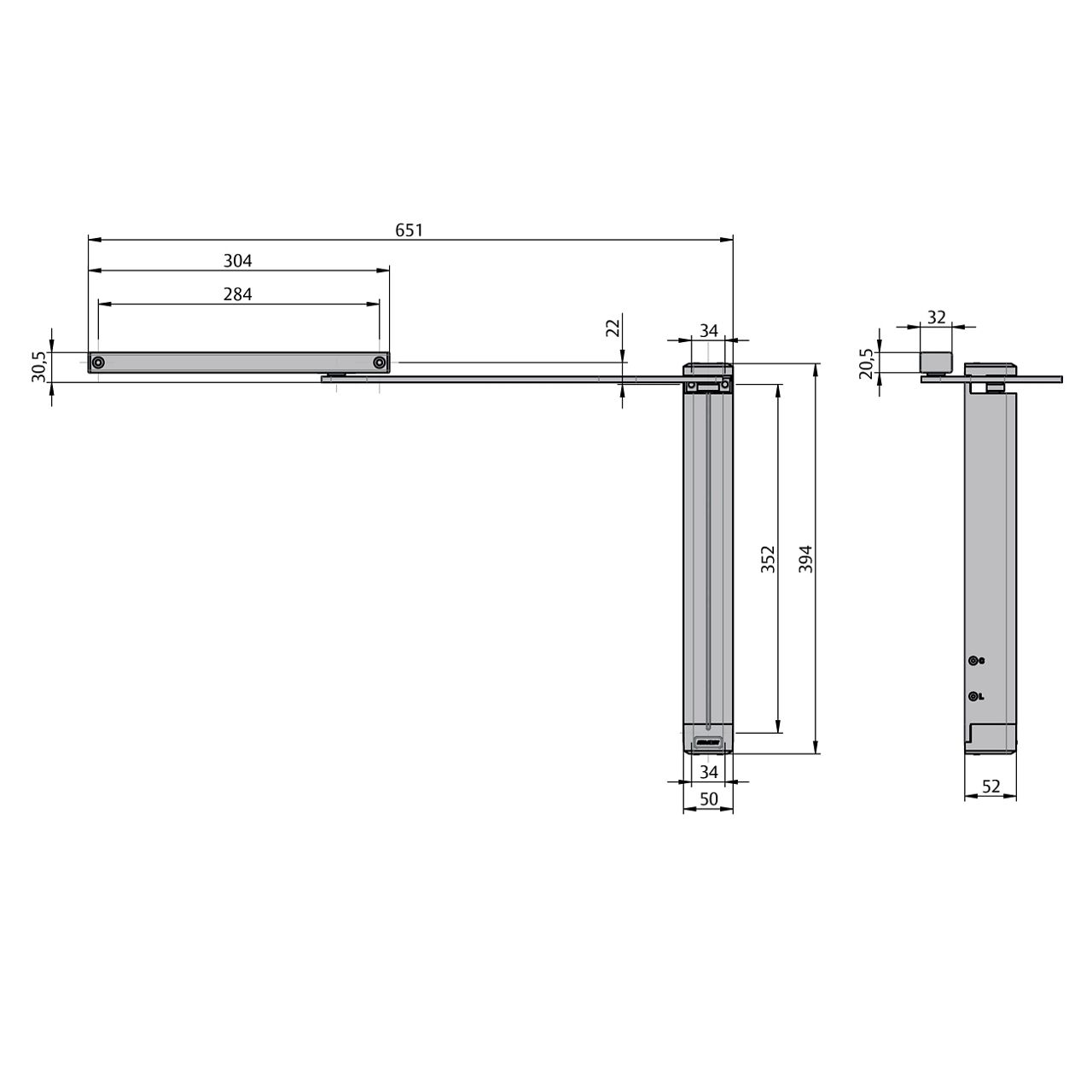

DC630G, dimensions in mm

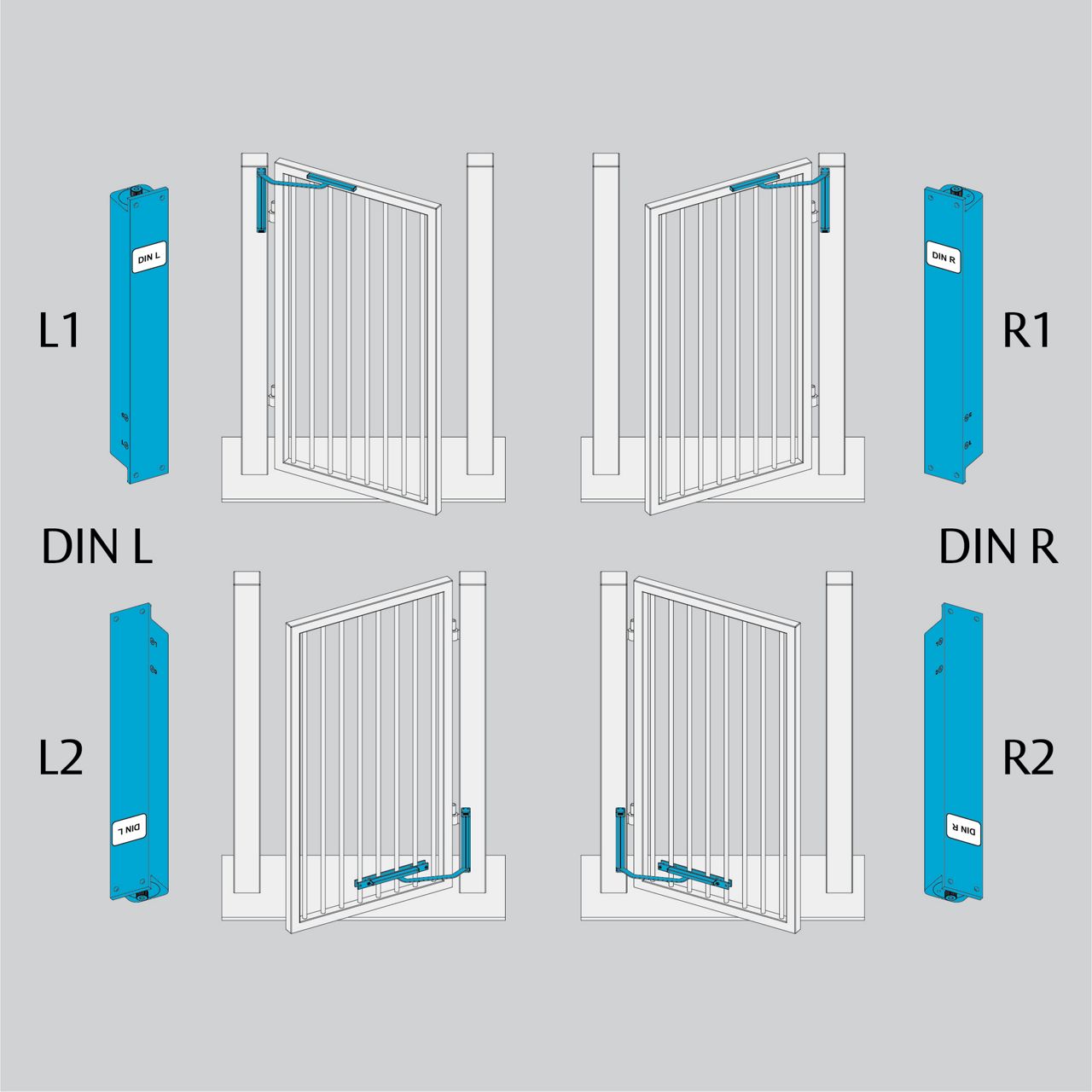

Mounting options on gate pillar, pull side

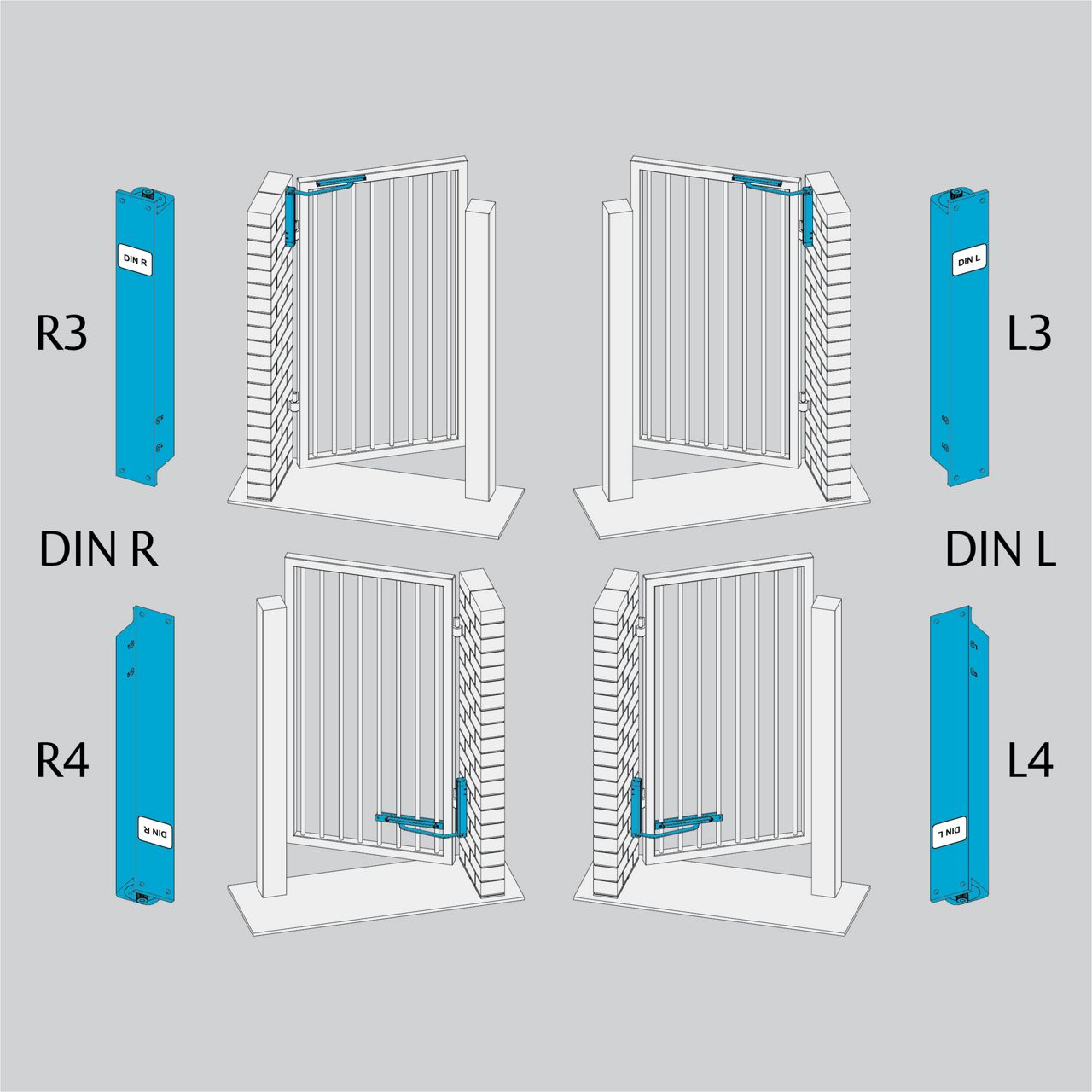

Mounting options on wall, push side

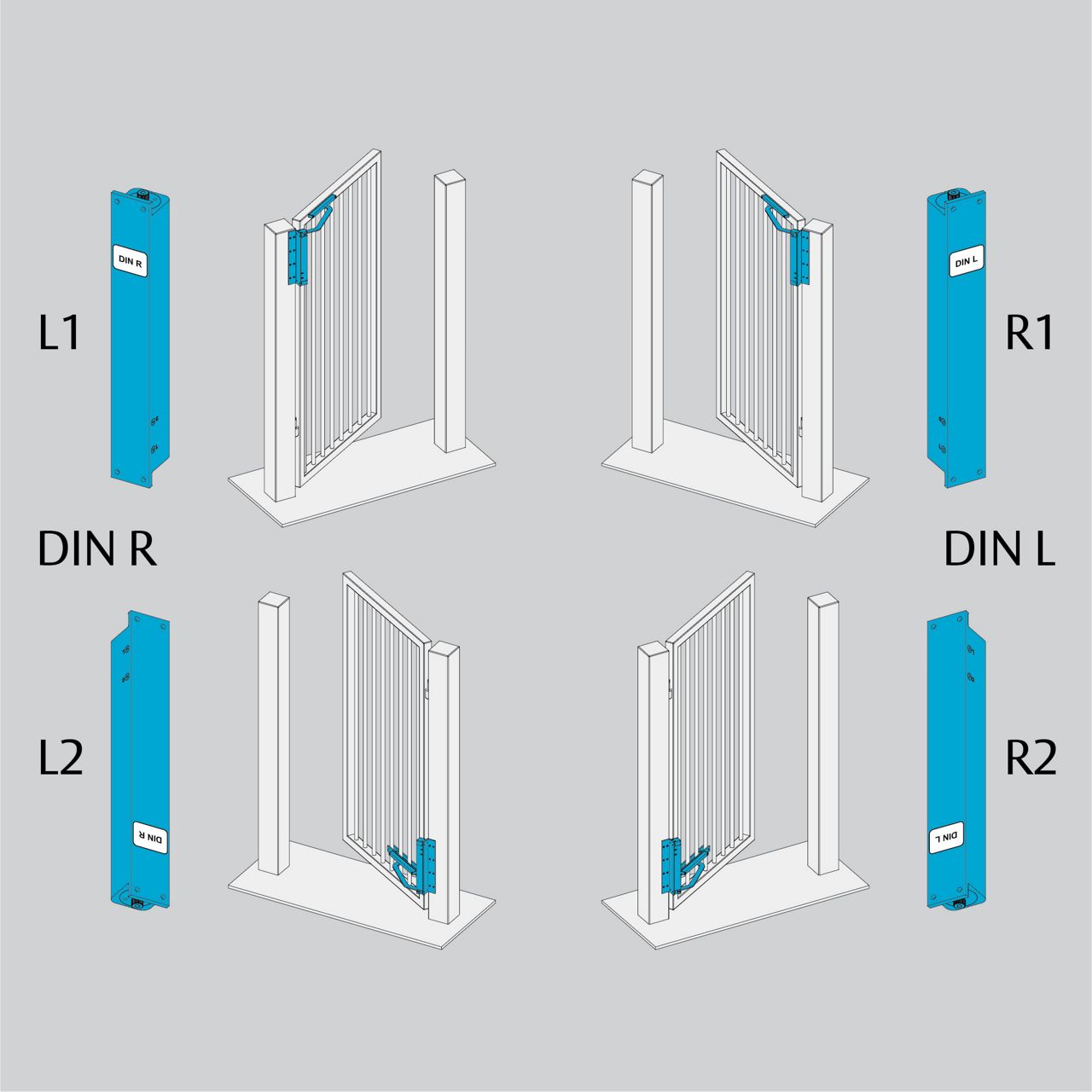

Mounting options on gate pillar, push side

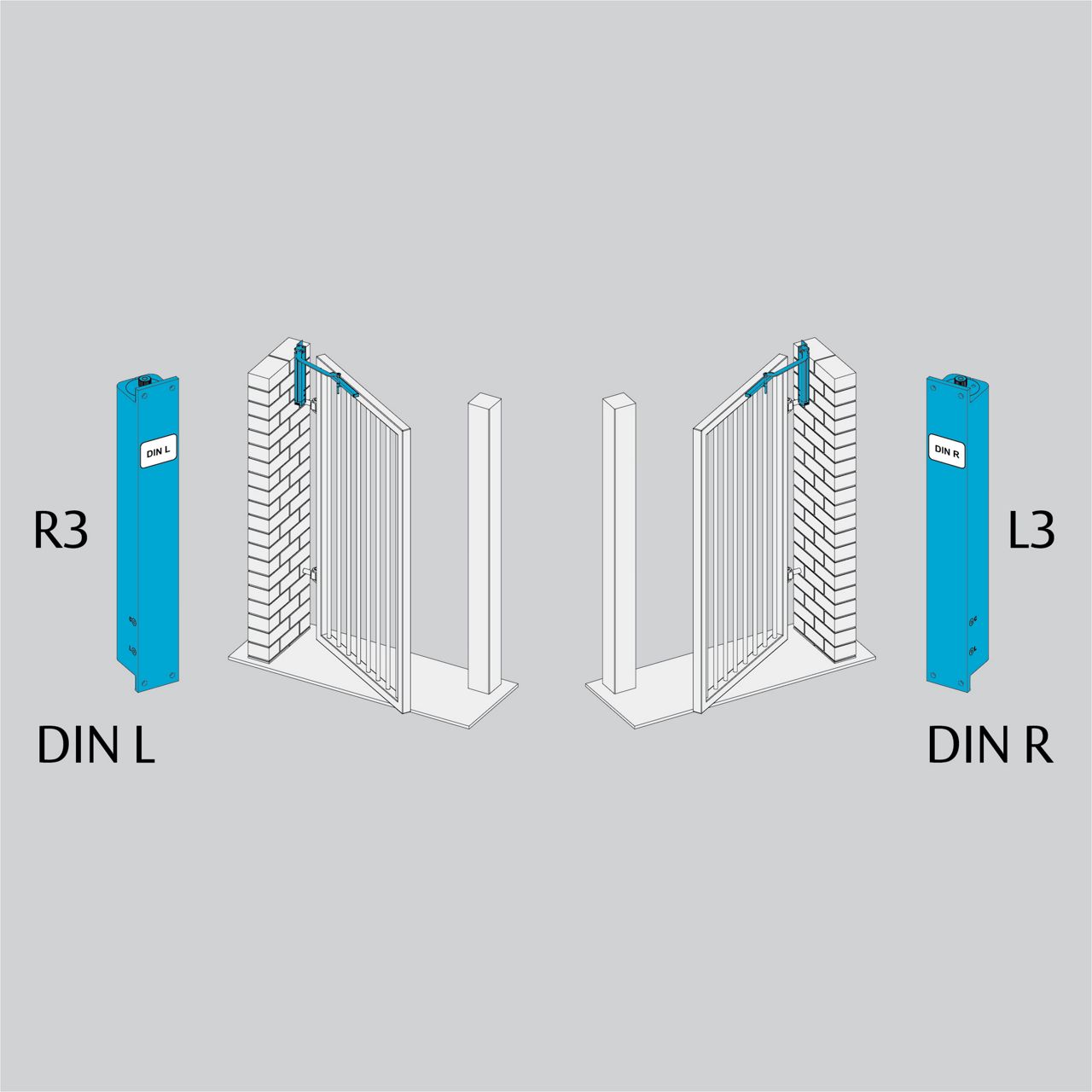

Mounting options on wall, pull side

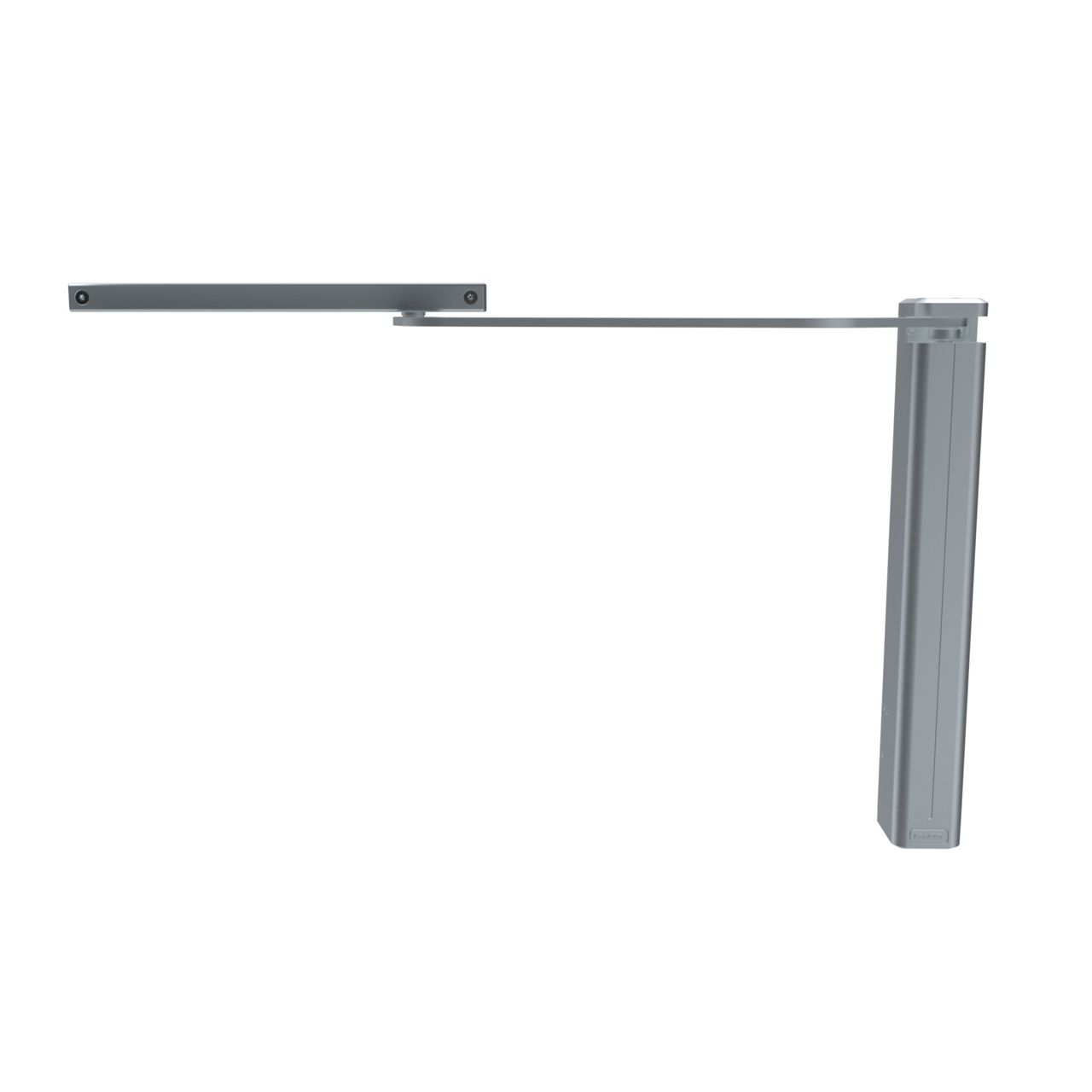

DC630G-R, Silver, EV1

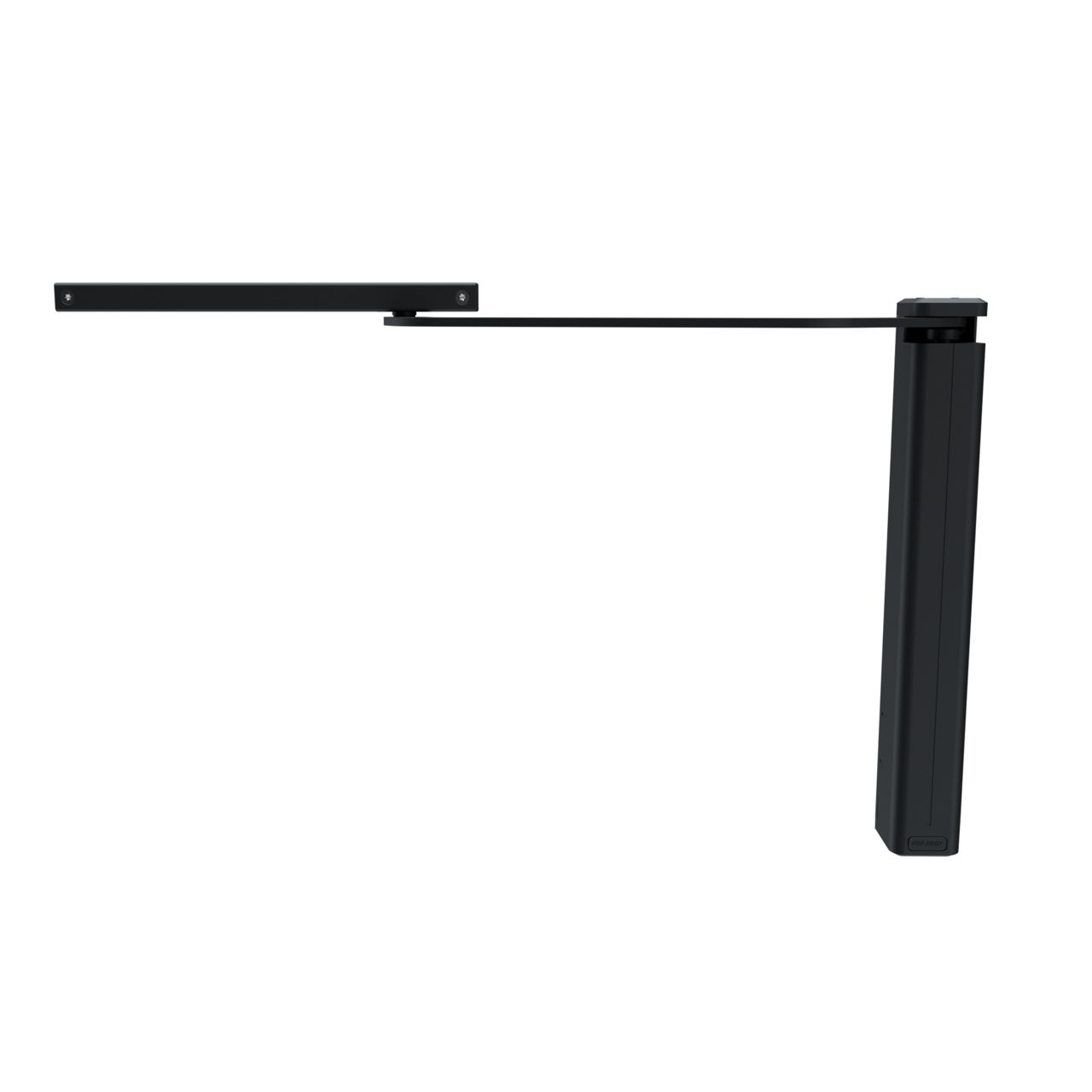

DC630G-R, Black, similar to RAL 9004
Mounting plate AC632 for guide rail, Silver, EV1

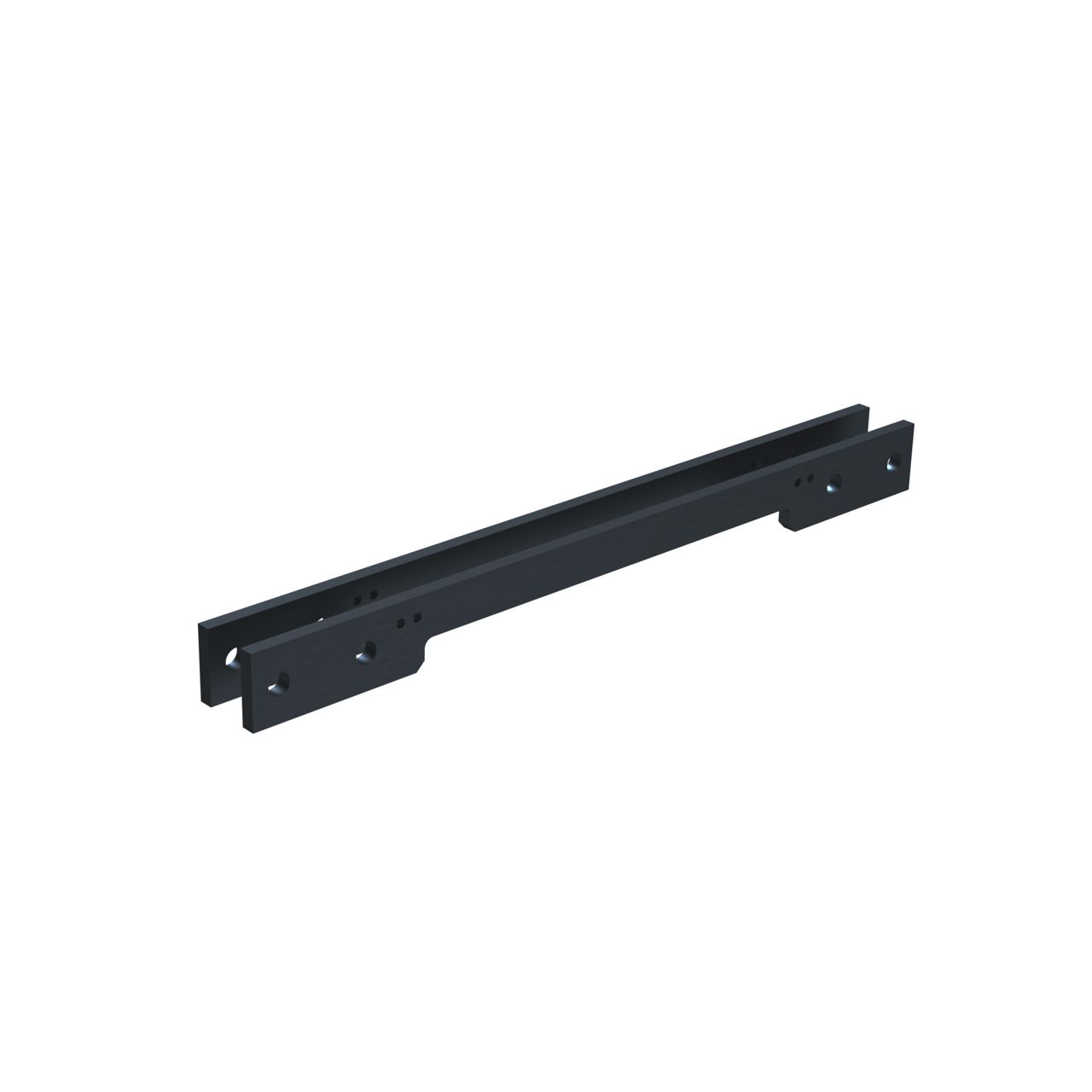

Mounting plate AC632 for guide rail, Black, similar to RAL 9004

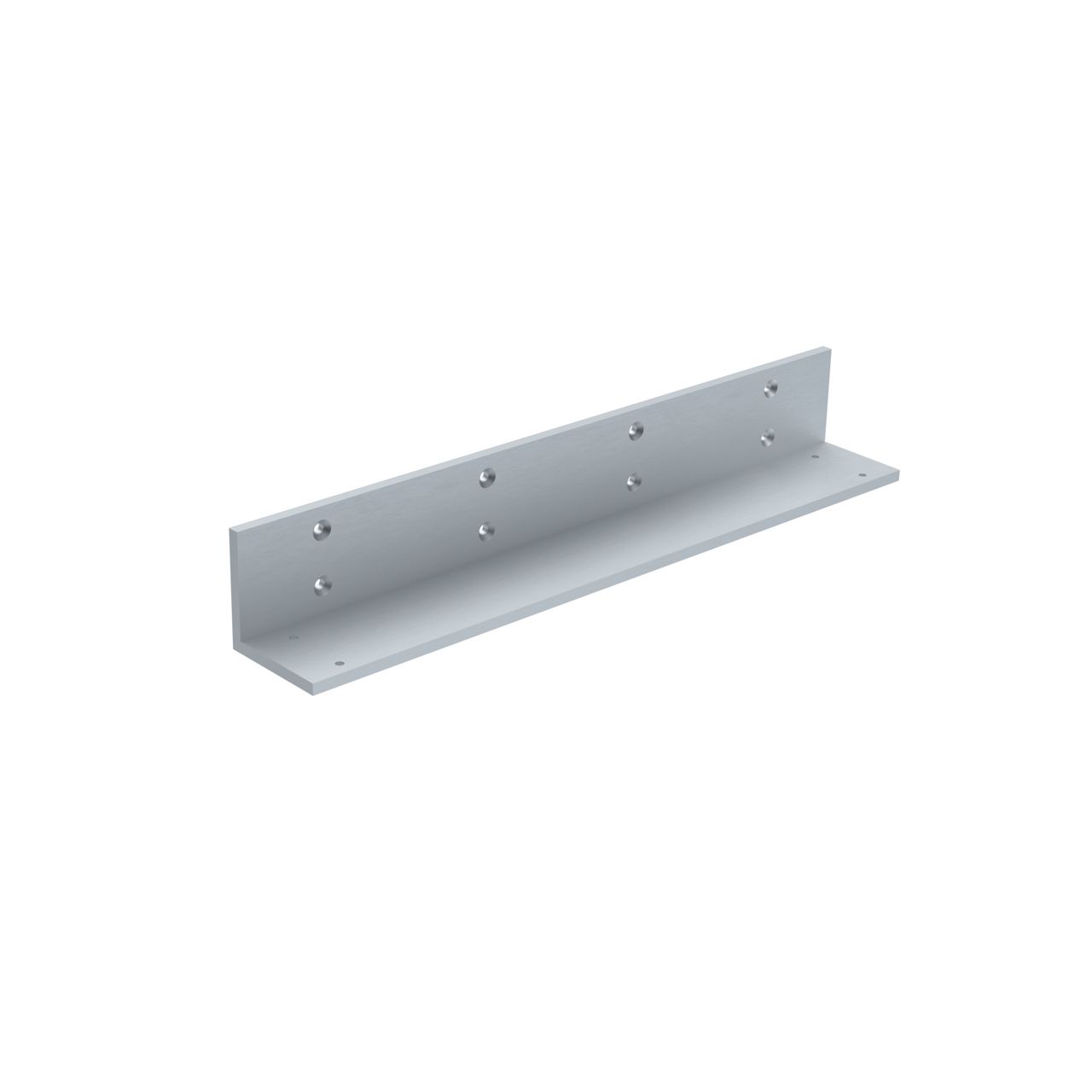

Mounting bracket AC633 for body, Silver, EV1

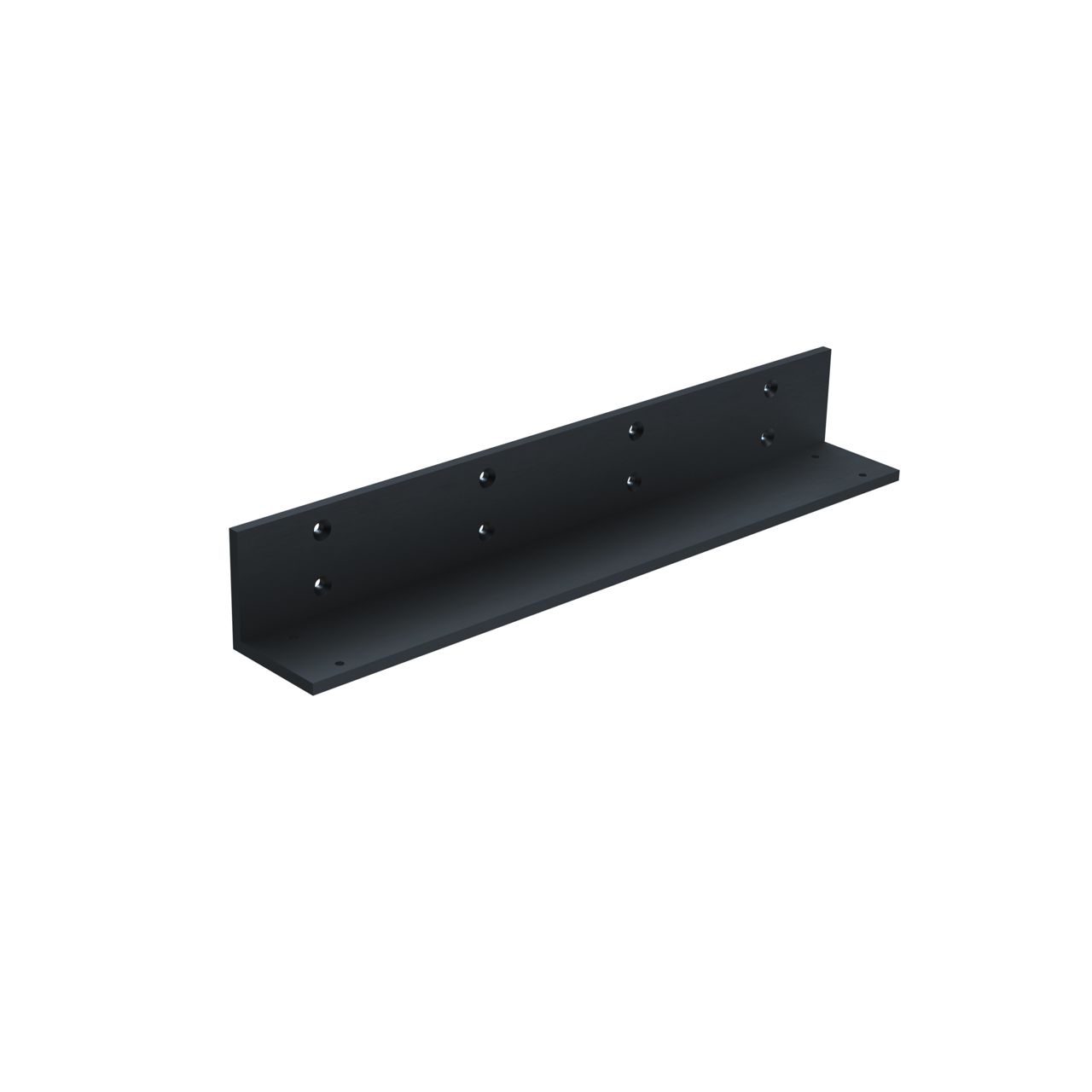

Mounting bracket AC633 for body, Black, similar to RAL 9004
Gate closer fits pillar or wall mount, push or pull side – with one product and matching accessories – without welding
Closing and latch speeds can be raised and lowered independently, so closing performance matches the gate’s use
Minimal visual impact due to vertical installation behind the gate – out of sight but always at work
Features
Product variants
Accessories
Description | Part number | Type |
---|---|---|
DC630G-L, left-handed, silver, EV1 | DC630G-L---EV1- | Gate closer |
DC630G-R, right-handed, silver, EV1 | DC630G-R---EV1- | Gate closer |
DC630G-L, left-handed, black, similar to RAL 9004 | DC630G-L---9004 | Gate closer |
DC630G-R, right-handed, black, similar to RAL 9004 | DC630G-R---9004 | Gate closer |
Mounting plate AC632 for guide rail, silver, EV1 | DCAC632----EV1- | Accessory |
Mounting plate AC632 for guide rail, black, similar to RAL 9004 | DCAC632----9004 | Accessory |
Mounting bracket kit AC633 for body, silver, EV1 | DCAC633----EV1- | Accessory |
Mounting bracket kit AC633 for body, black, similar to RAL 9004 | DCAC633----9004 | Accessory |
Mechanical hold-open device A152 | DCA152--------- | Accessory |
Mechanical opening damper A153 | DCA153--------- | Accessory |
Name | Value |
---|---|
Maximum gate weight | 150 kg |
Maximum gate width | 1300 mm |
Closing speed (C) | Variable between 130° and 20° |
Latch speed (L) | Variable between 20° and 0° |
Maximum opening angle | ~130° (gate construction / hinges may limit the maximum opening angle) |
Gate system | Single action, with or without protruding bars |
Handing | Left- / right-handed |
Mounting options | Pillar or wall mounting | Pull or push side |
Force adjustment | Yes |
Pretension adjustment | Yes |
Corrosion resistance | Yes |
Dimensions (H x D x L) | 50 x 52 x 394 mm |
Barrier-free according to | CEN/TR 15894 |
Third-party verified EPD | ISO 14025, EN 15804 |
