Detachable spindle
The spindle is available in seven different lengths and in two different variants to allow for flexible installation
DC477
Floor spring with Cam-Motion® technology for single and double action doors, size 2-4
The DC477 with adjustable closing force is suitable for heavy doors. Balancing building design and accessibility, ASSA ABLOY floor springs are minimal on the outside and powerful on the inside – ideal for large double action doors made of any material, even glass. The rapidly decreasing opening force of Cam-Motion technology ensures doors open with less effort.
- Certified in compliance with EN 1154, size 2-4
- Suitable for fire and smoke protection doors (not for hold-open variants)
- For single and double action doors up to 1100 mm width and 170 kg weight
- Barrier-free according to CEN/TR 15894
Colours
Satin stainless steel
Polished stainless steel
Polished brass

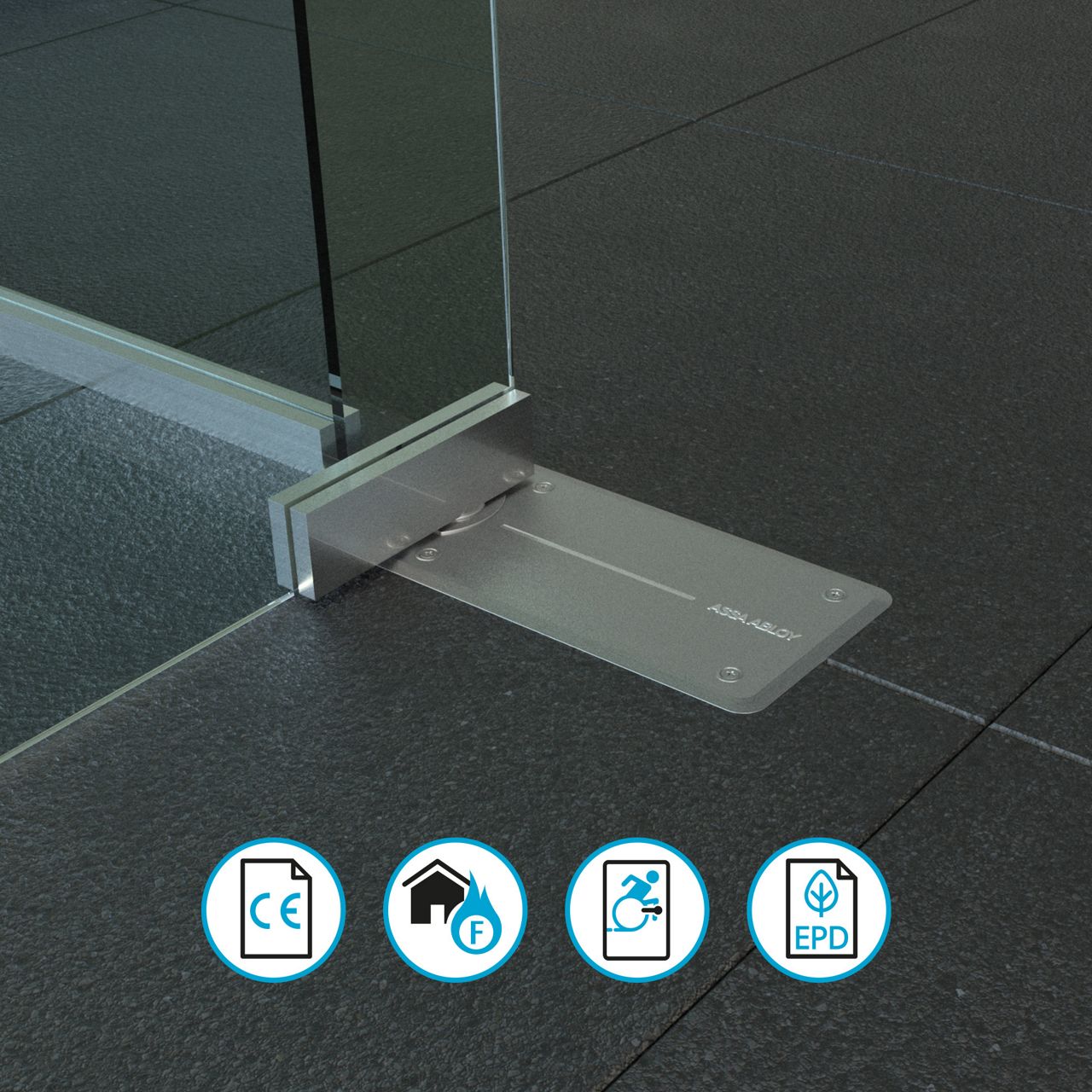

DC477 with satin stainless steel cover plate, installed on double action door
DC477 with satin stainless steel cover plate, installed on double action door

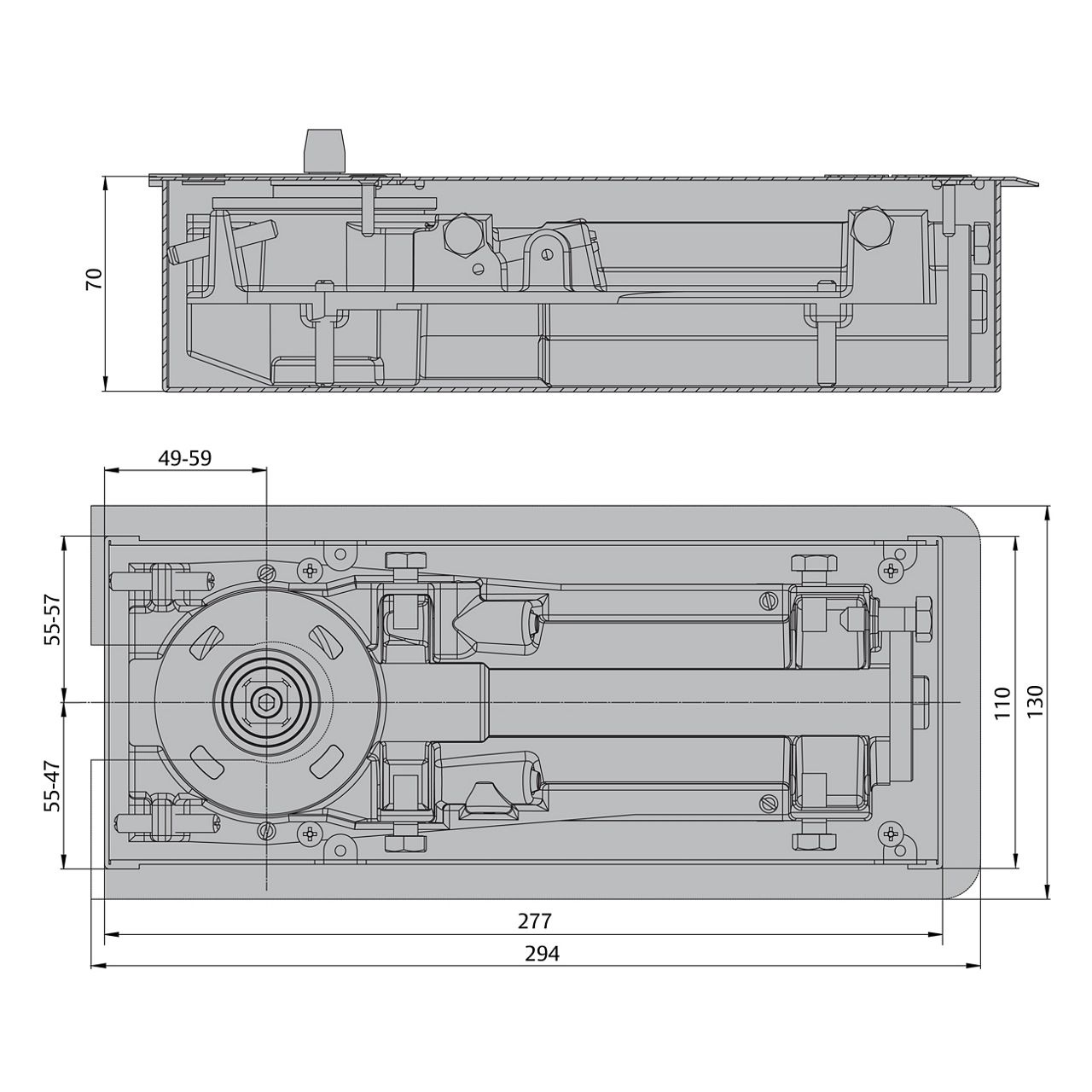

DC477, dimensions in mm
DC477, satin stainless steel

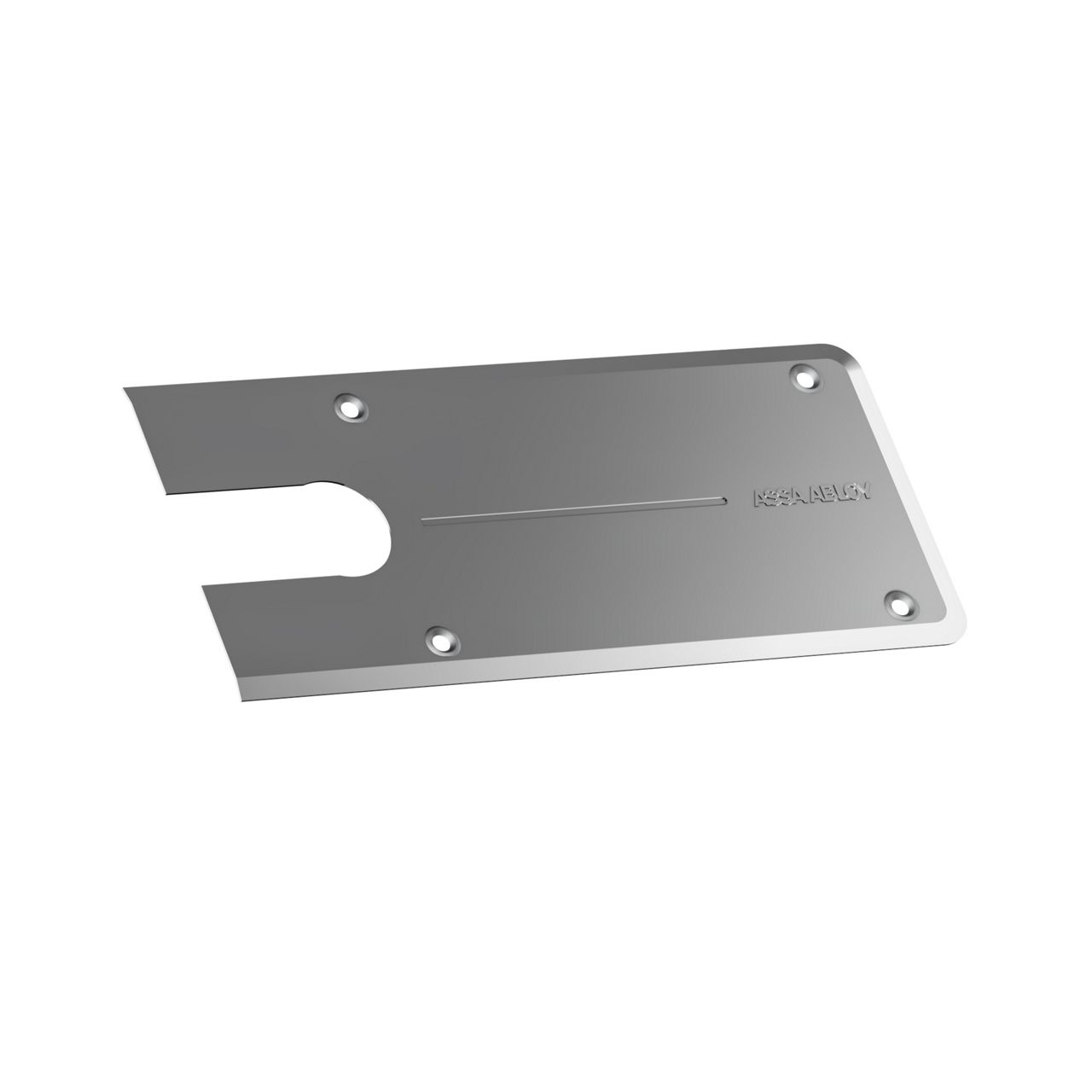

Cover plate CP534, satin stainless steel

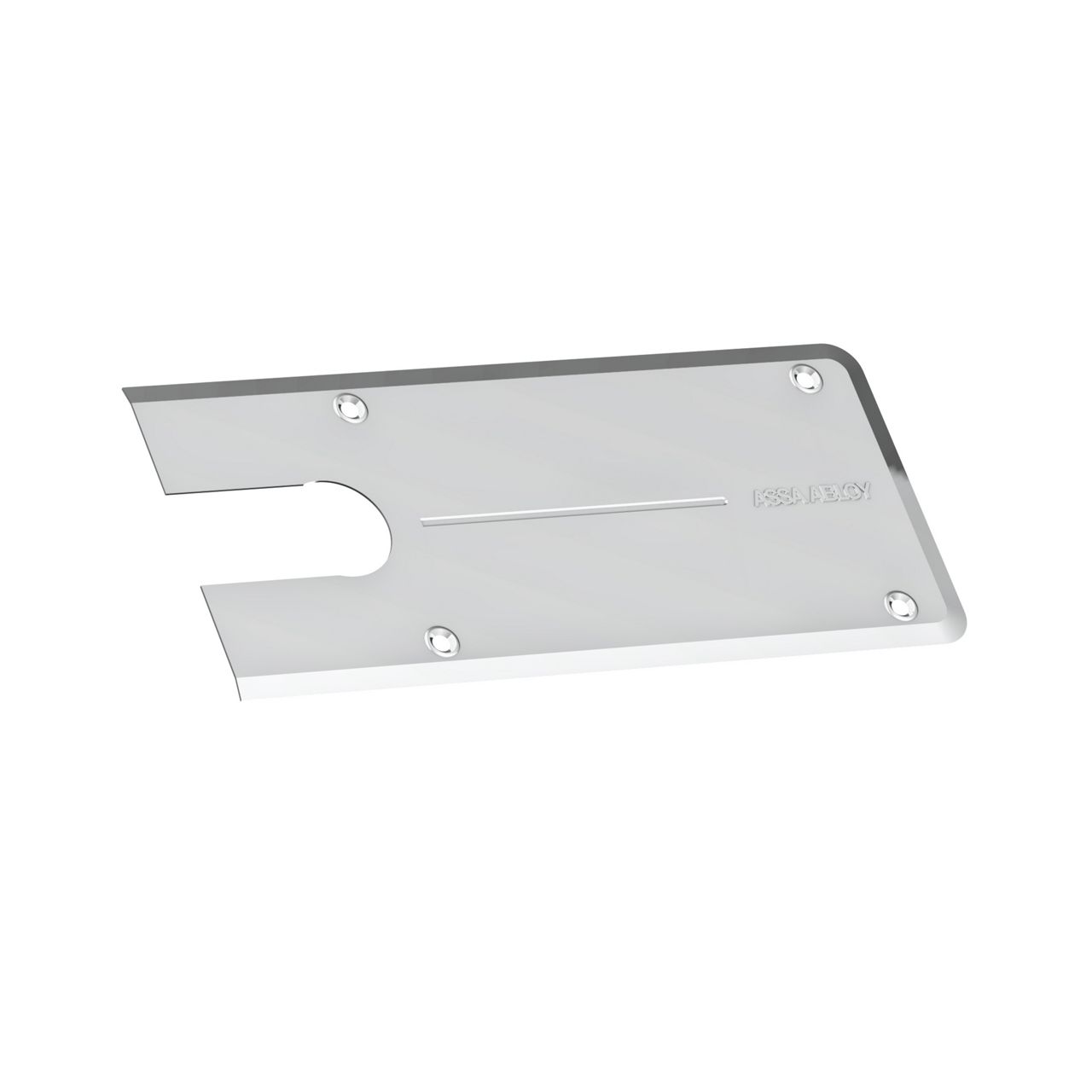

Cover plate CP534, polished stainless steel

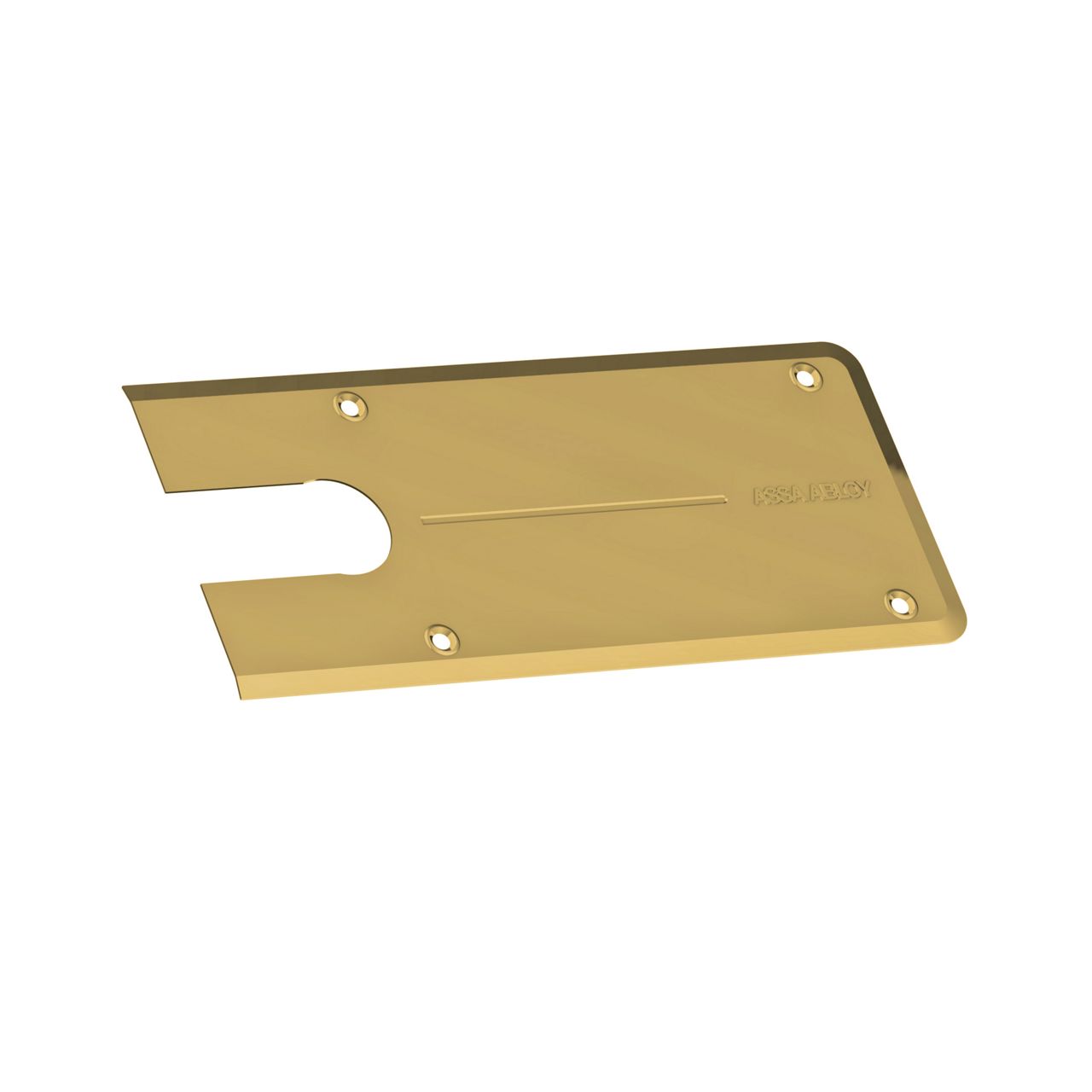

Cover plate CP534, polished brass
Independent adjustments
Closing and latch speeds can be raised and lowered independently, so closing performance matches the door’s use
Features
- Hydraulic control from 170° in both door swing directions allows for smooth and controlled door operation
- Closing and latch speeds can be raised and lowered independently via top-facing valves
- Overpressure relief valve protects the floor spring from misuse
- Zinc plated cement box allows for large adjustment range to fix any alignment problems without taking down the door
- Detatchable spindle in different lengths (0-30 mm) and variants allows flexible installation
- Consistent performance in a wide range of temperatures
Product variants
- Hold-open at 105° (cannot be used on fire doors)
- Hold-open at 90° (cannot be used on fire doors)
- Without hold-open
Accessories
- AC115 reversible bottom arm, Italian spindle
- AC393 reversible bottom arm, German spindle
- AC8 double action top pivot
- AC118 double action top pivot, adjustable pivot point
- AC375 double action top pivot, full steel, self-lubricating bushing
- AC583 right and left bottom arm, socket for Italian square spindle
- AC392 right and left bottom arm, socket for German rectangular spindle
- AC384 top pivot for left- or right-handed doors
- AC612 sealing compound for floor springs
- CP534 cover plate
- Hydraulic control from 170° in both door swing directions allows for smooth and controlled door operation
Installation instructions
Description Part number Type DC477, EN size 2-4, with hold-open at 105° DC477-------105 Floor spring DC477, EN size 2-4, with hold-open at 90° DC477--------90 Floor spring DC477, EN size 2-4, without hold-open DC477-------NHO Floor spring CP534 cover plate for DC477, polished stainless steel DCCP534----DPSS Cover plate CP534 cover plate for DC477, satin stainless steel DCCP534----DSSS Cover plate CP534 cover plate for DC477, polished brass DCCP534----DPBR Cover plate AC340 detachable Italian spindle, 0 mm, zinc plated MA0340S0 Spindle AC341 detachable Italian spindle, 5 mm, zinc plated MA0341S0 Spindle AC342 detachable Italian spindle, 10 mm, zinc plated MA0342S0 Spindle AC343 detachable Italian spindle, 15 mm, zinc plated MA0343S0 Spindle AC344 detachable Italian spindle, 20 mm, zinc plated MA0344S0 Spindle AC345 detachable Italian spindle, 25 mm, zinc plated MA0345S0 Spindle AC346 detachable Italian spindle, 30 mm, zinc plated MA0346S0 Spindle AC360 detachable German spindle, 0 mm, zinc plated MA0360S0 Spindle AC361 detachable German spindle, 5 mm, zinc plated MA0361S0 Spindle AC362 detachable German spindle, 10 mm, zinc plated MA0362S0 Spindle AC363 detachable German spindle, 15 mm, zinc plated MA0363S0 Spindle AC364 detachable German spindle, 20 mm, zinc plated MA0364S0 Spindle AC365 detachable German spindle, 25 mm, zinc plated MA0365S0 Spindle AC366 detachable German spindle, 30 mm, zinc plated MA0366S0 Spindle AC115 reversible bottom arm, steel, socket for Italian spindle MA0115S0 Accessory AC393 reversible bottom arm, steel, socket for German spindle MA0393S0 Accessory AC8 double action top pivot MA0008S0 Accessory AC375 double action top pivot, full steel, with self-lubricating bushing MA0375S0 Accessory AC118 double action top pivot, with adjustable pivot point MA0118S0 Accessory AC583 right and left bottom arm, steel, 36 mm offset, socket for Italian spindle, ABS cover silver DCAC583---DEV1- Accessory AC583 right and left bottom arm, steel, 36 mm offset, socket for Italian spindle, ABS cover black DCAC583---D9004 Accessory AC392 right and left bottom arm, steel, 36 mm offset, socket for German spindle, ABS cover silver DCAC392---DEV1- Accessory AC392 right and left bottom arm, steel, 36 mm offset, socket for German spindle, ABS cover black DCAC392---D9004 Accessory AC384 right and left top arm, full steel, 36 mm offset, ABS cover silver DCAC384---DEV1- Accessory AC384 right and left top arm, full steel, 36 mm offset, ABS cover black DCAC384---9004 Accessory AC612 sealing compound for floor springs MA0612S0 Accessory Name Value Closing force EN size 2-4 Maximum leaf width 1100 mm Maximum door weight 170 kg Closing speed (C) Variable between 170° and 15° Latch speed (L) Variable between 15° and 0° Overpressure relief valve Yes Hold-open mode 105° / 90° / without hold-open Maximum opening angle ~170° Handing Left- / right-handed or double action Force adjustment Yes Body adjustment within cement box 9 mm vertical | 4 mm side | 10 mm front | 4° angle Hinge distance 55 – 57 mm Corrosion resistance Grade 4 (240 hours) Dimensions (H x D x L) 70 x 110 x 277 mm Certified in compliance with EN 1154 CE classification 3 | 8 | 2-4 | 1 | 1 | 4 CE / UKCA mark Yes Suitable for fire and smoke protection doors Yes Barrier-free according to CEN/TR 15894 Third-party verified EPD ISO 14025, EN 15804
