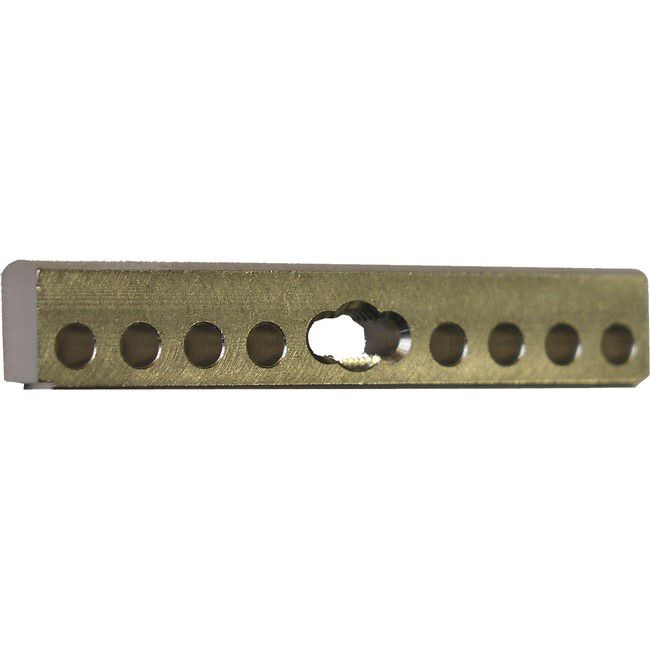

Cross beam VE02
Product description
- For EURO profile locking cylinder
- Available in different dimensions (ABM=) - ABM=230 to ABM=254 for profile double and knob cylinders - ABM=260 to ABM=263 for half cylinders
- Material: stainless steel
Scope of delivery
- 1 packing unit of 5 cross beams
Order number Product
V531 Profile-double cylinder VERSO®CLIQ
V551 Profile-double cylinder VERSO®CLIQ
V532 Profile-half cylinder VERSO®CLIQ
V534,KNF=1 Profile-knob cylinder VERSO®CLIQ
V534,KNF=2 Profile-knob cylinder VERSO®CLIQ
V534,KNF=7 Profile-knob cylinder VERSO®CLIQ
V534,KNF=9 Profile-knob cylinder VERSO®CLIQ
Article number ABM= (Dimension) Description= VE02 230 30+35 / 30+35 231 30+35 / 40+45 232 30+35 / 50+55 233 30+35 / 60+65 234 30+35 / 70+75 235 30+35 / 80+85 236 40+45 / 40+45 237 40+45 / 50+55 238 40+45 / 60+65 239 40+45 / 70+75 240 50+55 / 50+55 241 50+55 / 60+65 242 30+35 / 90+95 243 30+35 / 100+105 244 30+35 / 110+115 245 40+45 / 80+85 246 40+45 / 90+95 247 40+45 / 100+105 248 50+55 / 70+75 249 50+55 / 80+85 250 50+55 / 90+95 251 60+65 / 60+65 252 60+65 / 70+75 253 60+65 / 80+85 254 70+75 / 70+75 260 30+35 261 40+45 262 50+55 263 60+65 Downloads for Product
