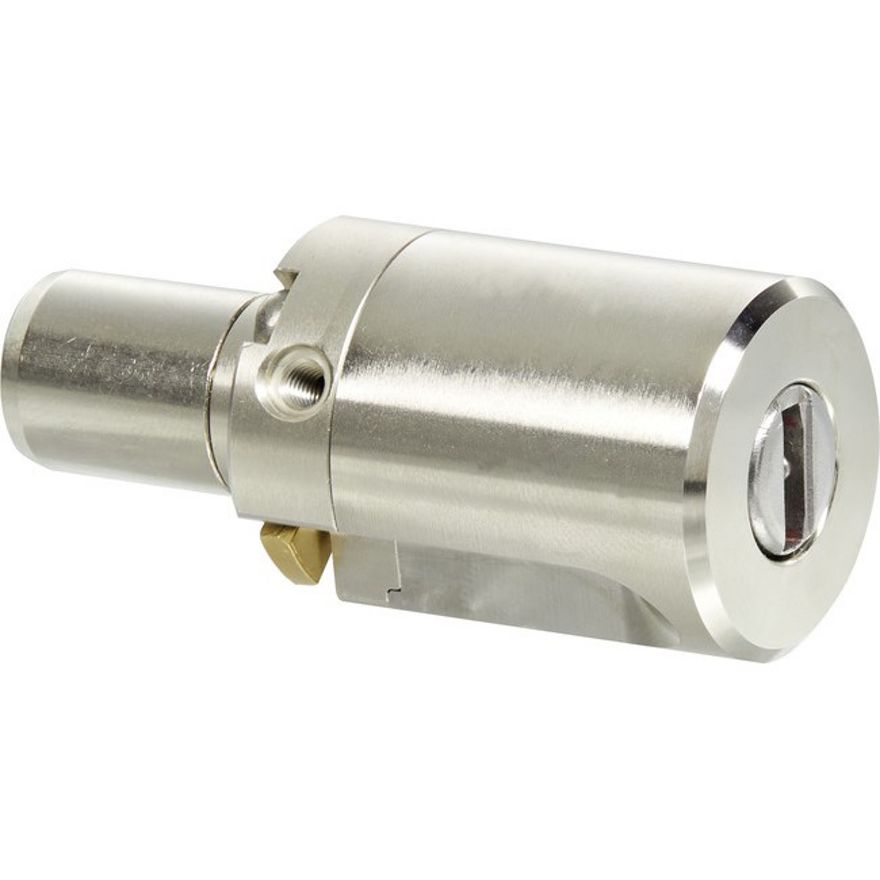

Push cylinder CLIQ® Go NC40,SERVICE=CLIQGo
Without key
Product description
- Available as electronical version (V=)
- Special cylinder for application in closing sleeves optimal for use in glas sliding doors e.g. in conjuction with KESO closing sleeves G.052
- Standard finish, satin nickel-plated (OF=MV)
- 22 mm diameter
- Available with 12, 18 or 22 mm hub (AUS=12, AUS=18, AUS=22)
- Maintenance-free for up to 200,000 cycles
- Splash-proof IP54
- Dust and rain cover available (SUR=1) IP55
Scope of delivery
- 1 pressure cylinder
Ordering Information
- The closing sleeve is not included
Order number Product
NE28 Spring guiding pin
NE27 Guide sleeve Z
NE30 Screw M3x3
NE26 Guide sleeve A
NE29 Pressure spring Article number OF= (Surface) AUS= (Version) V= (Version) NC40,SERVICE=CLIQGo MV (Matt, nickel-plated) 1 E (Electronic version)
Special identification marking
Description Info Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=) per side OF= Area of application Info MV For profile and locking lever cylinders per cylinder SUR= Area of application Description Info 0 Deviating from the standard cap per cylinder 1 For special cylinders per cylinder V= E D Downloads for Product
Certificates and attests
