ASSA ABLOY

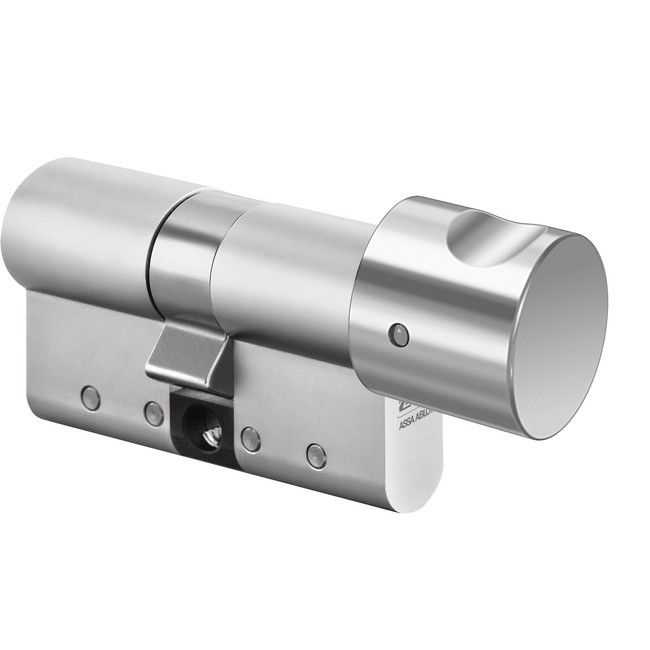

Profile-knob cylinder CLIQ® Go N534,KNF=9,SERVICE=CLIQGo

Knob with handle grip, anodised aluminium, 30 mm diameter - without key

Product description

  • Available as rotary secured or electronical version (V=)
  • Brass cylinder housing components
  • Standard finish, satin nickel-plated (OF=MV)
  • Standard knob colour nickel silver (KNF=9F2)
  • Basic cylinder length 61 mm (C) - A/B (L=30/30) - other installation lengths available - flexible modular system

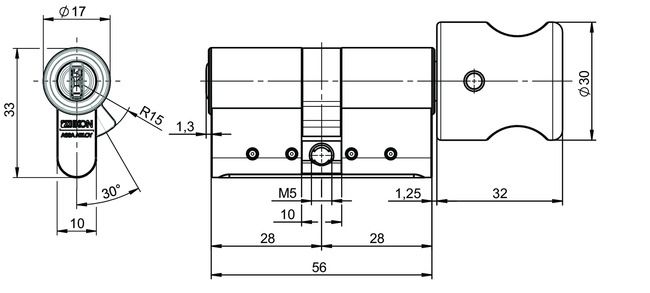

  • Optional, differing basic cylinder length of 56 mm (C) - A/B (L=28/28)
  • Standard locking cam position (SST=30°); differing locking bit position available, optionally available with SST=FLEX
  • Optionally with magnetic locking cam reset function (VAR=FS)

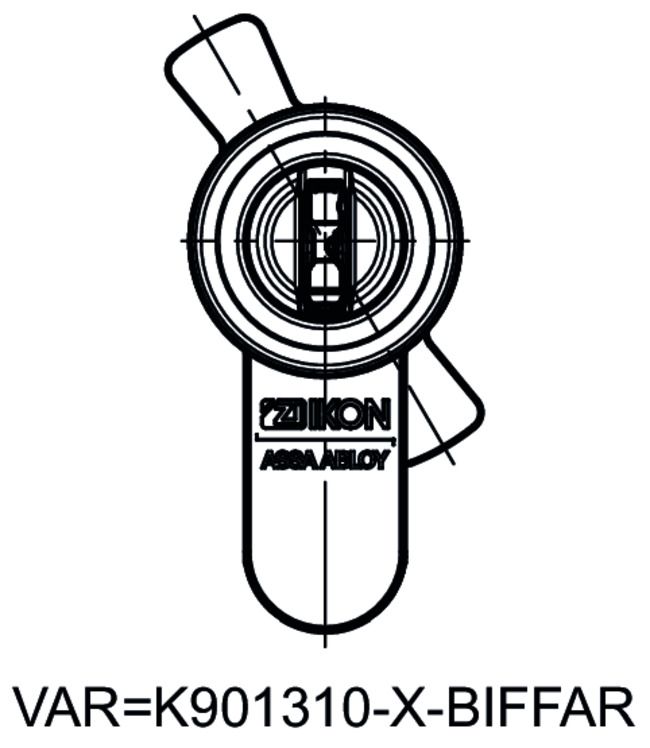

  • Optionally available with double locking cam (VAR=K901310-X-BIFFAR)
  • Optionally available with anti drilling protection class 2 (AB=2)
  • Cam made of break-proof, corrosion-resistant stainless steel
  • Maintenance-free for up to 200,000 cycles
  • Splash-proof IP54
  • Dust and rain cover for one side available (SUR=3) IP55
  • Optionally available with anti-killing spree function: With this function the knob is disengaged as the key is entering the cylinder on the other side (VAR=1901509+3+ENTKUPPL.)

Scope of delivery

  • 1 profile-knob cylinder
  • 1 cylinder fixing screw M5 x 85 mm

Ordering Information

  • The knob is always on the inside of the cylinder (B)
