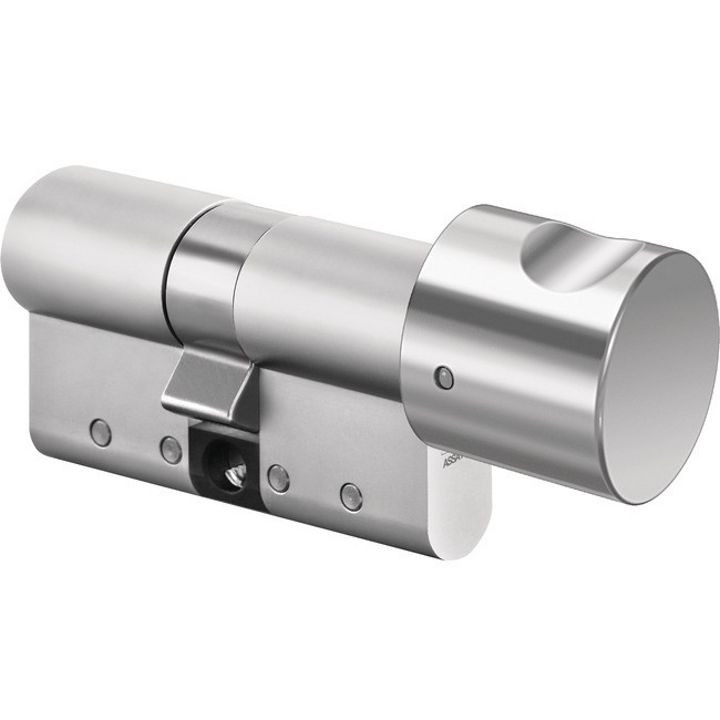

Profile-knob cylinder CLIQ® Go N534,KNF=1,SERVICE=CLIQGo
Round knob with handle grip, anodised aluminium, 42 mm diameter - without key
Product description
- Available as rotary secured or electronical version (V=)
- Brass cylinder housing components
- Standard finish, satin nickel-plated (OF=MV)
- Standard knob colour nickel silver (KNF=1F2)
- Basic cylinder length 61 mm (C) - A/B (L=30/30) - other installation lengths available - flexible modular system
- Optional, differing basic cylinder length of 56 mm (C) - A/B (L=28/28)
- Standard locking cam position (SST=30°); differing locking bit position available, optionally available with SST=FLEX
- Optionally with magnetic locking cam reset function (VAR=FS)
- Optionally available with double locking cam (VAR=K901310-X-BIFFAR)
- Optionally available with anti drilling protection class 2 (AB=2)
- Cam made of break-proof, corrosion-resistant stainless steel
- Maintenance-free for up to 200,000 cycles
- Splash-proof IP54
- Dust and rain cover for one side available (SUR=3) IP55
- Optionally available with anti-killing spree function: With this function the knob is disengaged as the key is entering the cylinder on the other side (VAR=1901509+3+ENTKUPPL.)
Scope of delivery
- 1 profile-knob cylinder
- 1 cylinder fixing screw M5 x 85 mm
Ordering Information
- The knob is always on the inside of the cylinder (B)
Order number Product
S403 Steel security fitting with cylinder cover - handle/handle
S406 Steel security fitting with cylinder cover - round knob/handle
S408 Steel security fitting with cylinder cover - angled knob/handle
S413 Steel security fitting with cylinder cover - handle/handle
S418 Steel security fitting with cylinder cover - angled knob/handle
S416 Steel security fitting with cylinder cover - round knob/handle
S423 Steel security fitting with cylinder cover - handle/handle
S426 Steel security fitting with cylinder cover - round knob/handle
S428 Steel security fitting with cylinder cover - angled knob/handle Order number Product
N109,V=E3,SERVICE=CLIQGo Key CLIQ® Go N109,V=B3,SERVICE=CLIQGo Key CLIQ® Go
N109,V=PE,SERVICE=CLIQGo Key CLIQ® Go Article number KNF= (Knob shape) OF= (Surface) L= (Length) V= (Version) N534,KNF=1,SERVICE=CLIQGo 1F2 (Round knob with recessed grip, nickel-silver finish, 42mm diameter) MV/MV (Matt, nickel-plated) 30/30 D (Rotary secured version) 1F2 (Round knob with recessed grip, nickel-silver finish, 42mm diameter) MV/MV (Matt, nickel-plated) 30/30 E (Electronic version)
Special identification marking
Description Info Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=) per side AB= Area of application Info 2 For profile knob, half and special cylinders per cylinder SZ= AB= Description Area of application Info DIN 2 DIN-tested profile cylinder For profile half and knob cylinders per cylinder OF= Area of application Info MV For profile and locking lever cylinders per cylinder MC For profile and locking lever cylinders per cylinder MP For profile and locking lever cylinders per cylinder MG For profile and locking lever cylinders per cylinder SUR= Area of application Description Info 0 Deviating from the standard cap per cylinder 3 For profile knob and double cylinder, double cylinder one side blind and half cylinder per cylinder Cam position and free wheeling function
SST= Description 90-270 90-270 degrees 270-90 270-90 degrees 270-0 270-0 degrees 0-90 0-90 degrees 180-90 180-90 degrees 270-180 270-180 degrees 135-180 135-180 degrees 135-225 135-225 degrees 90-180 90-180 degrees 180-270 180-270 degrees 270-30 270-30 degrees 330-90 330-90 degrees FZG Freewheeling cylinder for gear locks SST= Area of application Description K901179 Mul-T-Lock type Diameter 24 mm / Module 2 / 10 teeth K901180 VIRO/IKON .138 type Diameter 30 mm / Module 1,5 / 18 teeth K901293 Laperche type Diameter 24 mm / Module 1,5 / 14 teeth K901188 Italian type Diameter 27 mm / Module 1,5 / 16 teeth VAR= Description Area of application Info 1901509+3+ENTKUPPL “Anti-killing spree” cylinder with special coupling mechanism magnetic cam reset function For profile knob cylinders per cylinder FS Magnetic cam reset function For profile knob cylinders per cylinder K901310-X-BIFFAR Double cam with 2 outputs arranged 180° from each other For profile cylinder per cylinder Installation lengths of double and knob cylinders
=28/28
=28/30
=28/35
=28/40
=28/45=30/28
=30/30
=30/35
=30/40
=30/45
=30/50
=30/55
=30/60
=30/65
=30/70
=30/75
=30/80=35/28
=35/30
=35/35
=35/40
=35/45
=35/50
=35/55
=35/60
=35/65
=35/70=40/28
=40/30
=40/35
=40/40
=40/45
=40/50
=40/55
=40/60
=40/65
=40/70=45/28
=45/30
=45/35
=45/40
=45/45
=45/50
=45/55
=45/60
=45/65
=50/30
=50/35
=50/40
=50/45
=50/50
=50/55
=50/60
=55/30
=55/35
=55/40
=55/45
=55/50
=55/55
=60/30
=60/35
=60/40
=60/45
=60/50
=65/30
=65/35
=65/40
=65/45
=70/30
=70/35
=70/40
=75/30
=75/35
=80/30KNF= OF= Info 1F1 F1 1F2 F2 Standard 1F3 F3 1NIRO NIRO V= E D Downloads for Product
