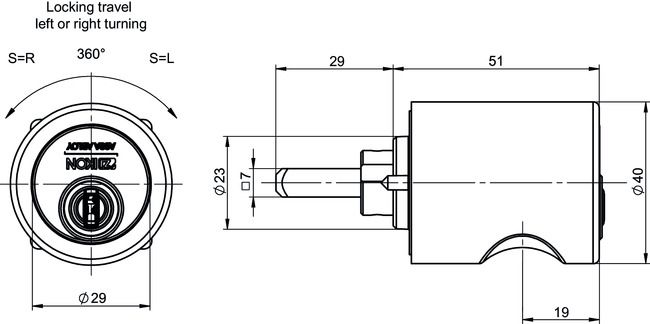

40 mm diameter - without key
Product description
Scope of delivery
| Order number | Product |
---|---|---|
8657 | Furniture espagnolette lock |
| Order number | Product |
---|---|---|
N109,V=PE,SERVICE=CLIQGo | Key CLIQ® Go |
Article number | FB= (Color) | S= (Side) | OF= (Surface) | V= (Version) |
---|---|---|---|---|
N186,SERVICE=CLIQGo | LGR (Light grey) | L (Left) | MV (Matt, nickel-plated) | D (Rotary secured version) |
LGR (Light grey) | R (Right) | MV (Matt, nickel-plated) | D (Rotary secured version) | |
LGR (Light grey) | L (Left) | MV (Matt, nickel-plated) | E (Electronic version) | |
LGR (Light grey) | R (Right) | MV (Matt, nickel-plated) | E (Electronic version) |
Special identification marking
Description | Info |
---|---|
Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=) | per side |
OF= | Area of application | Info |
---|---|---|
MV | For profile and locking lever cylinders | per cylinder |
SUR= | Area of application | Description | Info |
---|---|---|---|
0 | Deviating from the standard cap | per cylinder | |
1 | For special cylinders | per cylinder |
Housing colours for furniture olives
FB= | Description |
---|---|
BN | similar to RAL 8017 |
DBL | similar to RAL 5011 |
DGN | similar to RAL 6012 |
DRT | similar to RAL 3007 |
LGR | similar to RAL 7035 |
HGR | similar to RAL 9001 |
OL | similar to RAL 6022 |
RT | similar to RAL 3003 |
SW | similar to RAL 9005 |
WS | similar to RAL 9010 |
MV | metal |
V= |
---|
E |
D |
