Door Width
Up to 1150mm (refer to selection procedure)
Door Weight
Up to 120kg as standard
Door Thickness
Minimum for timber 32 mm
Door Control
Two independent adjustment valves provide full hydraulic control from 130˚ to 15˚ of closing and 15˚ to 0˚ of latching.
Door Frame Type
Timber/aluminium/steel
Non Hold-Open and Hold-Open Versions
Available in both non hold-open and hold-open versions. Mechanical hold-open 90˚ and 105˚ in separate units.
Door Adjustment
The Lockwood 8800 is positionally adjustable for a height of 4mm, a width of 10mm and a length of 9mm.
Additional Features
Interchangeable extended pivot inserts ranging from +5 to +35mm. This range will accommodate applications such as threshold, carpeted floors or situations where additional clearance between the door and floor are required. Universal off set pivot sets for flush closing single action door applications (SP844-30).
Pivot Door Sets
Suitable for door applications where a free swing pivot door is required. Consists of retractable top pivot set with heavy duty bottom pivot and strap. Suitable for aluminium,
glass and timber doors.
Finishes
- Stainless Steel SSS
- Gold GLD
- Polished Stainless Steel PSS
Other finishes on application.

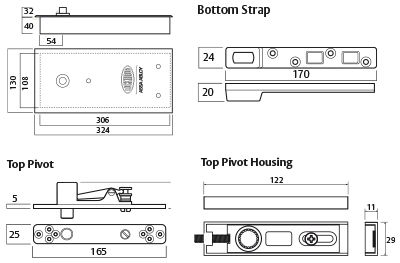

Dimensions
