ATEX
For use in explosion-prone areas

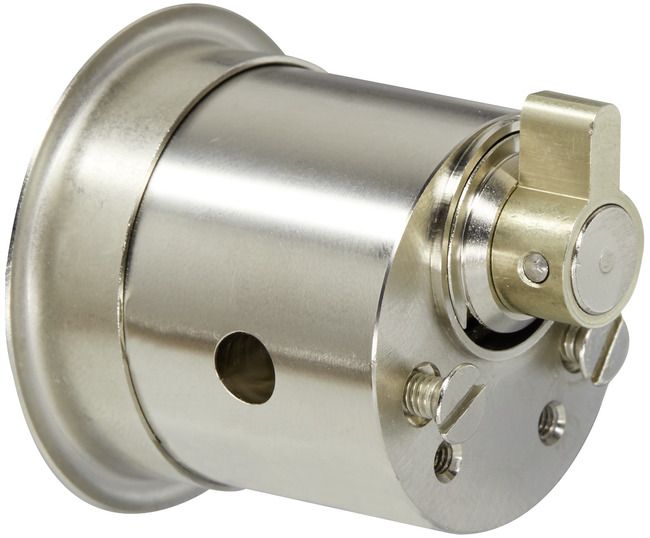

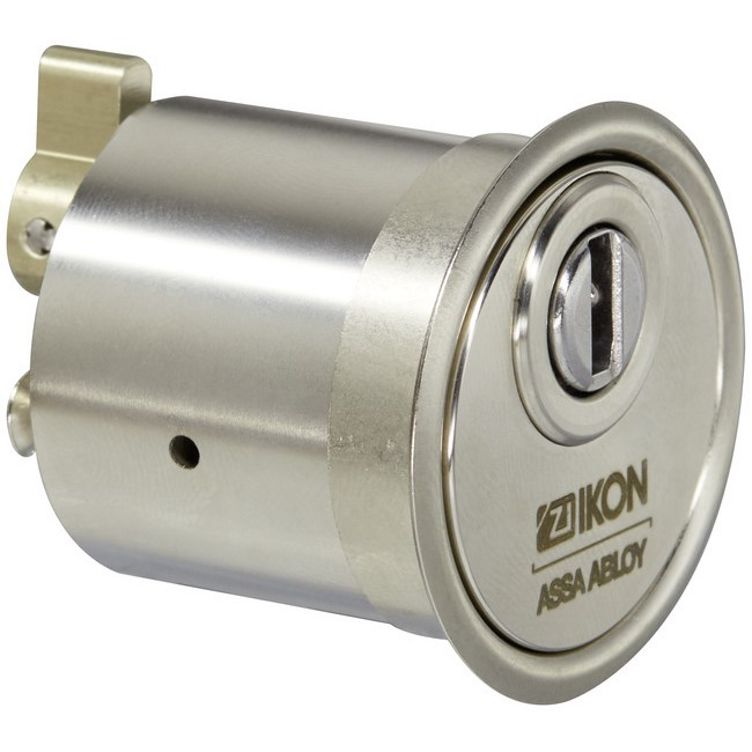

Furniture lock eCLIQ N577,AUS=2
With countersunk screws for furniture locks with screw variant - without key
Product description
- For furniture locks with screw design
- Available as rotary secured or electronical version (V=)
- Brass cylinder housing components
- Standard finish, satin nickel-plated (OF=MV)
- Tumbler elements with special wear-resistant alloy
- Basic cylinder length L=A 29.8 mm
- Maintenance-free for up to 200,000 cycles
- Optionally available for use in potentially-explosive atmospheres in Zone 1 (Ex II 2G) ATEX=II 2G Ex ib IIC T4 Gb
- Dust and rain cover available (SUR=1) IP55
Scope of delivery
- 1 furniture cylinder
- 1 Escutcheon (inside Ø 29 mm, outside Ø 30 mm, collar Ø 35.5 mm)
- 2 countersunk screws
Security Card
Article number V= (Version) N577,AUS=2 D (Rotary secured version) E (Electronic version) Special identification marking
Description Info Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=) per cylinder ATEX= Description Info II 2G Ex ib IIB T4 Gb Locking cylinders for Zone 1 hazardous areas per cylinder OF= Area of application Info MV For profile and locking lever cylinders per cylinder MC For profile and locking lever cylinders per cylinder MP For profile and locking lever cylinders per cylinder MG For profile and locking lever cylinders per cylinder SUR= Area of application Info 1 For special cylinders per cylinder V2= AUS3= Description Info OHNE AUDIT Cylinder without events list, frontal marking with symbol "§" per cylinder ONLINE Cylinder with function "Online Open", frontal marking with symbol "@" per cylinder SEQUENCE Cylinder with function "two-man rule", frontal marking with symbol "&" per cylinder Downloads for Product
