Multiple integration optionsMultiple integration options

Multiple integration options

Online, offline and/or OSS offline. Switching between them is possible without changing hardware

Works with your existing cardsWorks with your existing cards

Works with your existing cards

Compatibility with most RFID formats and mobile technologies (NFC and BLE).

Server rack optionServer rack option

Server rack option

Instant and secure access control for any server cabinet

Intelligent access cacheIntelligent access cache

Intelligent access cache

Storage of up to 1,000 accesses in case of communication interruption

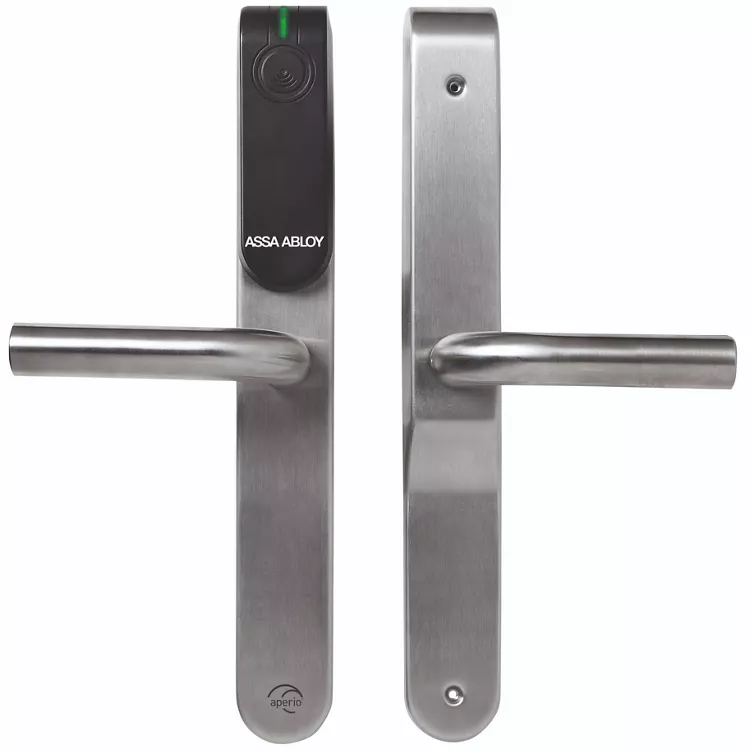

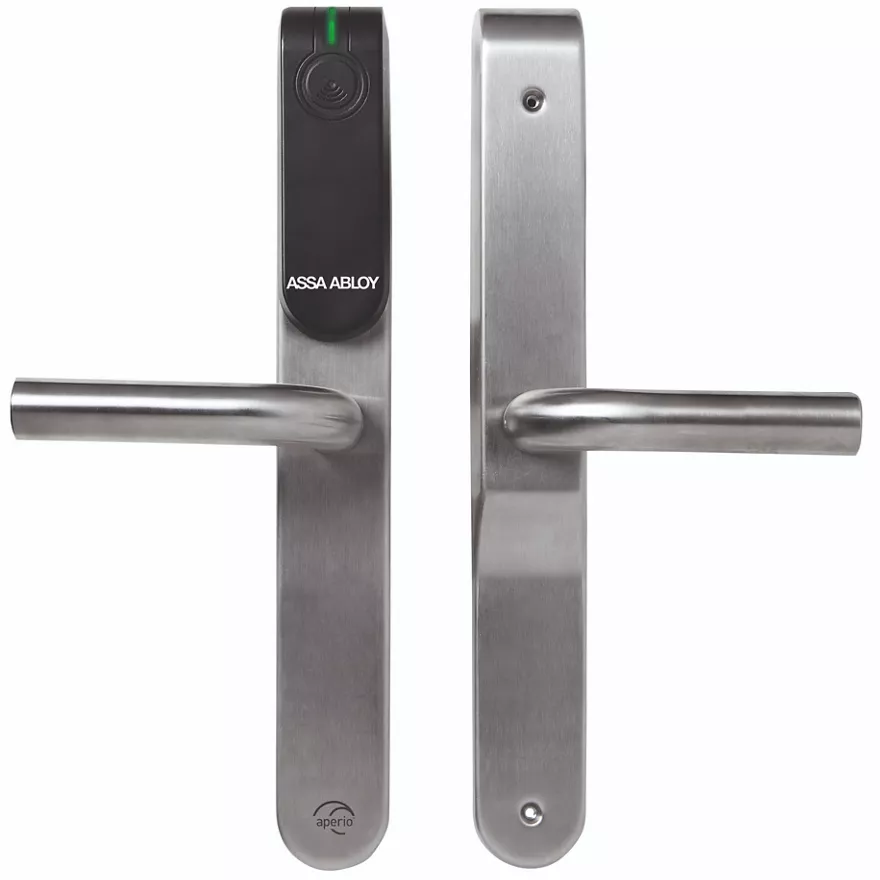

  • Function

    • The outer handle of the fitting rotates freely while the inner handle remains locked.
    • RFID, BLE and radio electronics are located in the outer handle. The electronics are located inside.
    • Aperio communication is between the fitting and the Hub. From there, communication to the electronic access system takes place using the Wiegand interface, the RS485 bus or the TCP/IP network.
    • Aperio E100 can work with an online system or as an offline fitting. This is decided during product initialization.
    • When connected online, communication takes place via communication hubs with your online access control system, where access decisions are made.
    • Other benefits of Aperio Online include real-time control over your door and immediate availability of audit records for each lock user.

    Optional or ACS dependent features

    • Aperio pin keypad fittings can also support Duress Code for added security if available with your specific integration. When the duress code is activated, a silent alarm is triggered in the security centre if the access authority holder uses their access card together with the duress code instead of their own PIN when threatened.

    Emergency access

    • Aperio fittings offer several smart memory options that allow emergency access in the event of a communication failure with the access control system.
    • Up to 1000 users can be granted access even when ACS is temporarily down.

    Reading technology

    • Aperio E100 is compatible with many RFID technologies, including iCLASS, iCLASS SE, iCLASS Seos, MIFARE Classic, Mifare Classic SE, Mifare Ultralight, Mifare Plus, Mifare DESFire 0.6, Mifare DESFire EV1, Mifare DESFire EV2, Mifare DESFire EV3 (EV2 and EV3 only in Legacy mode), Mifare DESFire SE, LEGIC® Advant, LEGIC® Prime, PicoPass, ISO 14443A UID, ISO 14443B UID, ISO 15693 UID.
    • Thanks to NFC and BLE (Bluetooth Low Energy), Aperio is also ready for mobile devices
