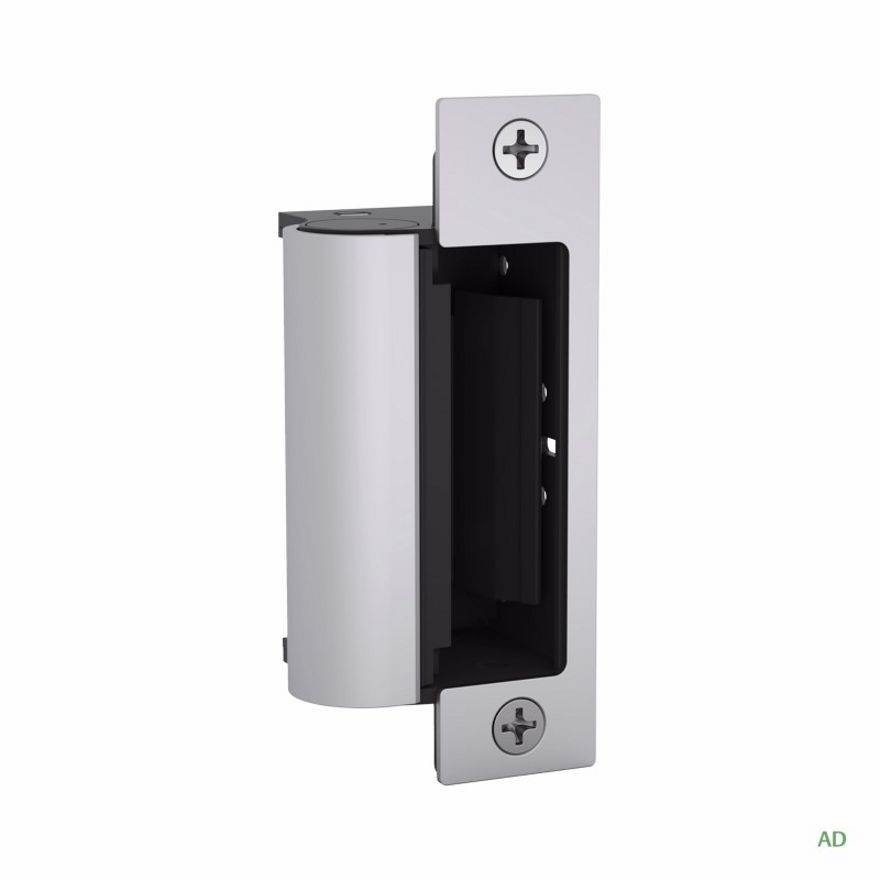

Heavy DutyHeavy Duty

Heavy Duty

Deadbolt RecaptureDeadbolt Recapture

Deadbolt Recapture

  • Application

    • Adjustability: Horizontal
    • Surface Mounting: Cutting required
    • Frame Material: Metal|Wood
    • Shim Type: Field Adjustable
    • Latchbolt Accommodation: 1/2" - 5/8"

    Electrical

    • Voltage: 12/24
    • Monitoring Installation: Factory Configured
    • Monitoring Options: Latchbolt Strike Monitor|Latchbolt Monitoring

    Strength & Durability

    • Endurance (cycles): 1,000,000
    • Dynamic Strength (ft-lbs): 350
    • Tamper Resistant: Yes
    • Fail Safe | Fail Secure: Fail Safe/ Fail Secure

    General Specifications

    • Warranty: SecuriCare five-year, no fault, no questions asked warranty
    • Lock Type: Cylindrical Lock|Mortise Lock

    Weights & Dimensions

    • Strike Body Depth (in): 1.6875
    • Strike Body Height (in): 3.4750
  • HTD Option Faceplate

    • For use with: Mortise locksets with a 1" deadbolt and no deadlatch or a center positioned deadlatch. Strike will not release when deadbolt is extended. Compatible locksets: Sargent (7700 & 8100), Schalge, Yale (8700)

    KM Option Faceplate

    • (4-7/8" x 1-1/4") For use with: Mortise locksets up to 3/4" throw latchbolt. Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon, Marks, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)

    HM Option Faceplate

    • For use with: Mortise locksets with a 1" deadbolt. Strike will not release when deadbolt is extended. Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon (45H, 47H, 34H & 37H), Marks, Omnia, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)

    HD Option Faceplate

    • For use with: Mortise locksets with a 1" deadbolt without a deadlatch. Strike will not release when deadbolt is extended. Compatible Locksets: Sargent (7700 & 8100 series), Yale (8700)

    K-2 Option Faceplate

    • For use with: Mortise locksets with a deadlatch positioned above the latchbolt, in wood frame applications. Compatible Locksets: Baldwin, Marks, PDQ, Others

    A-2 Option Faceplate

    • (9" x 1-3/8") For use with: Mortise locksets with a normally extended 1" deadbolt without a deadlatch, in wood frame applications. Compatible Locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Schlage, Yale, Others

    H Option Faceplate

    • For use with: Mortise locksets with a 1" deadbolt without a deadlatch. Strike will not release when deadbolt is extended. Compatible Locksets: Arrow, Baldwin, Marks, Omnia, PDQ, Others

    KD Option Faceplate

    • (4-7/8" x 1-1/4") For use with: Mortise locksets up to 3/4" throw latchbolt. Compatible locksets: Dorma 9500, Jackson, Sargent (7700 & 8100), Schlage, Yale (8700)

    H-2 Option Faceplate

    • For use with: Mortise locksets with a 1" deadbolt without a deadlatch, in wood frame applications. Strike will not release when deadbolt is extended. Compatible Locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Yale (8700).

    HT Option Faceplate

    • For use with: Mortise locksets with a 1" deadbolt without a deadlatch. Strike will not release when deadbolt is extended. Compatible Locksets: Sargent (7700 & 8100 series), Yale (8700)

    K Option Faceplate

    • (4-7/8" x 1-1/4") For use with Mortise locksets with a deadlatch positioned above the latchbolt. Compatible Locksets: Baldwin, Marks, PDQ, Others.

    E Option Faceplate

    • (4-7/8" x 1-1/4") For Use With: Corbin Russwin Security Bolt, Weiserbolt and normally extended 1" tubular deadbolts

    R Option Faceplate

    • For Use With: Adams Rite style hookbolt up to 1" throw

    Z Option Faceplate

    • For Use With: Unit and Mono locks

    J-2 Option Faceplate

    • For Use With: All cylindrical locks up to a 3/4" latchbolt

    N Option Faceplate

    • For use with: Mortise locksets where the deadbolt is used for night-latch function only. Compatible Locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Others

    NM Option Faceplate

    • (4-7/8" x 1-1/4") For use with: Mortise locksets with a deadbolt used for night latch function only. Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon (45H, 47H, 34H & 37H), Marks, Omina, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)

    T Option Faceplate

    • For use with: Mortise locksets with a normally extended 1" deadbolt and center-lined deadlatch. Compatible locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Schalge

    T-2 Option Faceplate

    • For use with: Mortise locksets where the deadbolt is used for night-latch function only, in wood frame applications. Compatible Locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Schlage, Yale (8700), Others

    DB Option Faceplate

    • Kit includes faceplates and brackets to make N and H series options

    KM-2 Option Faceplate

    • For Use With: Mortise locksets up to a 3/4" latchbolt

    ND Option Faceplate

    • (4-7/8" x 1-1/4") For use with: Mortise locksets with a deadbolt used for night latch function only. Compatible locksets: Sargent (7700 & 8100), Schlage, Yale (8700)
