Product description
To control electric locking systems in doors along escape routes; certified.

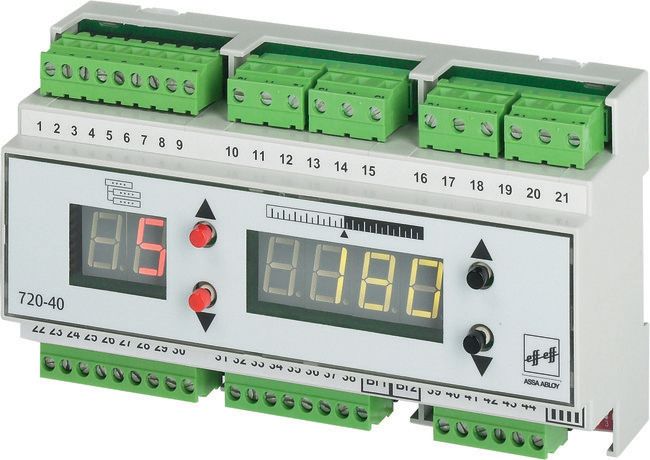

Escape door control module
- Can be connected to door terminals and operating components
- Can be connected to locking components
- Adjustable time period for max. continuous release, delay in continuous release, temporary release, pre-alarm, alarm interval, guidance signal,
- Monitoring of time door is open during temporary release.
- With 4 inputs featuring adjustable parameters for:
- Control of locking and unlocking, temporary release, alarm acknowledgement via a potential-free contact in operating devices, such as card readers and keypad units.
- Temporary release using an access control system, or
- Emergency release via fire alarm system, or
- Priority locking via burglar alarm system, or
- Unlocking via timer and many other systems
- With 4 relay outputs featuring adjustable parameters for:
- Door locked/unlocked, or
- Door open/closed, or
- Collective alarm, or individual alarm,
- Activation of electric strike/motorized lock/door automatics/arrestor system.
- TS bus interface for parameterisation using software (FT Manager) and networks for parallel operation of visual display software, panel and OPC server
- Connections: plug-in screw terminals
