Aperio E100 Escutcheon

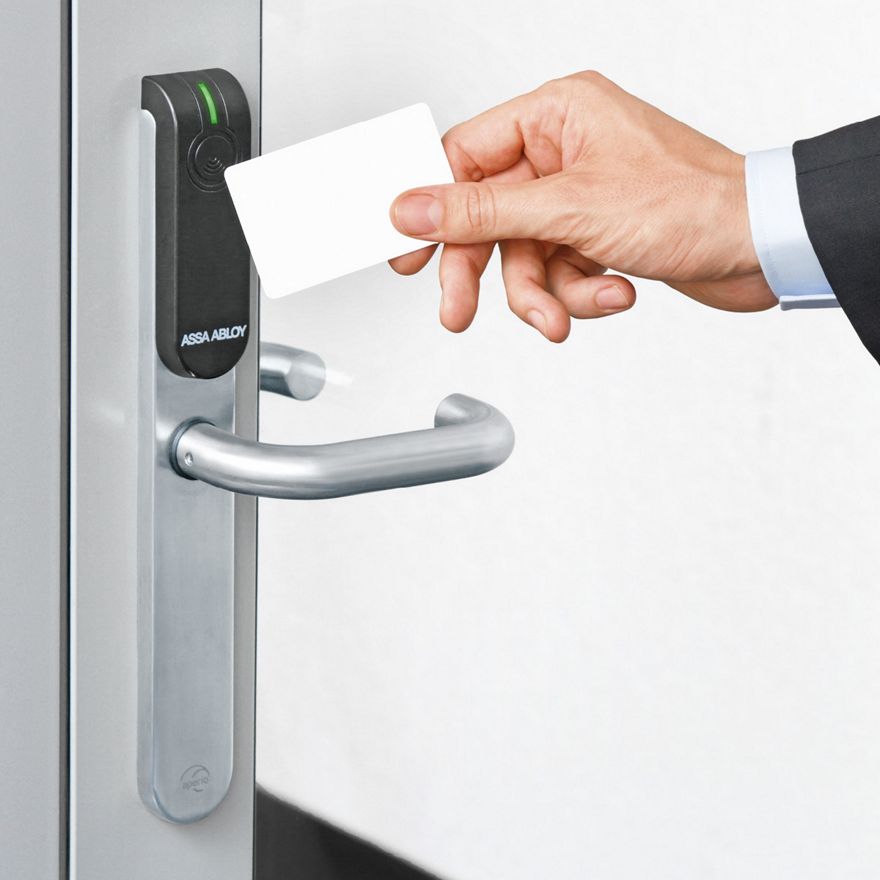

Easily integrate the Aperio E100 Electronic Escutcheon with your EAC system and secure your doors cable-free.  The Aperio E100 Escutcheon is a popular choice for internal doors receiving medium to high traffic.  These certified DIN/EN escutcheons offer a convenient combination of free exit from the inside with automatic locking on closure from outside. An inbuilt LED provides instant lock status visualisation.

Several versions available

The Aperio E100 escutcheon is available in Standard and Premium versions. Both with Privacy and PINpad options.

The Aperio E100 Premium Escutcheon complies with requirements for many types of buildings, including schools, stadiums and public institutions, where products must be certified to DIN or EN standards (DIN 18273; EN 179, 1906). It can be used with all European (DIN) mortice locks, in wooden, steel and tubular-framed doors. Ingress protection is certified as IP54.

The Aperio PINpad adds multi-factor authentication to the Aperio E100 Escutcheon. With the Aperio PINpad Escutcheon, administrators can set three different levels of authentication: PIN only, RFID only or PIN+RFID.

Achieve energy efficiency
As well as being quick and easy to install, Aperio escutcheons are cost-efficient to run, using standard batteries rather than an expensive, always-on mains connection demanded by wired access doors.
Several integration optionsSeveral integration options

Several integration options

Online, offline and/or OSS offline. Switching between them is possible without changing hardware

Works with your existing credentialsWorks with your existing credentials

Works with your existing credentials

Compatible with leading RFID credentials and mobile technologies (NFC and BLE)

Electronic privacyElectronic privacy

Electronic privacy

The optional privacy function allows the user to restrict access into the area

Smart credential cacheSmart credential cache

Smart credential cache

Up to 1000 users can be granted access even if the EAC is temporarily down
    • The escutcheon’s outside handle rotates freely, while the interior handle remains engaged.
    • RFID, BLE and radio electronics are housed in the exterior handle. Security-relevant electronics live on the inside.
    • Communications between escutcheon and hub, and from there to the electronic access system, are powered by Wiegand, RS485 bus of TCP/IPT network.
    • The Aperio Escutcheon offers several smart credential handling options to enable emergency access in case of a communications failure with the access control.
    • Up to 1,000 recently presented valid credentials can be cached automatically for up to 30 days, for user convenience and so the door may be opened without security administrator intervention.
    • Alternatively, the access control system can load, modify and delete credentials to the units for the same purpose with time limitation or permanently.
    • Aperio E100 can work with an online system or as an offline escutcheon. This is decided during the product initialisation.
    • When connected online, communication is via the communication hubs to the online access control system, where access decisions are made.
    • Additional advantages of Aperio Online management include real-time control over doors and the instant availability of audit trails for any lock or site user.
    • The Aperio PINpad Escutcheon can also support Duress Code function for added security, where available with your specific system integration.
    • With Duress Code enabled, a silent hold-up alarm triggers in the security centre if, in a threatening situation, a credential-holder uses their access card along with an attack code instead of her/his own PIN.
    • Optional: Electronic privacy button when pressed/enabled allows the user to restrict access into the area.  When engaged, the EAC may still grant access to specific users.
    • The Aperio E100 is compatible with multiple RFID technologies, including iCLASS®/ISO14443B, iCLASS®SE, Seos®, MIFARE®Classic, Plus EV1, DESFire EV1/EV2, SE and Legic®.
    • NFC and BLE (Bluetooth Low Energy) enabled, Aperio is also mobile ready
    Title 2
    • When connected online, communication is via the communication hubs to the online access control system, where access decisions are made.
    • Additional advantages of Aperio Online management include real-time control over doors and the instant availability of audit trails for any lock or site user.
    • The Aperio PINpad Escutcheon can also support Duress Code function for added security, where available with your specific system integration.
    • With Duress Code enabled, a silent hold-up alarm triggers in the security centre if, in a threatening situation, a credential-holder uses their access card along with an attack code instead of her/his own PIN.
    • Optional: Electronic privacy button when pressed/enabled allows the user to restrict access into the area.  When engaged, the EAC may still grant access to specific users.
    • The Aperio E100 is compatible with multiple RFID technologies, including iCLASS®/ISO14443B, iCLASS®SE, Seos®, MIFARE®Classic, Plus EV1, DESFire EV1/EV2, SE and Legic®.
    • NFC and BLE (Bluetooth Low Energy) enabled, Aperio is also mobile ready
