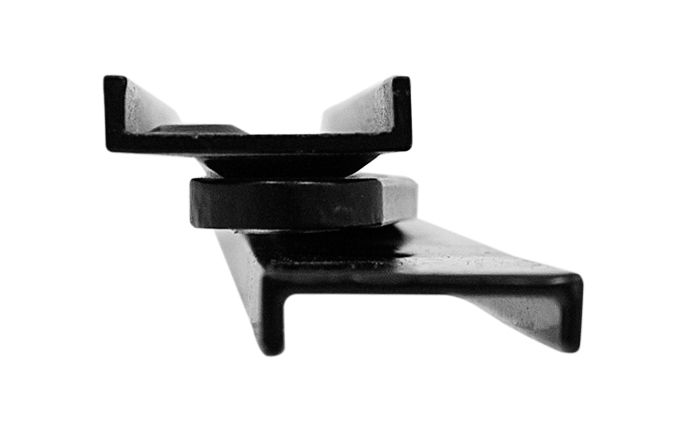

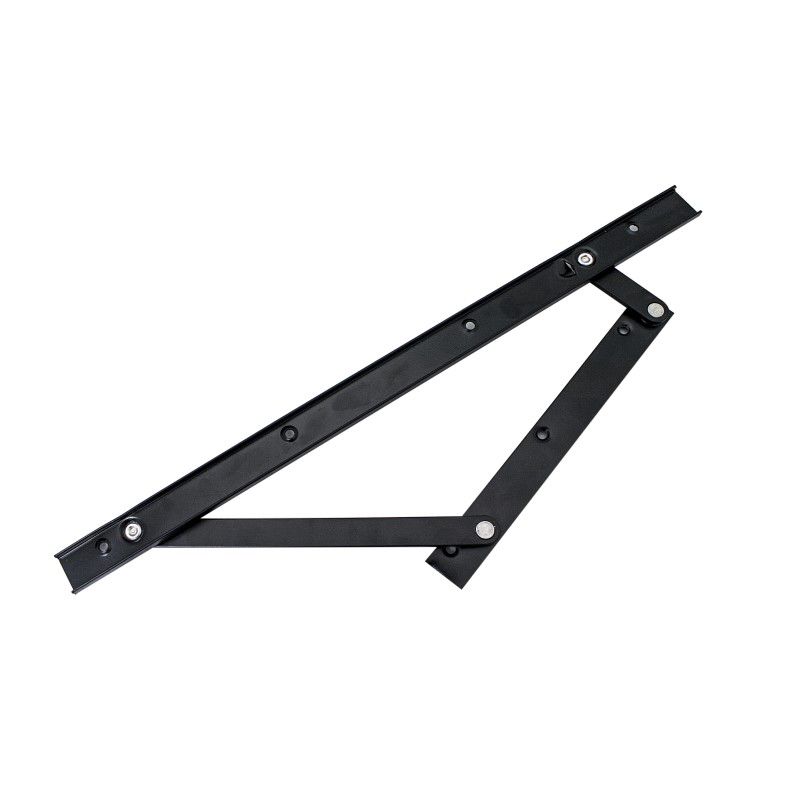

Interlock CHH Friction Stays
A complete range of 4-bar friction stays manufactured from extruded Aluminium. Used for residential applications, the CHH Stays have four sizes suitable for sashes up to 16kg.
A complete range of 4-bar friction stays manufactured from extruded Aluminium. Used for residential applications, the CHH Stays have four sizes suitable for sashes up to 16kg.
Features
- For retrofit applications
- Manufactured with the unique "pull-in" feature
- No sliding channels
- Factory set friction levels thus no on-site adjustment needed
Interlock CHH Friction Stays
Interlock CHH Friction Stays
Interlock CHH Friction Stays
Available in 4 sizes, designated by the frame plate length, catering for top hung sashes up to 1200mm in height and weighing up to 16kg. Designed to fit cavity 30 ±1mm X 20 ±1mm
Part Number Description Length Max Sash Height Opening Angle Max Sash Weight P362B
240 CHH Std Friction Stay
240mm
800mm
40°
8kg
P363B
330 CHH Std Friction Stay
330mm
1000mm
38°
10kg
P364B
430 CHH Std Friction Stay
430mm
1200mm
28°
16kg
P568B
440 CHH HD Stay
435mm
1200mm
20°
16kg
Fixing Surfaces
- Timber
- Metal
Finish
- Black
- Powdercoated
- Aluminium
