Lampo is a rim panic exit device suitable for single and double leaf metal doors.
It is certified according to EN 1125 for mechanical panic devices for emergency exits along escape routes.
It comes with a half cylinder included that enables/disables the external handle.
Versions:
- Mechanical modular (for 1, 2 or 3 locking points) right or left (Lampo)

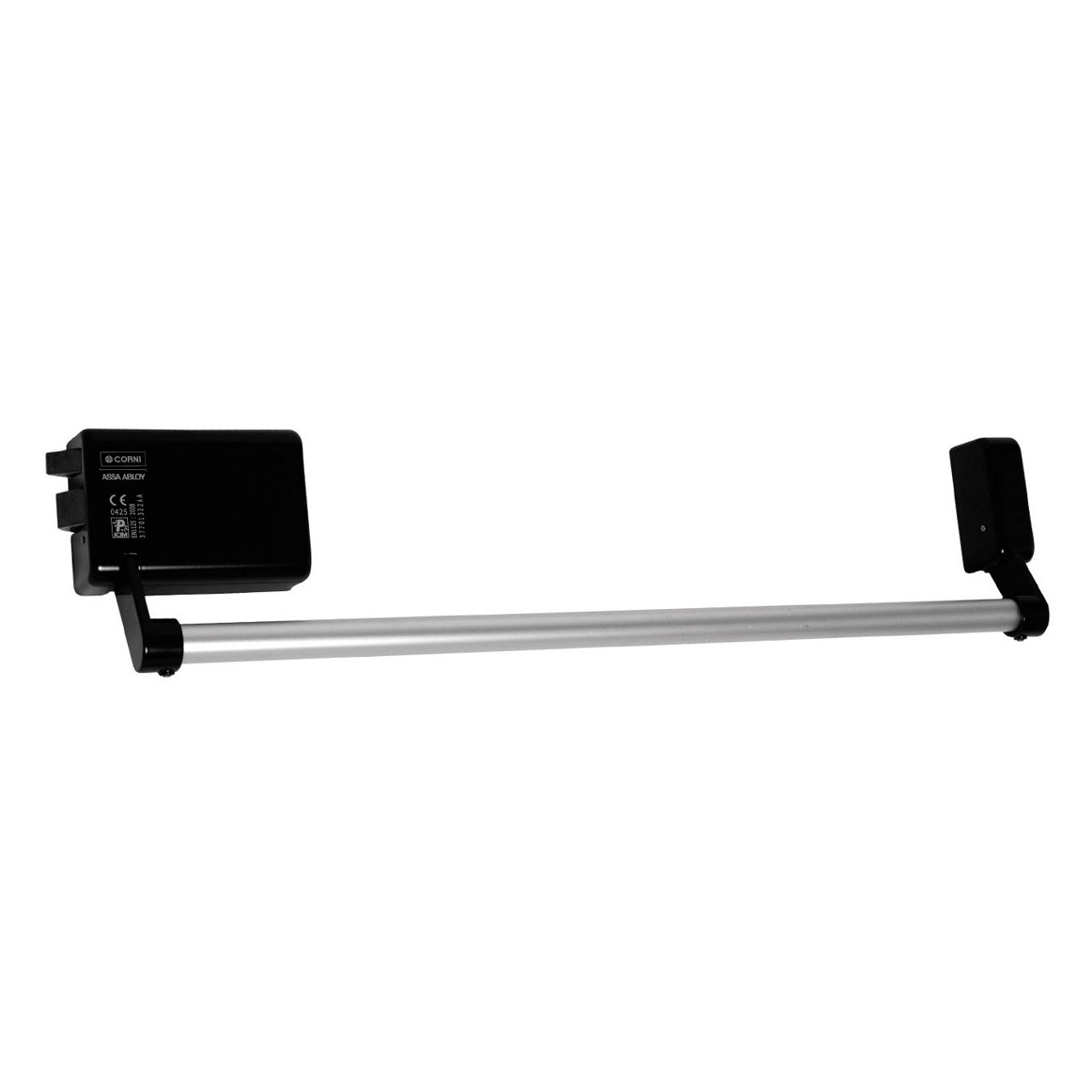

- Electric single point (right or left) for remote opening (Elettrolampo)
Finishes: Black
Finishes
Black
Lampo
Lampo
Elettrolampo
Installation Left or right version Modular Lampo - For 1, 2 ore 3 locking points
Elettrolampo - For a single locking pointSuitable for fire/smoke rated doors Yes EN 1125 CE Certificate Yes, for doors with weight over 200 kg, height not higher than 2520 mm and width not bigger than 1320 mm Profile machining required Same profile machining required by a standard lock (backset 70 mm) Voltage (only for Elettrolampo) 12 V AC Cover material Aluminium Half cylinder (included) - Euro-profiled cylinder - F160 series
- Oval cylinder - F150 series
Bar (to be ordered separately) Available in varnished steel or anodized aluminium and in different finishes Available accessories to be ordered separately: - Latches kits
- Rods and upper extension rods
- External handle
Technical drawings
Environmental Product Declarations (EPD)
