Composit New is a rim panic exit device suitable for double leaf fire rated doors also with ideal size for retrofit.
It is certified according to EN 1125 for mechanical panic devices for emergency exits along escape routes.
Versions:
Also available in models:
Finishes:
Black
Grey
White
Gold
Stainless steel

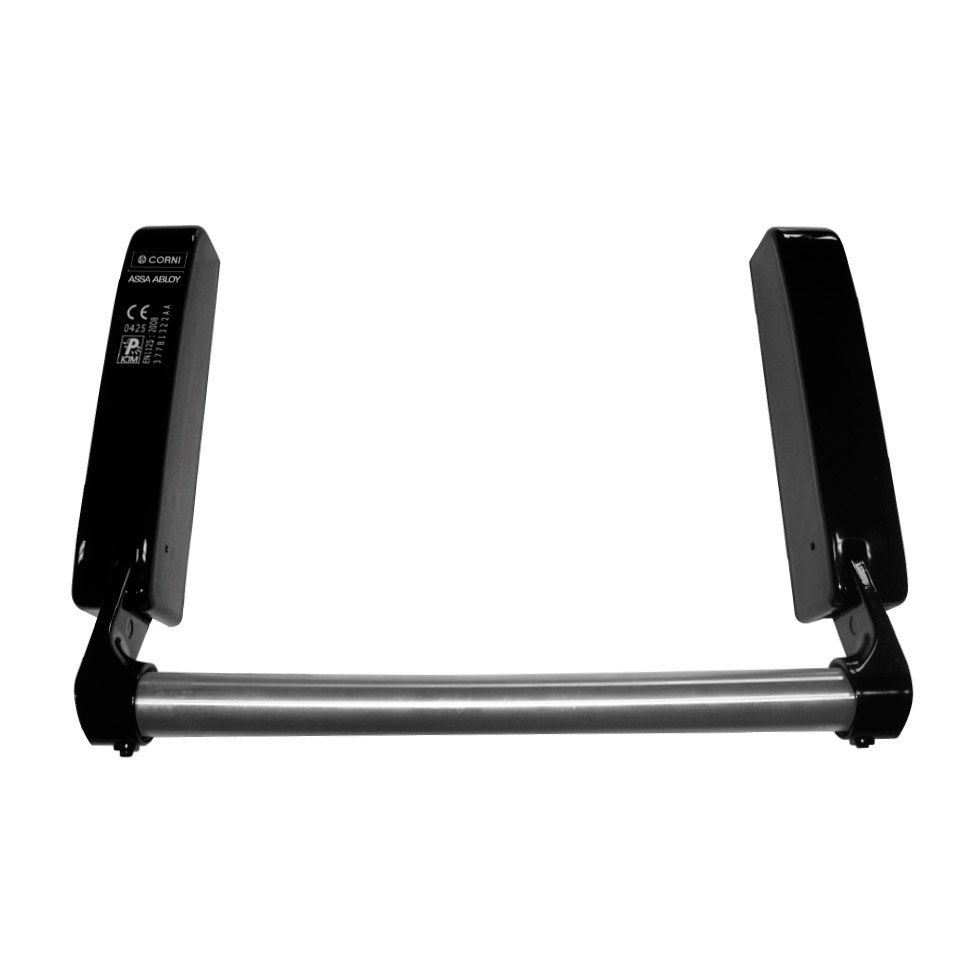

Black version with stainless steel bar
Black version with stainless steel bar

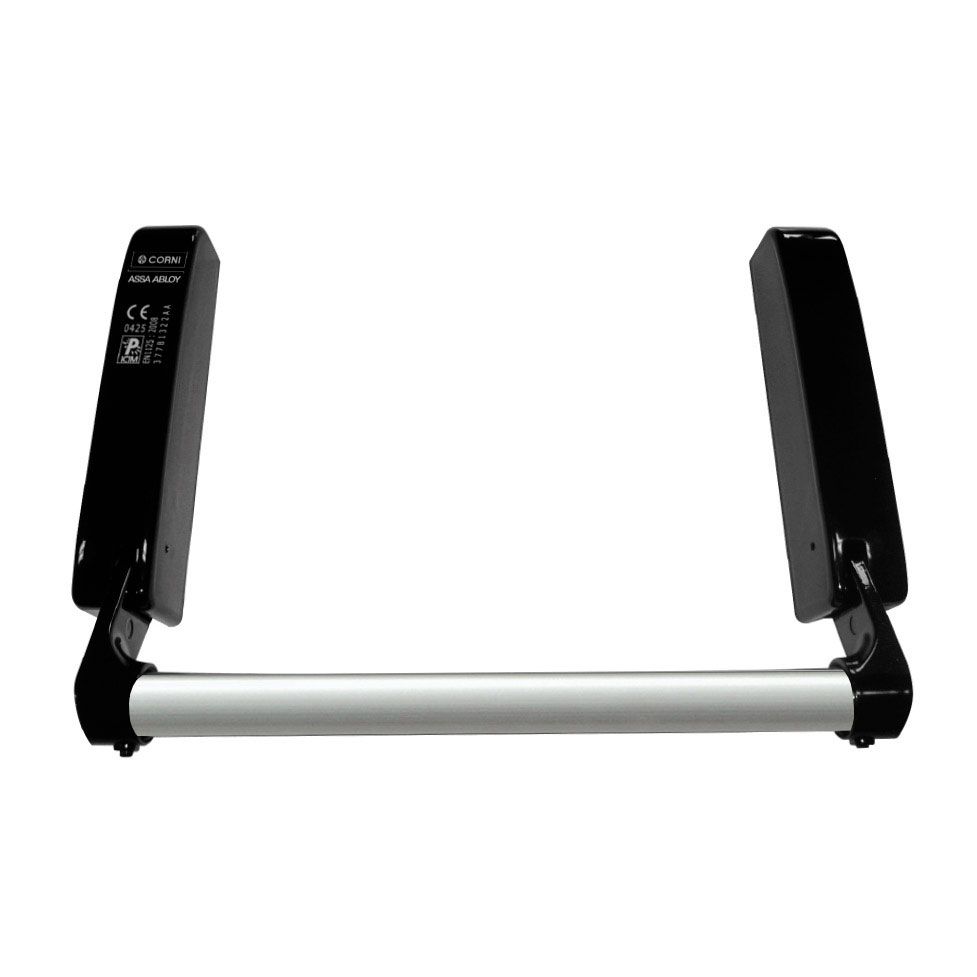

Black version with anodized bar
Installation | Reversible For double leaf fire rated doors |
Modular | For 1, 2 or 3 locking points |
Suitable for fire/smoke rated doors | Yes |
EN 1125 CE Certificate | Yes |
DoP | Yes, for up to 3500 mm height installation only |
Width | 36 mm |
Height | 205 mm |
Half cylinders |
|
Bar (to be ordered separately) | Available in varnished stainless steel or anodized aluminium and in different finishes |
Available accessories to be ordered separately: |
|
