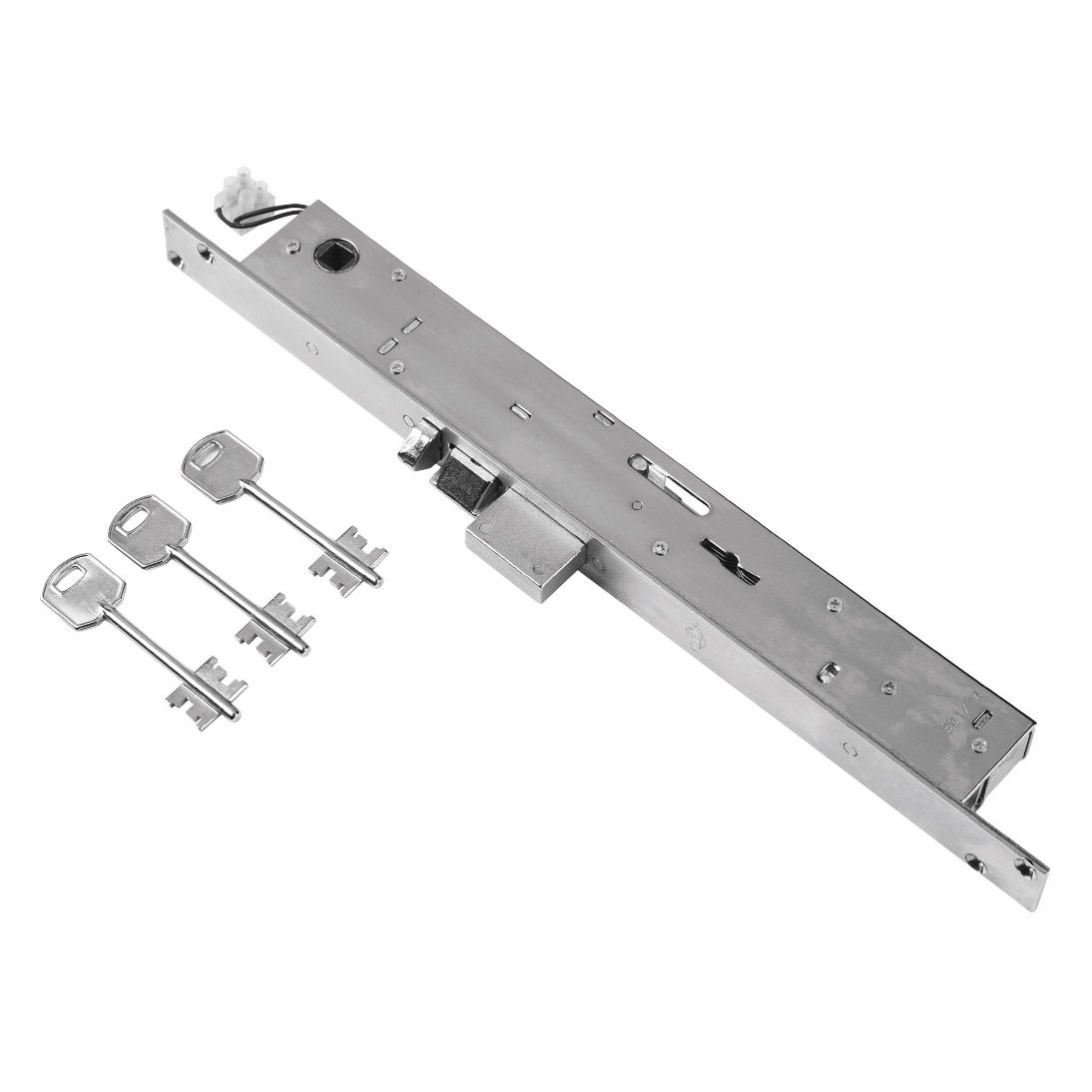

F67 - Electrical double bitted narrow stile locks with 1 locking point
The F67 electrical narrow stile mortise locks have a single central locking point and a double bitted mechanism, with a 2-way deadbolt.
They are a reversible model, which can be used on both right-hand and left-hand doors.
They are available in latch and deadbolt version.
Finish: Stainless steel
Finishes
Stainless steel
Type of lock Electrical double bitted narrow stile mortise lock for aluminium doors Versions With latch and deadbolt Locking points 1 central Reversible Yes (for right-hand and left-hand doors) Deadbolt ways 2 Backset 23 mm Distance from face plate to handle hole 27 mm Distance 170 mm Lenght 295 mm Width 40 mm Face plate width 25 mm Handle hole 8 mm Power supply 12V AC Face plate
Stainless steel material Finish Stainless steel No. of keys included 3 Technical drawings
