D81 - Narrow stile mortise lock with hook bolt
D81 narrow stile mortise locks have a cylinder locking mechanism (compatible with Euro-profile or cross key cylinders) and are designed for mortise installation on aluminium doors.
They have a swinging or hook bolt and a reversible design for use on right and left-handed doors. They are available in 25 to 35 mm backset sizes and come with a flat face plate cover.
They are available in different versions to suit different locking requirements:
- with latch and bolt and upper and lower deadbolt engagement points (provision for 3 locking points);
- with latch and bolt only (1 locking point);
- with hook bolt and upper and lower bolt engagement points (provision for 3 locking points);
- with hook bolt only (1 locking point);
In the latch and deadbolt version, the latch can be replaced with a roller (the two accessories are interchangeable) or the latch can be removed and the model converted to a standard deadbolt-only version by occluding the hole with the cap provided. The depth of the latch and roller are adjustable.
The D81 lock's latch has a Comfort system that not only reduces the noise of the door closing, but also limits wear on the striking plate and minimises friction.
Finish: Galvanised steel (lock) - Stainless steel (face plate cover)
Finishes
Galvanised steel (lock)
Stainless steel (face plate)

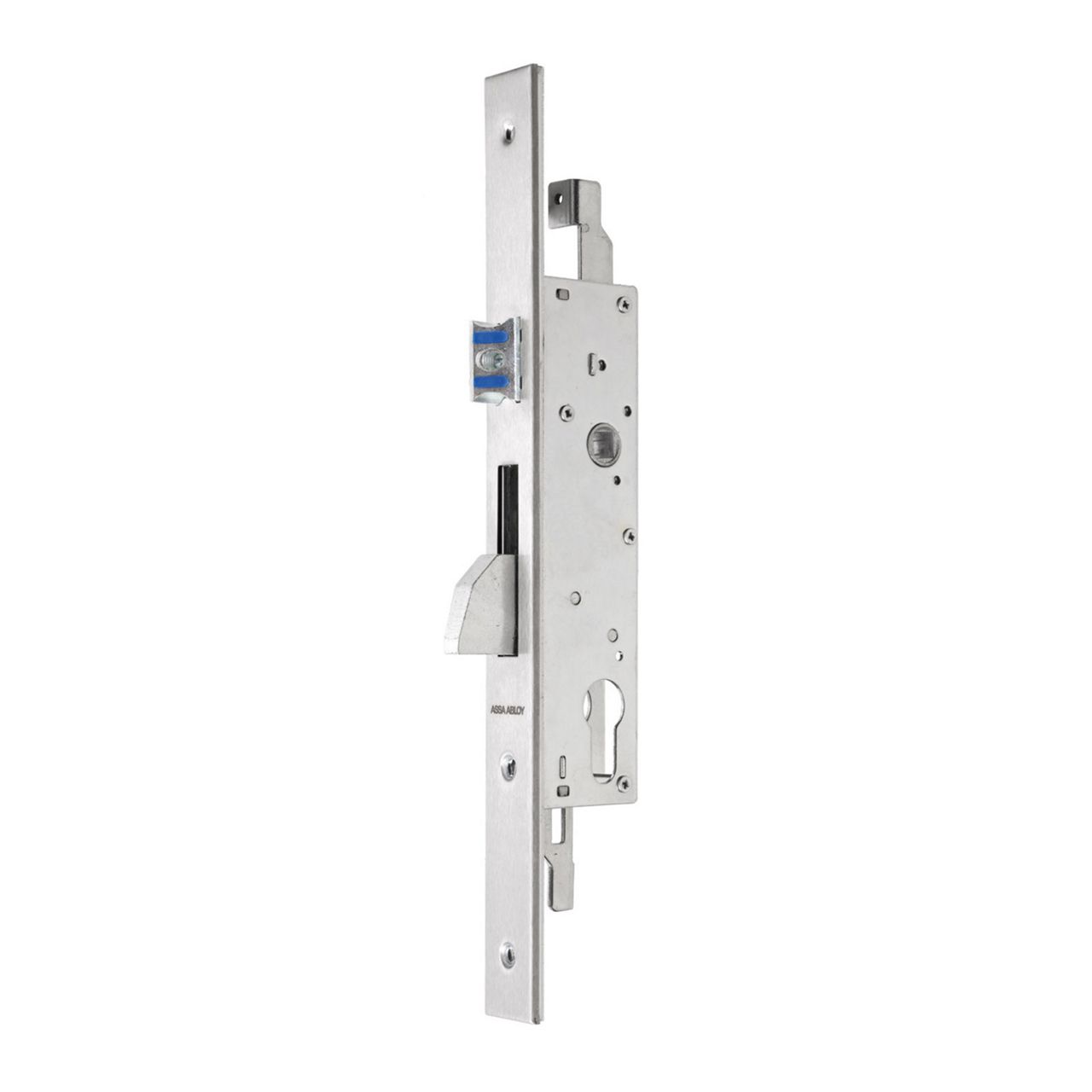

Latch and bolt
Latch and bolt

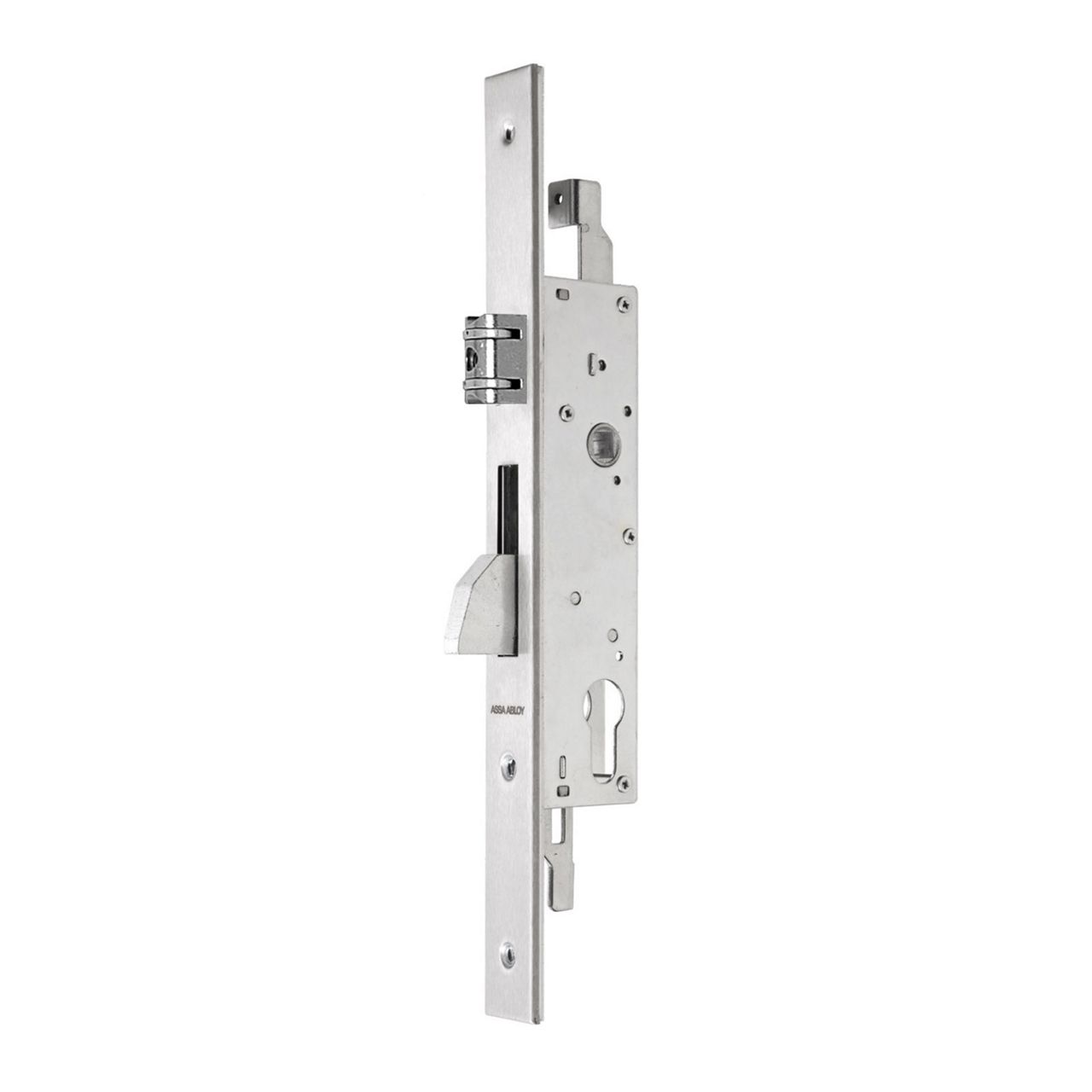

Roller and bolt

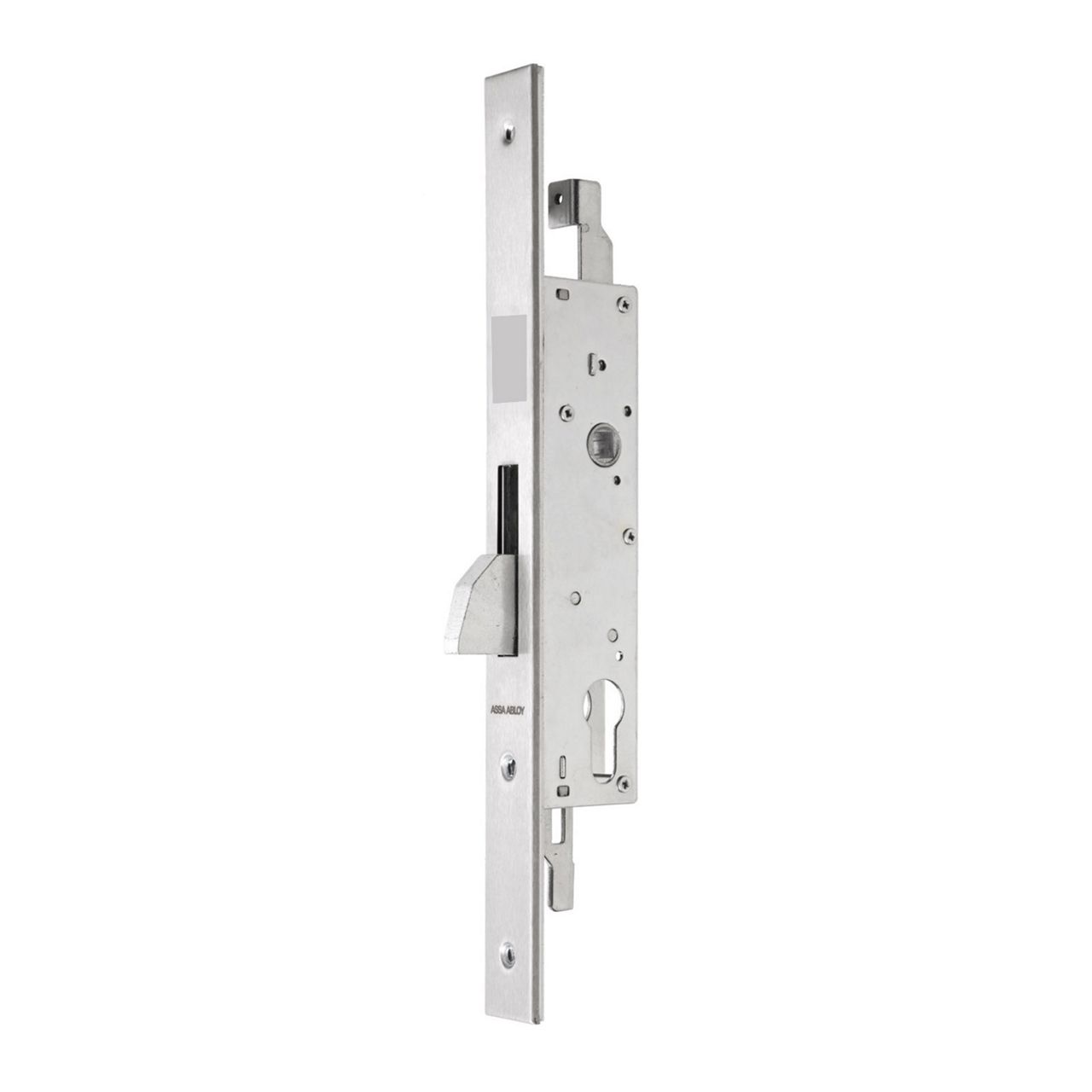

Hook bolt only
Bolt only
Type of lock Narrow stile mortise lock for aluminium doors designed for Euro-profile and cross key cylinders Versions - with latch and bolt and upper and lower deadbolt engagement points;
- with latch and bolt only;
- with hook bolt and upper and lower bolt engagement points;
- with hook bolt only.
Locking points - 3 (versions with return rods)
- 1 (versions without return rods)
Reversible Yes (for right-hand and left-hand doors) Compatible cylinders DIN standard cylinders | Cross key 6808 Series cylinders Backset 25 mm | 30 mm | 35 mm Distance 85 mm (latch versions only) Lenght 40 mm | 45 mm | 50 mm | 55 mm Face plate width 22 mm | 25 mm (versions with return rods only) Face plate depth 3 mm Handle hole 8 mm (latch versions only) Silenced latch The Comfort system reduces the noise of the door closing and limits wear on the striking plate and minimises friction. Provision for latch replacement with roller Yes Latch depth adjustment From 10 to 15 mm Roller depth adjustment From 6 to 13 mm Installation Slots for easy mounting of internal/external return rods Face plate cover Included | Flat | Stainless steel material Lock finish Galvanised steel Certification EN 12209 standard (voluntary certification) Brochures
