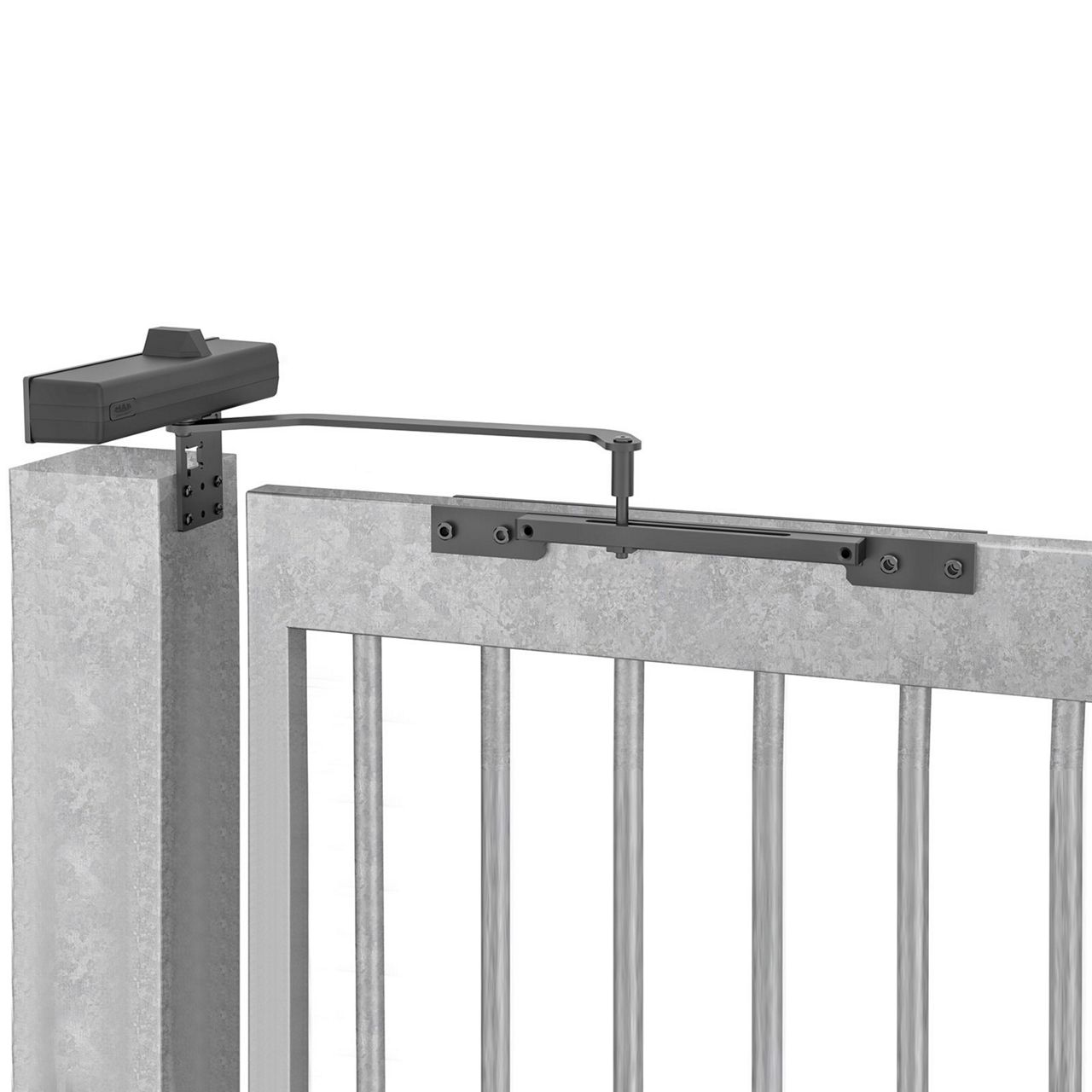

The 680G Series is a gate closer with sliding arm suitable for non-paneled gates with or without protruding bars with width up to 1400 mm.
It has adjustable closing force EN 1-3 accoding to EN 1154 standards and two closing speeds independently controlled by two different thermostatic valves. it also has pinch free sliding arm and rail for safe use.
It's extremely easy to install (no welding is needed) and it's equipped with all mounting screws and accessories. Coated with strong resistance corrosion paint.
Finishes: Silver - White - Black

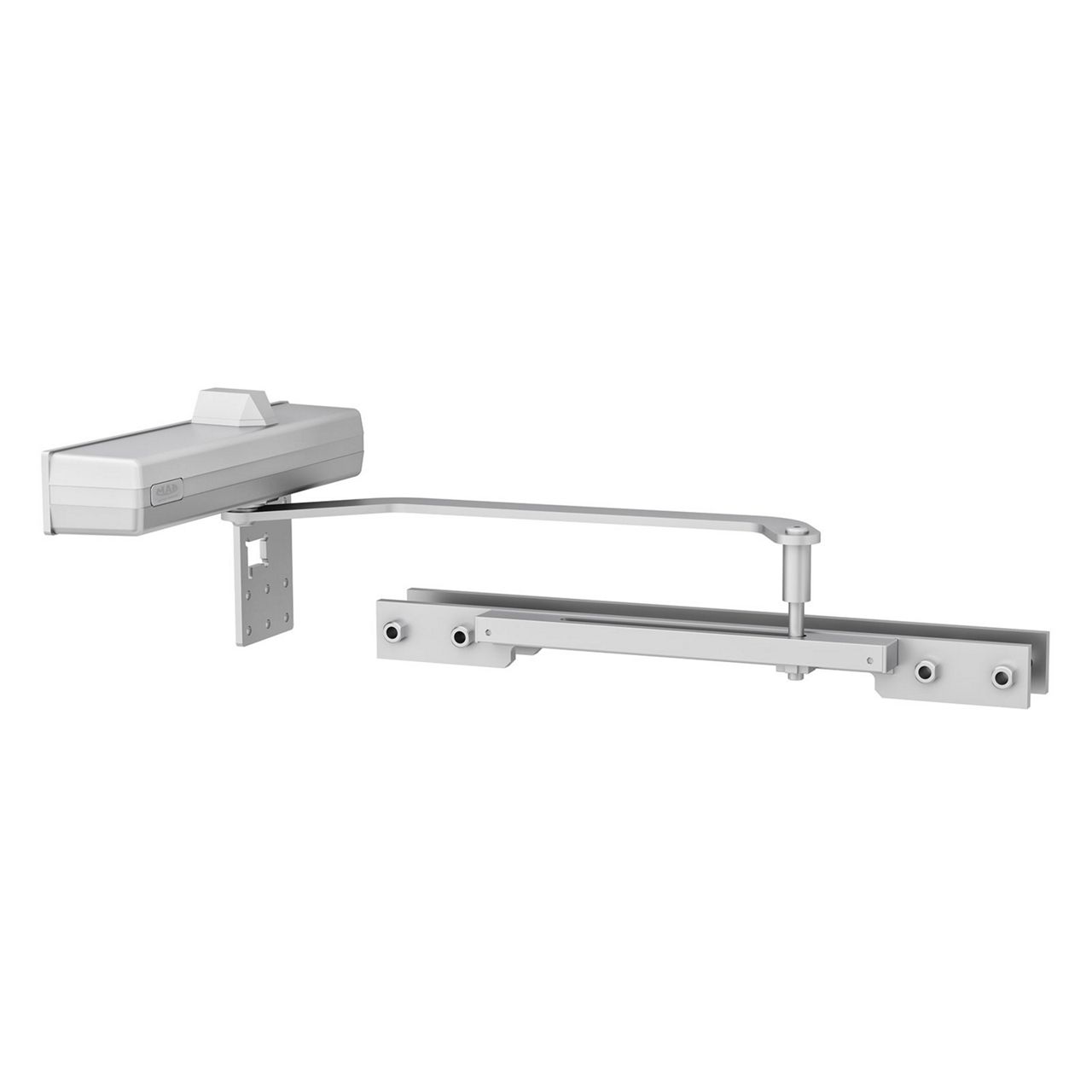

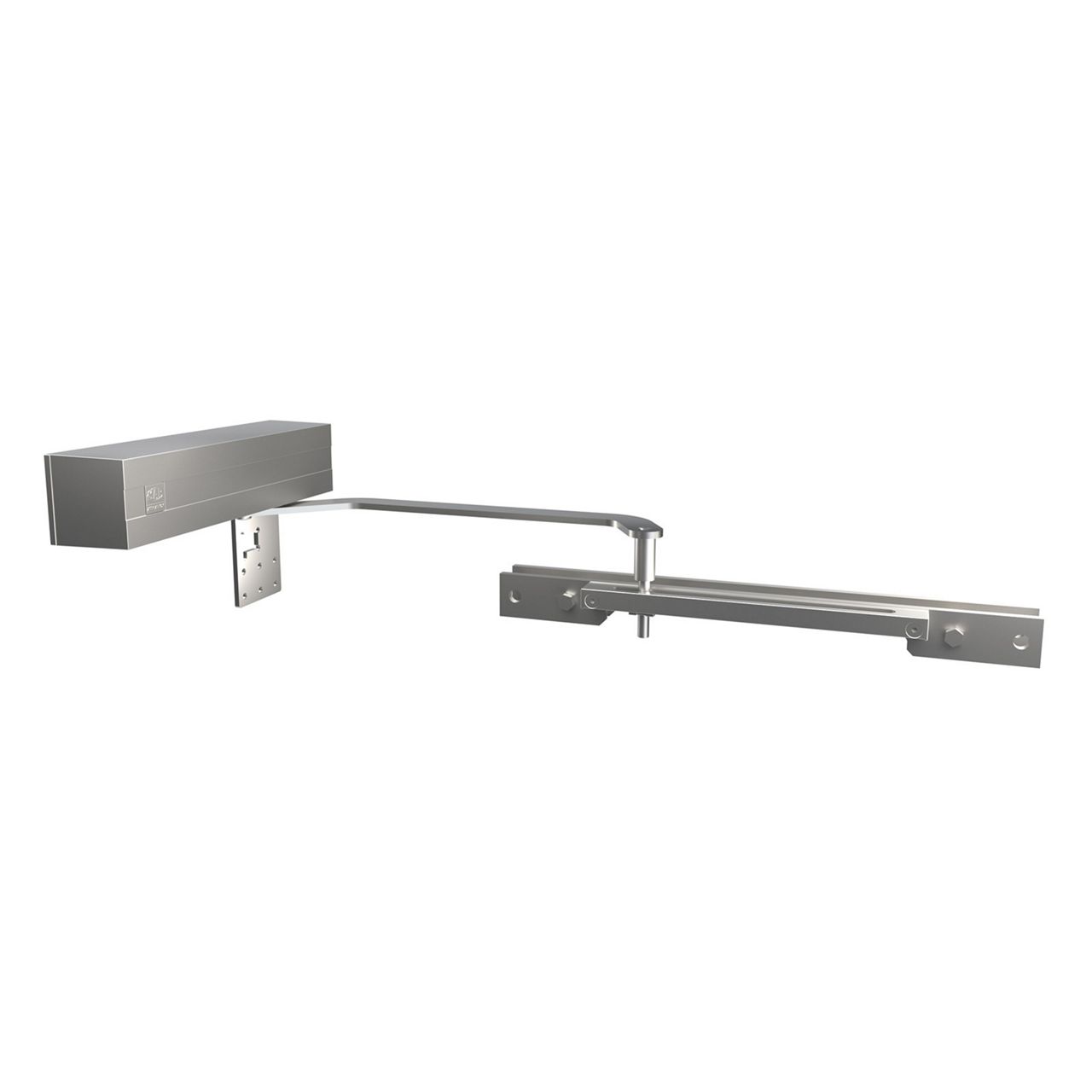

Silver

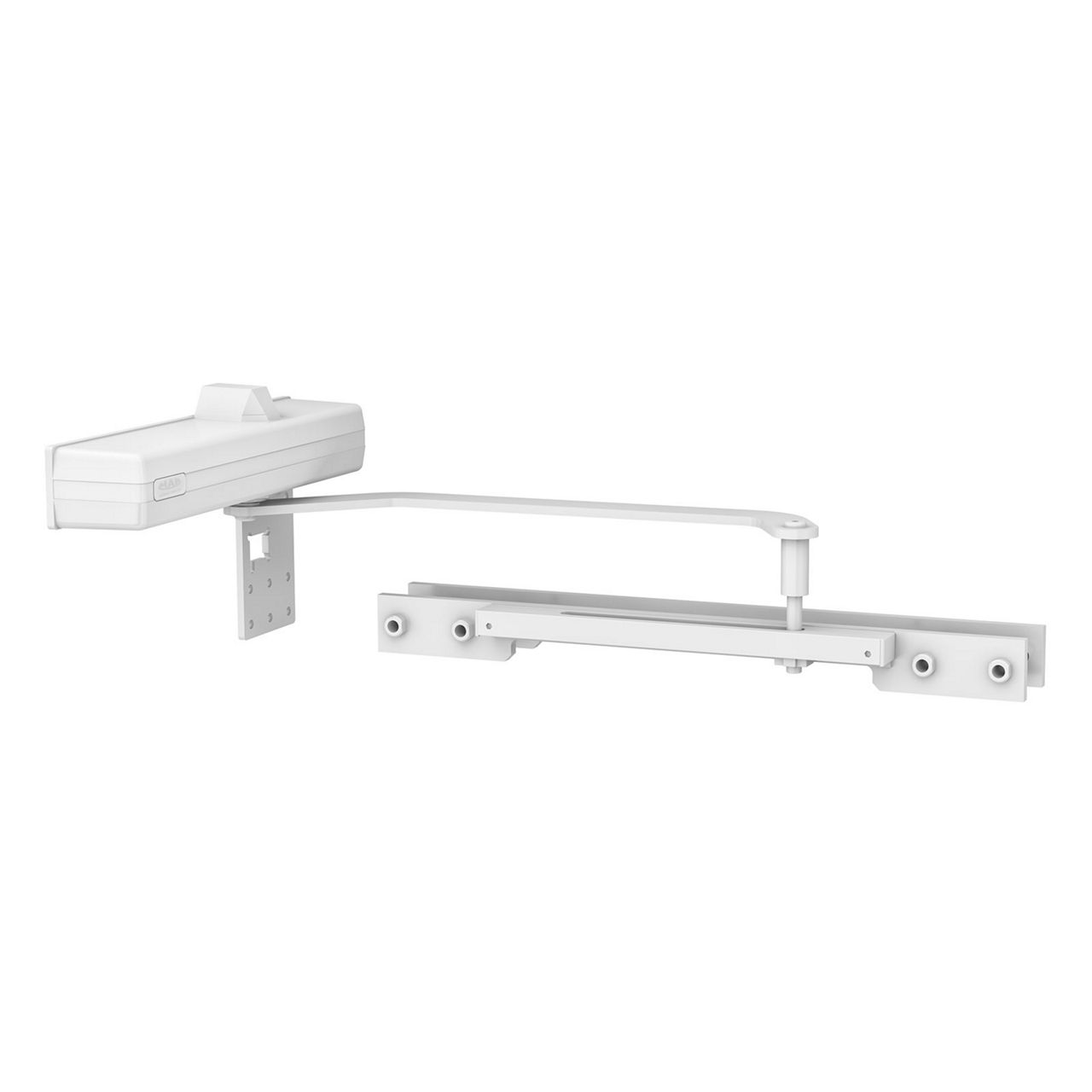

White

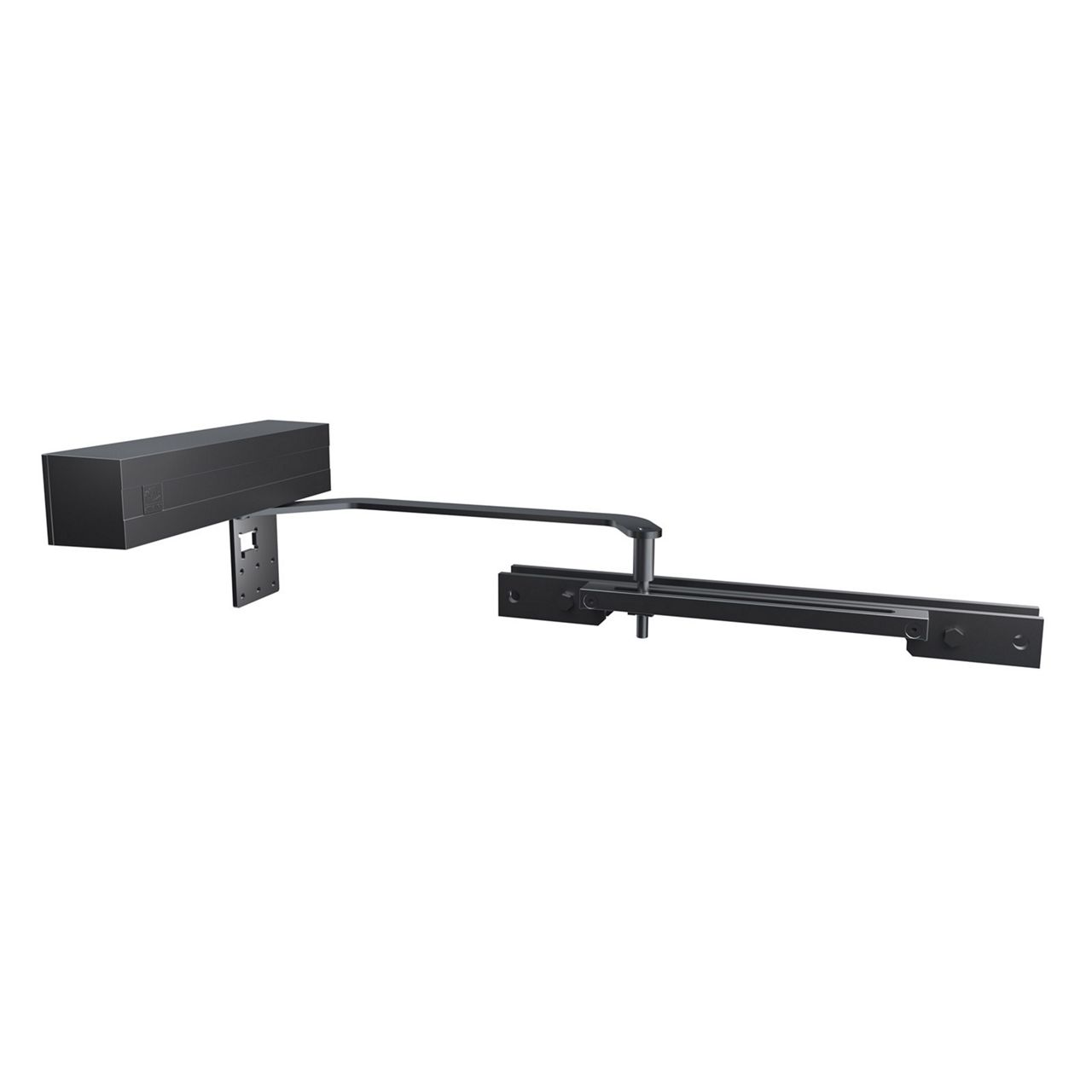

Black
Silver
Silver
White
Black
Adjustable closing force | EN 1-3 |
Gate width | Up to 1400 mm |
Door opening direction | Universal (left/right) |
Closing speed | Adjustable between 90° and 15° |
Final latch | Adjustable between 15° and 0° |
Body material | Cast iron |
Weight | 7,9 kg |
Height | 130 mm |
Thickness | 68,5 mm |
Length | 311 mm |
