650G Series

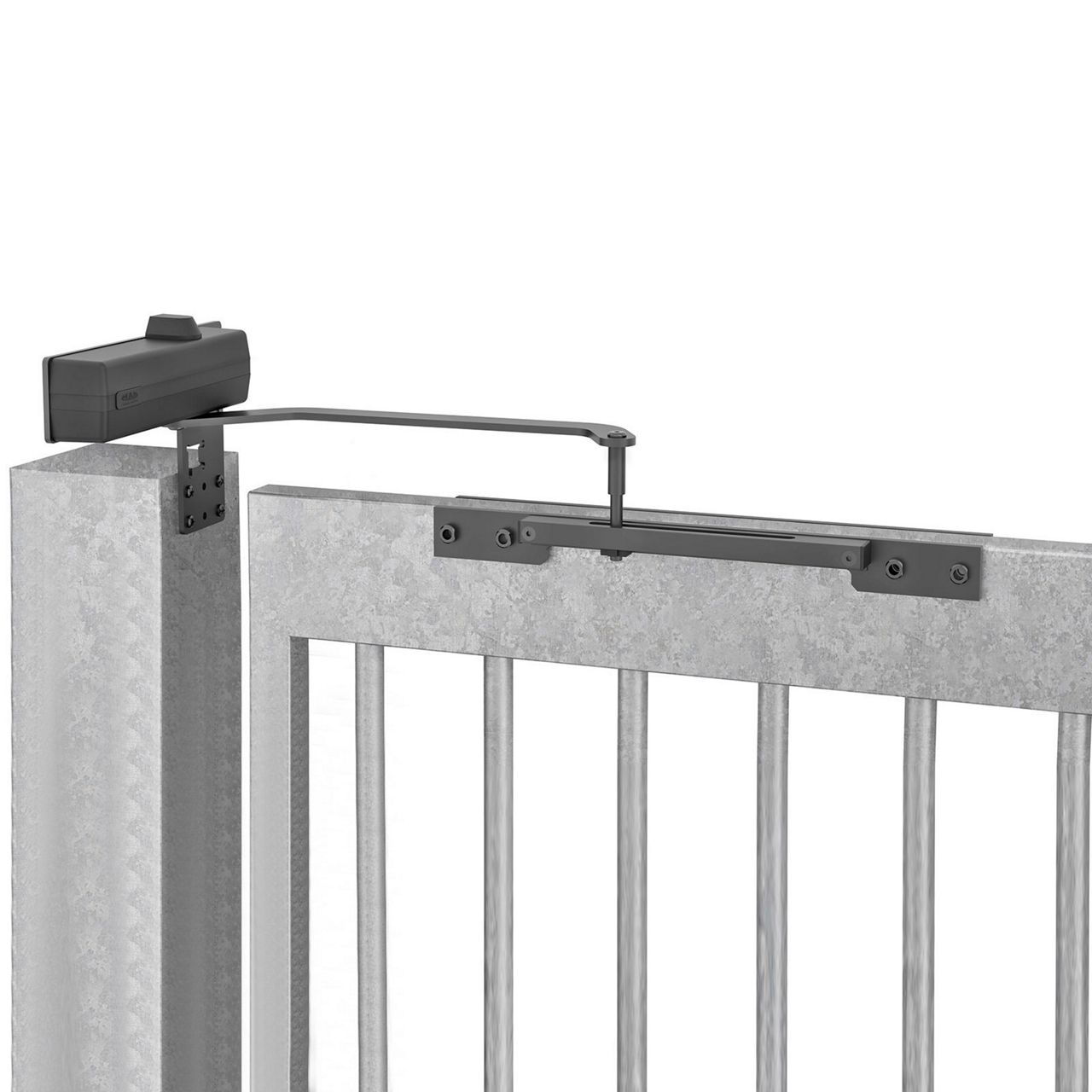

The 650G Series is a gate closer with sliding arm suitable for non-paneled gates with or without protruding bars with width up to 1250 mm.
It has fixed closing force EN 2 accoding to EN 1154 standards and two closing speeds independently controlled by two different thermostatic valves. it also has pinch free sliding arm and rail for safe use.
It's extremely easy to install (no welding is needed) and it's equipped with all mounting screws and accessories. Coated with strong resistance corrosion paint.
Finishes: Silver - White - Black

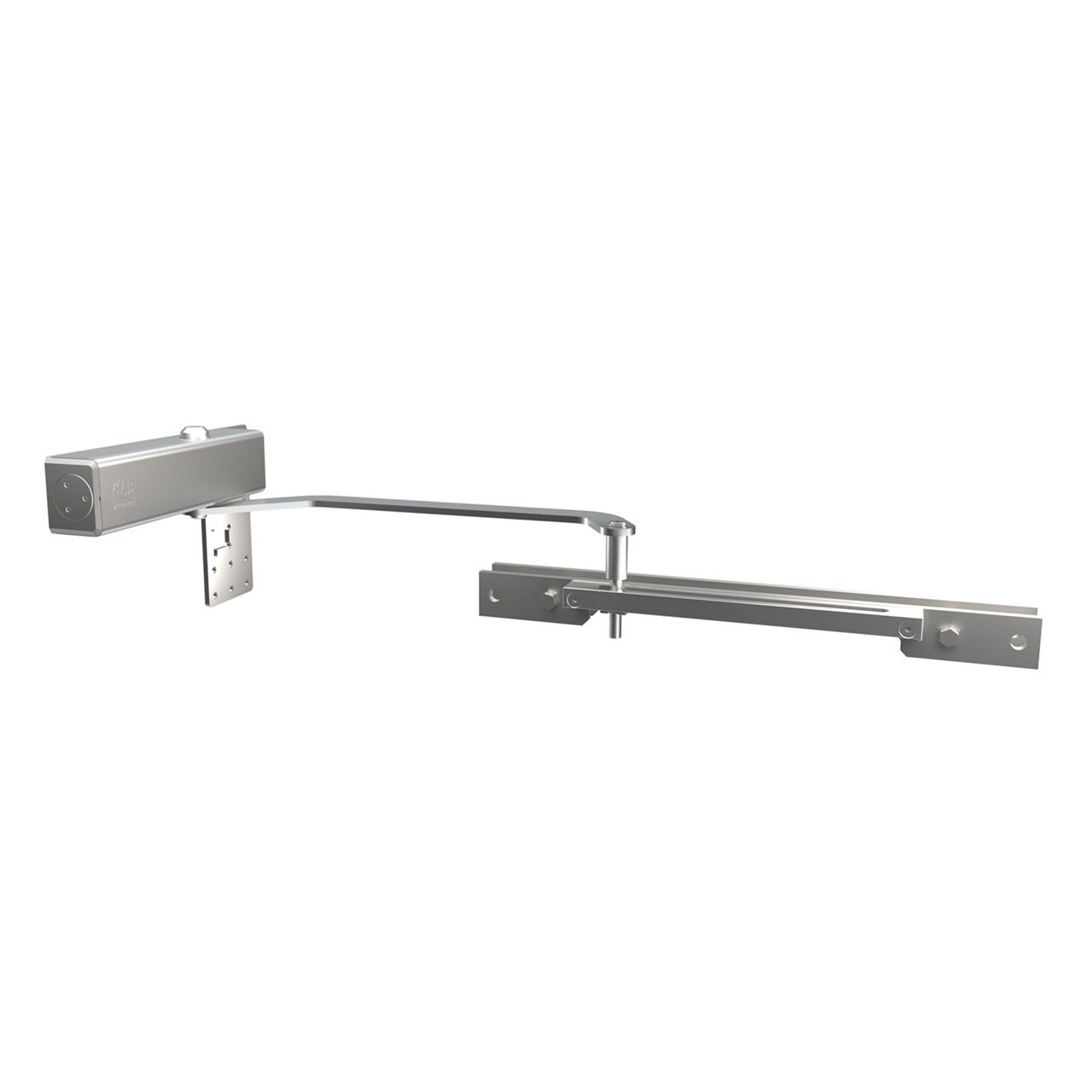

Silver

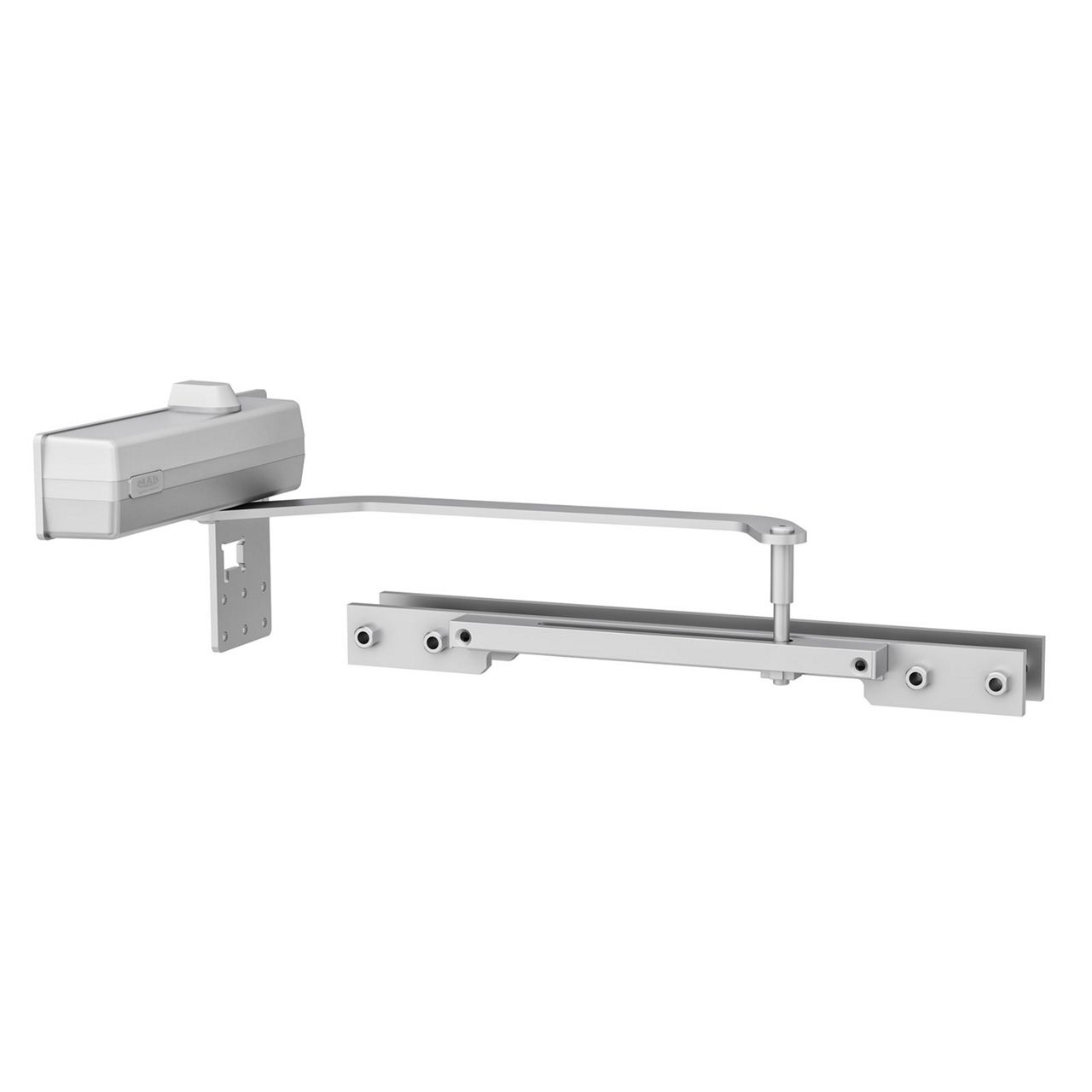

Silver

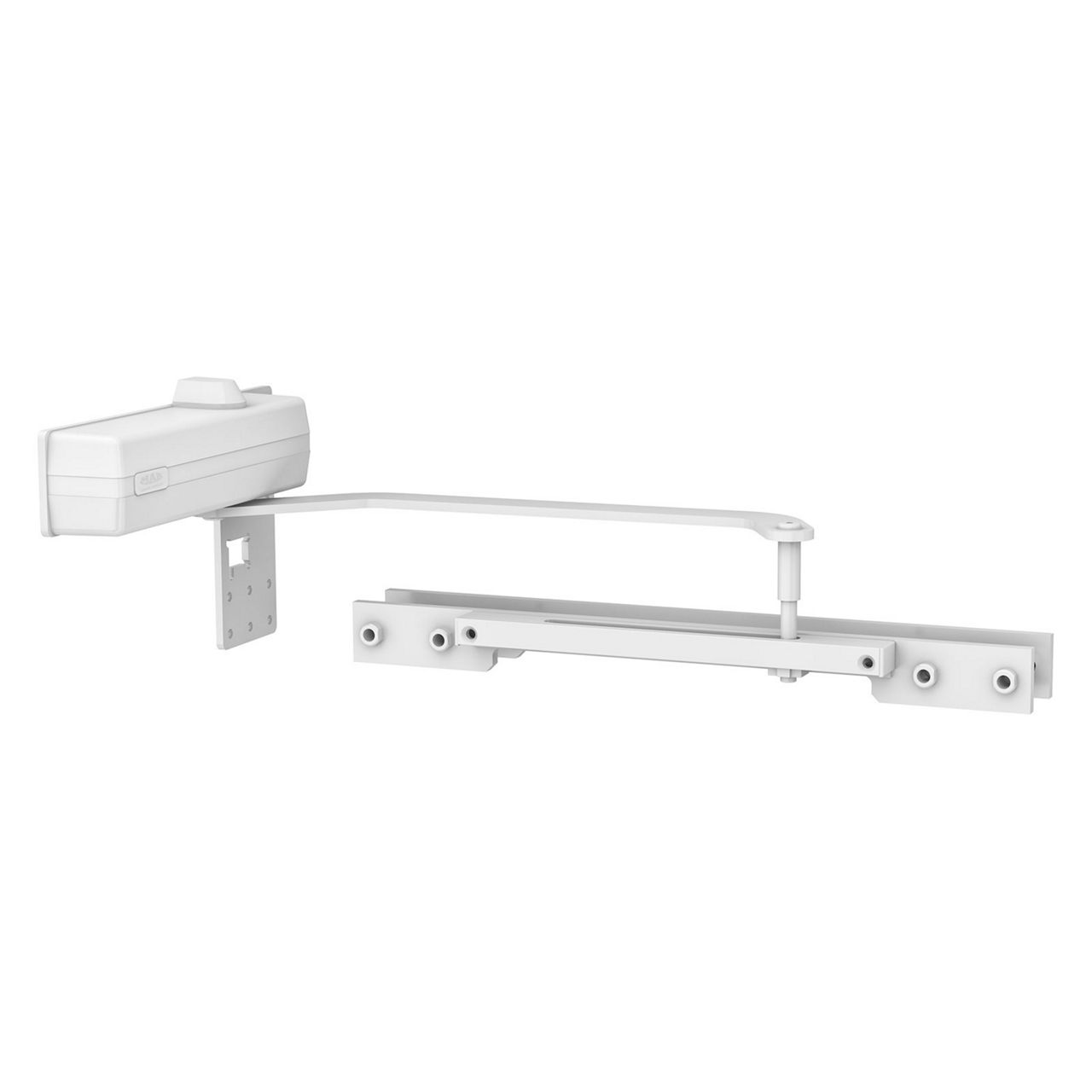

White

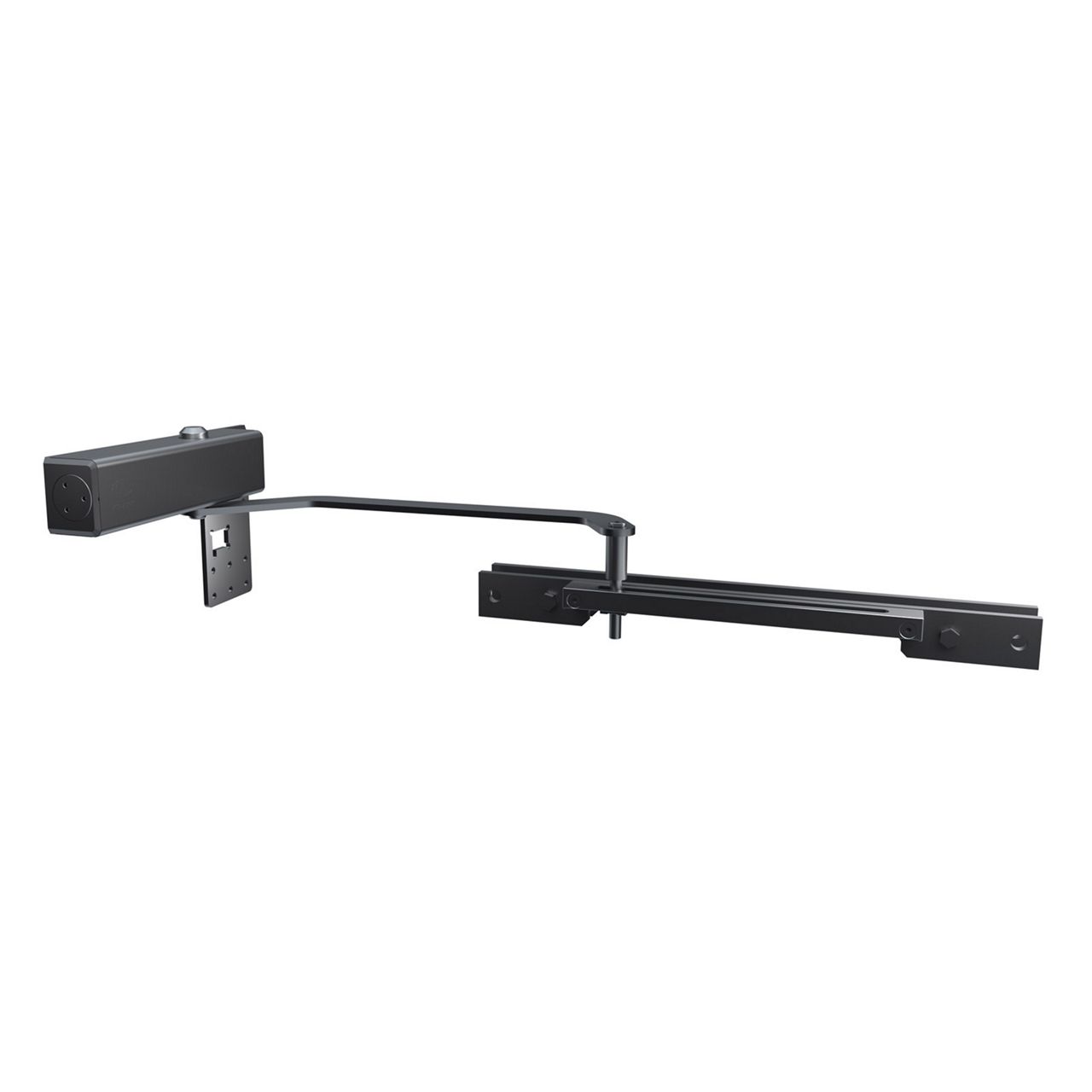

Black
Closing force Fixed | EN 2 Gate width Up to 1250 mm Maximum gate leaf weight Up Door opening direction Universal (left/right) Closing speed Adjustable between 90° and 15° Final latch Adjustable between 15° and 0° Body material Cast iron Weight 5,7 kg Height 109 mm Thickness 54 mm Length 282,5 mm Brochures
Installation sheets
