620G Series
The 620G Series is a gate closer with sliding arm suitable for non-paneled gates with or without protruding bars with width up to 1000 mm.
It has fixed closing force EN 1 accoding to EN 1154 standards and two closing speeds independently controlled by two different thermostatic valves. it also has pinch free sliding arm and rail for safe use.
It's extremely easy to install (no welding is needed) and it's equipped with all mounting screws and accessories. Coated with strong resistance corrosion paint.
Finishes: Silver - White - Black

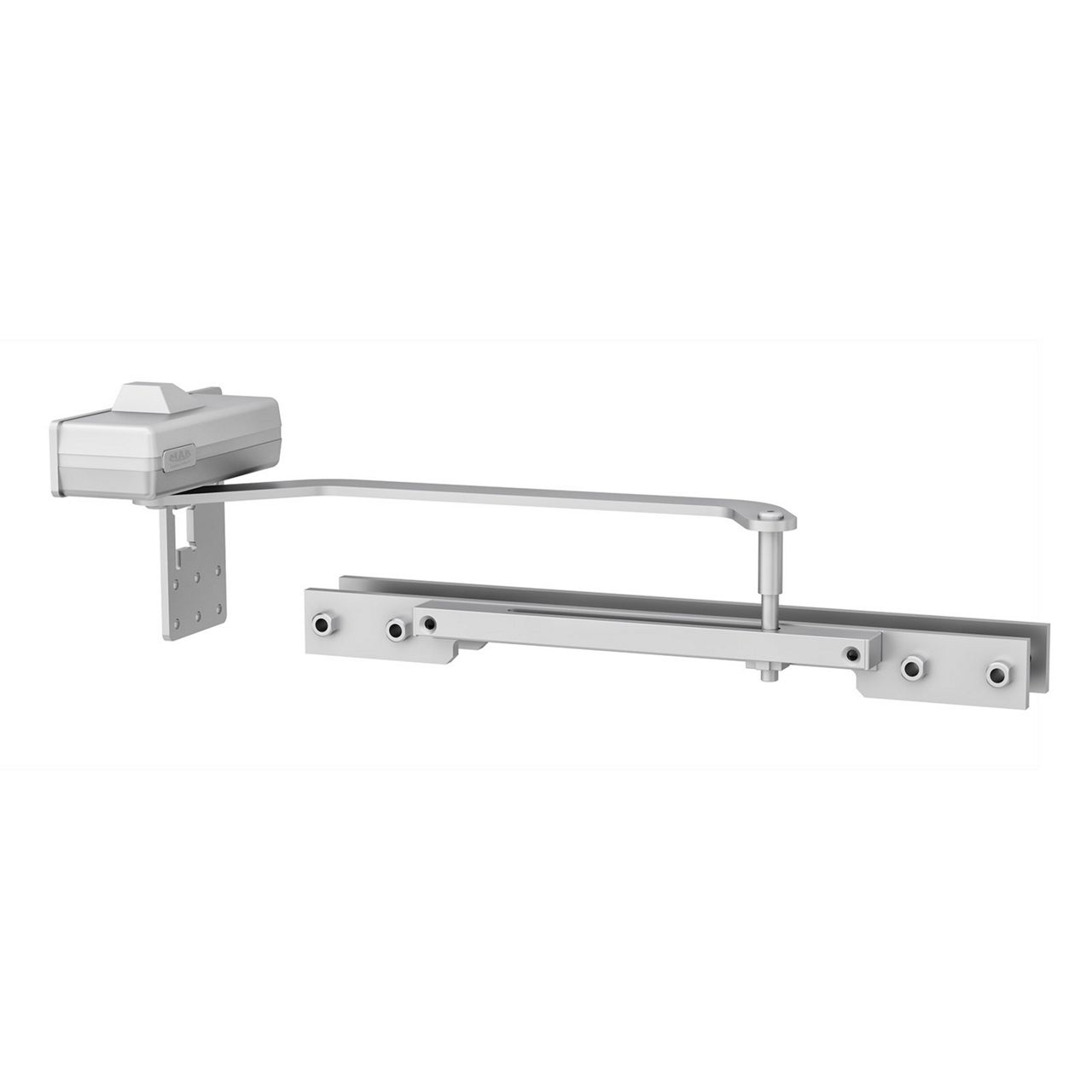

Silver

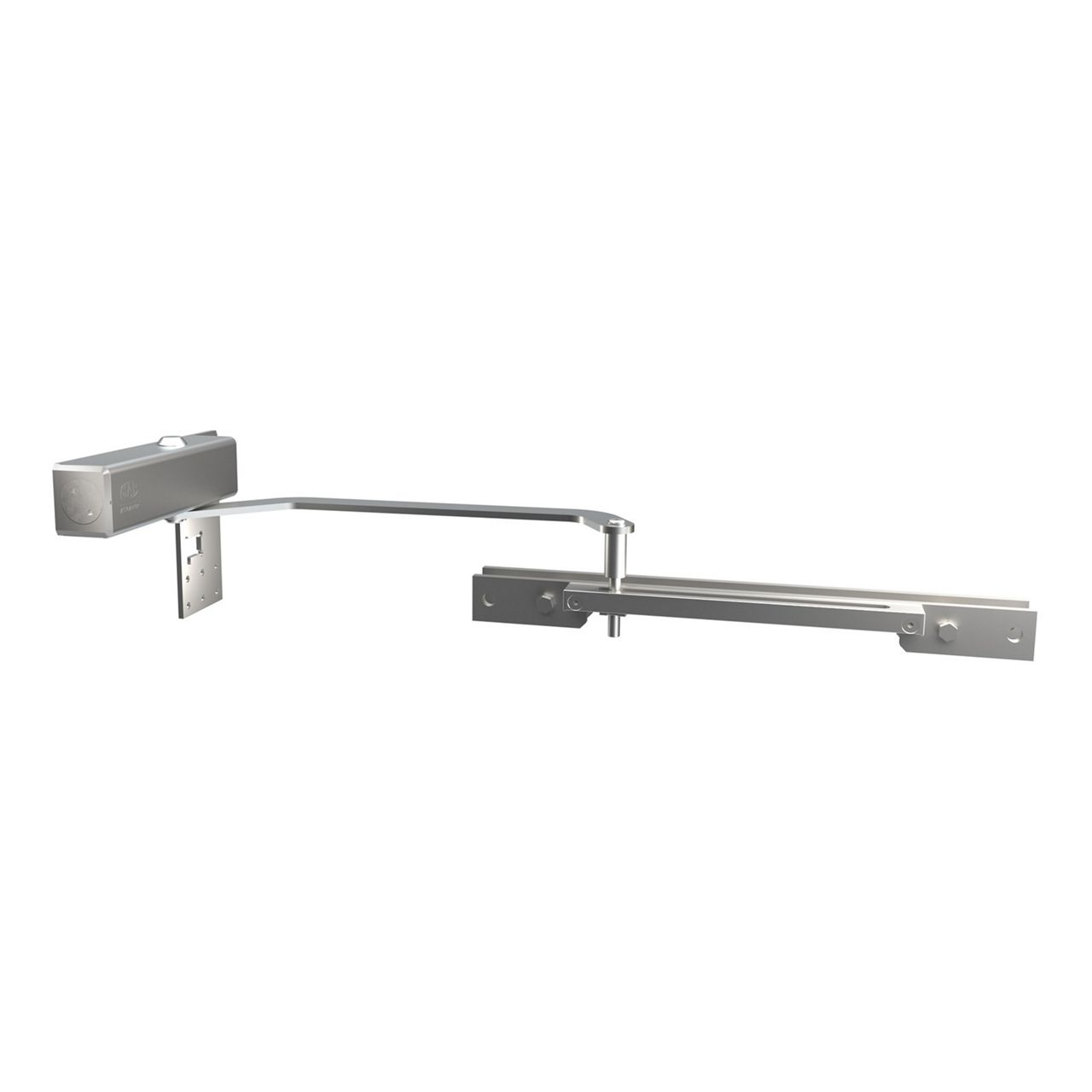

Silver

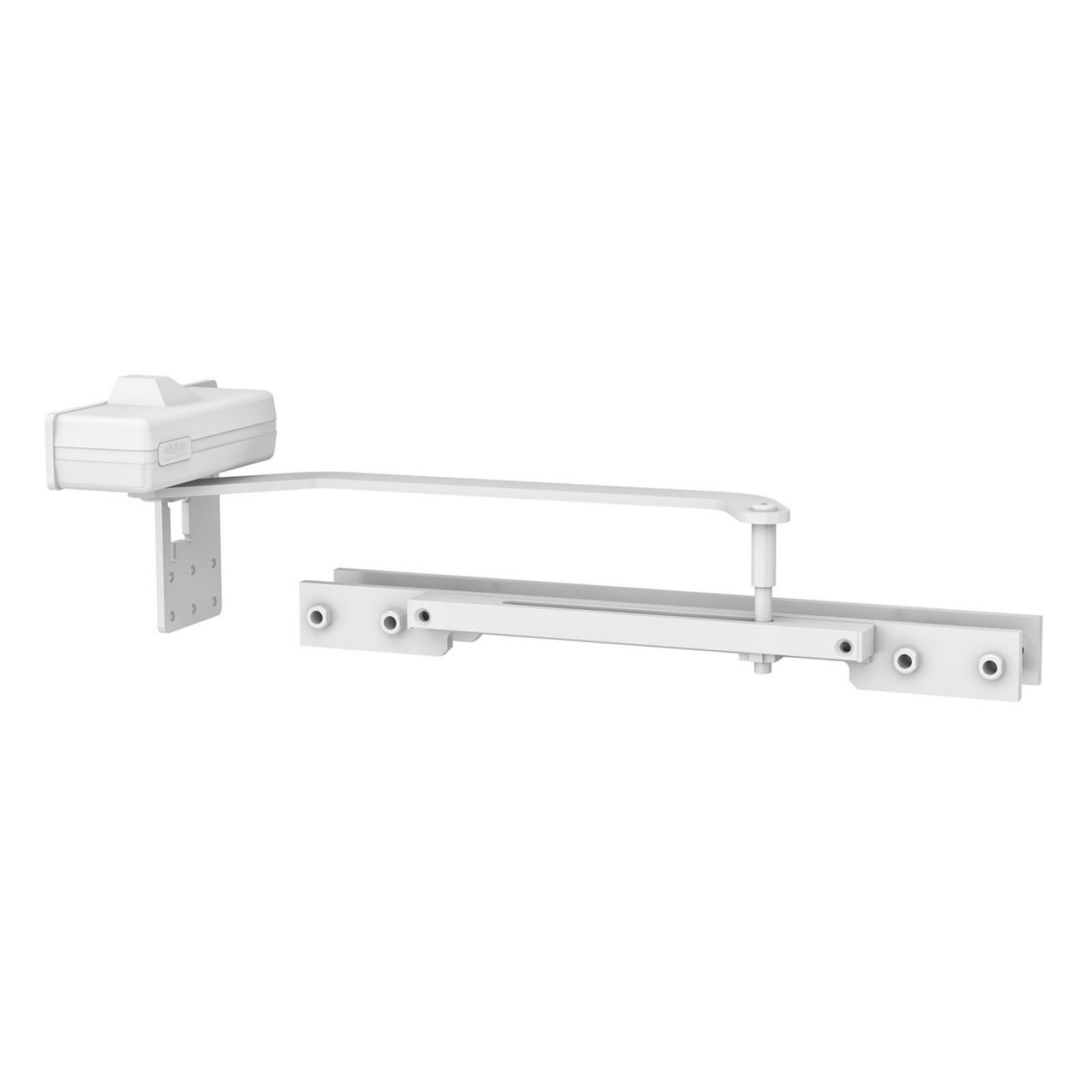

White

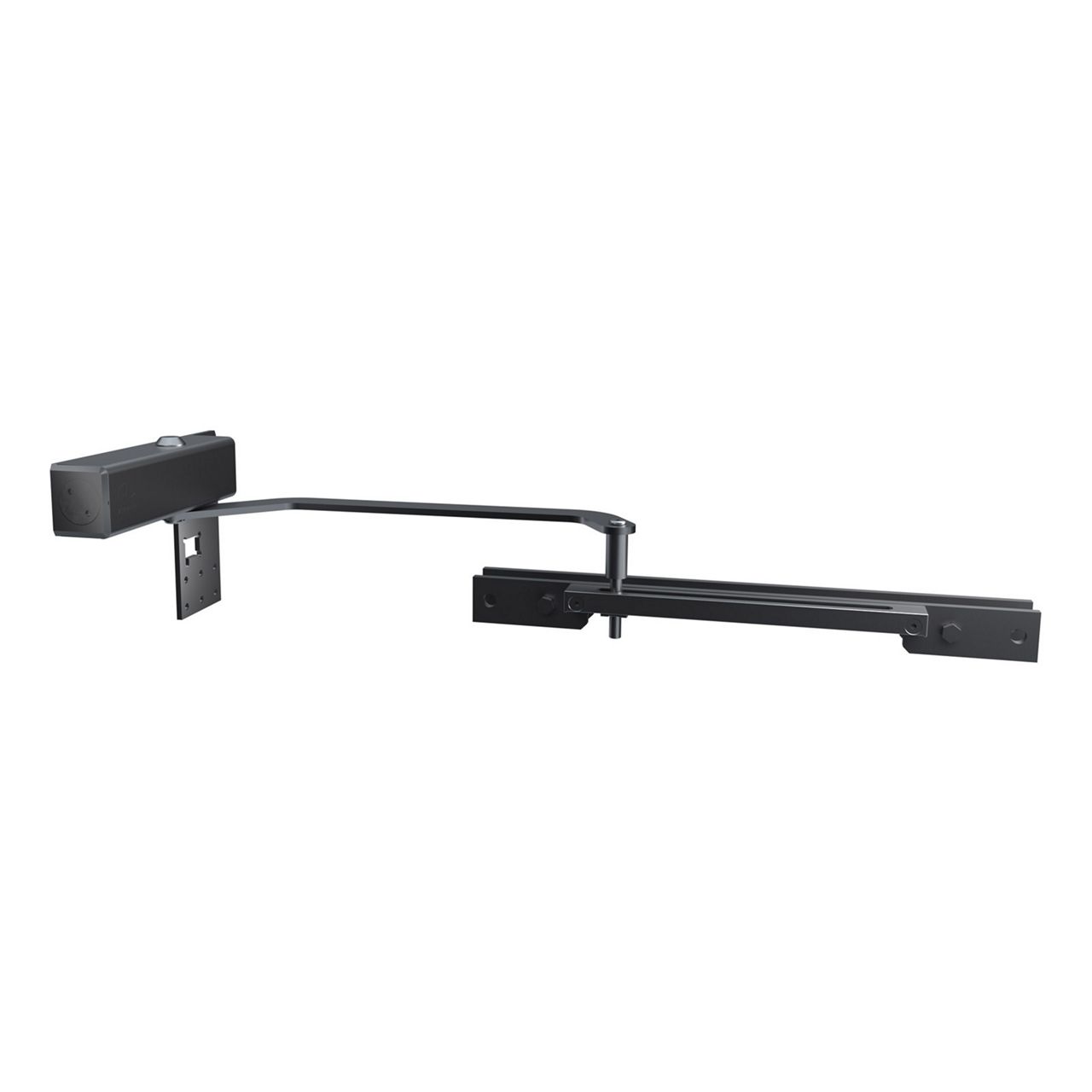

Black
Closing force Fixed | EN 1 Gate width Up to 1000 mm Maximum gate leaf weight Up to 80 kg Gate type Single-action non-panelled pedestrian gate with or without projecting bars Door opening direction For right and left doors Mounting options Pull side mounting on column Body material Cast iron Maximum opening angle Up to 180° (gate design or hinges may limit the maximum opening angle) Closing speed Adjustable between 90° and 15° Final latch Adjustable between 15° and 0° Body material Cast iron Weight 5,7 kg Height 114 mm Thickness 67 mm Length 200 mm Brochures
Installation sheets
