4 mounting options
Gate closer fits pillar or wall mount, push or pull side – with one product and matching accessories – without welding
The DC630G is an innovative, minimalist design solution that ensures that your gate is always closed properly but can be opened effortlessly.
It is a fixed force gate closer with 3D Cam-Motion® and guide rail technology designed for non-panelled pedestrian gate leaves up to 1300 mm wide and up to 150 kg in weight.
It requires no welding and can be installed in 4 different ways: push or pull side and pillar or wall installation. Its vertical installation and minimal design makes it almost invisible once mounted behind the gate.
Cam-Motion® technology ensures that the gate leaf opens with minimal effort: the opening force decreases rapidly as the gate opening angle increases. In addition, it fulfils the barrier-free requirements according to CEN/TR 15894.
The DC630G gate closer features an anti-crushing guide rail and an anti-shearing arm for added safety.
Closing speed and final latch are adjustable via independent, thermodynamic valves to ensure consistent performance under varying temperature conditions.
Finishes: Silver EV1; Black type RAL9005. Other finishes may be available on request.
Finishes
Silver EV1

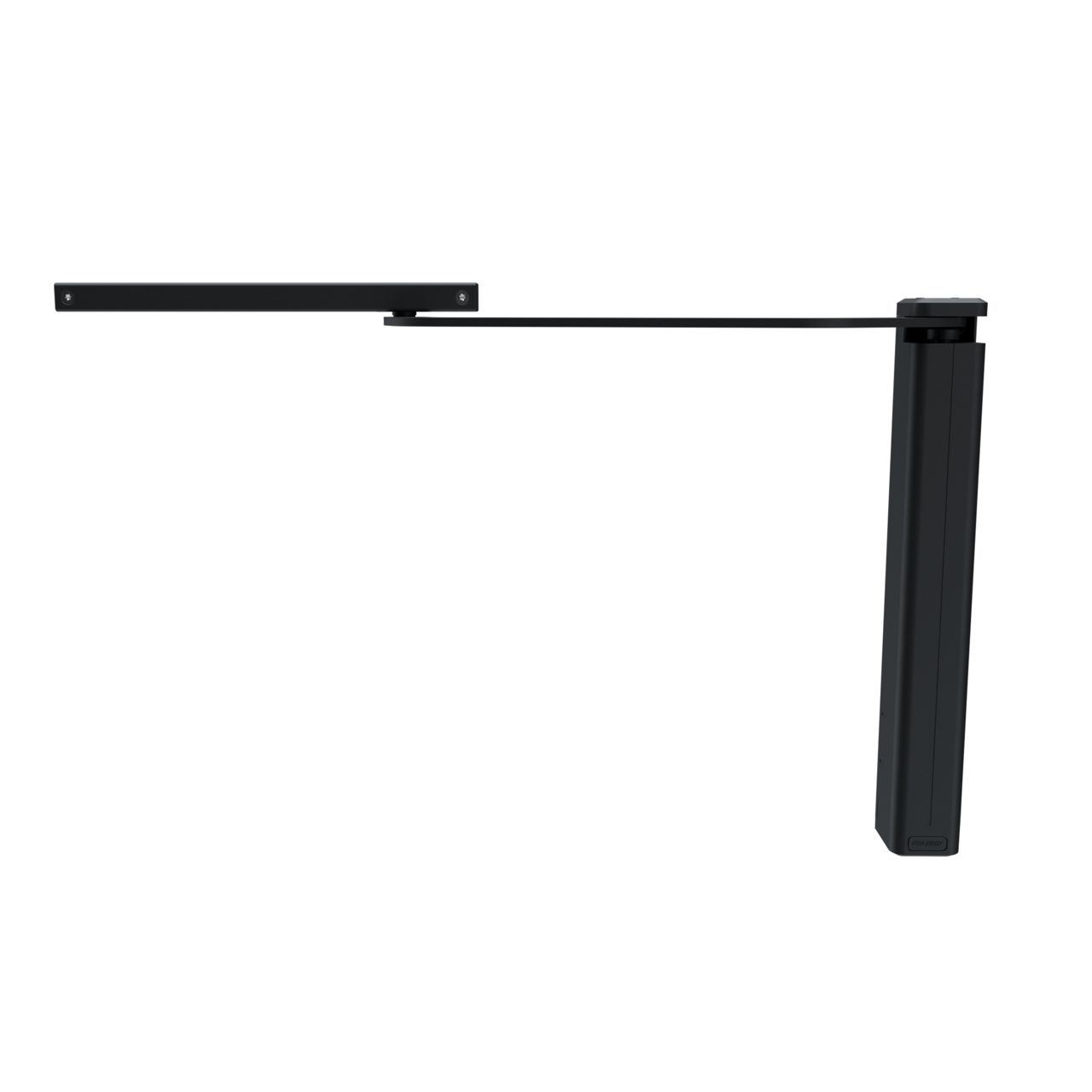

Black RAL9005
Silver EV1
Black RAL9005

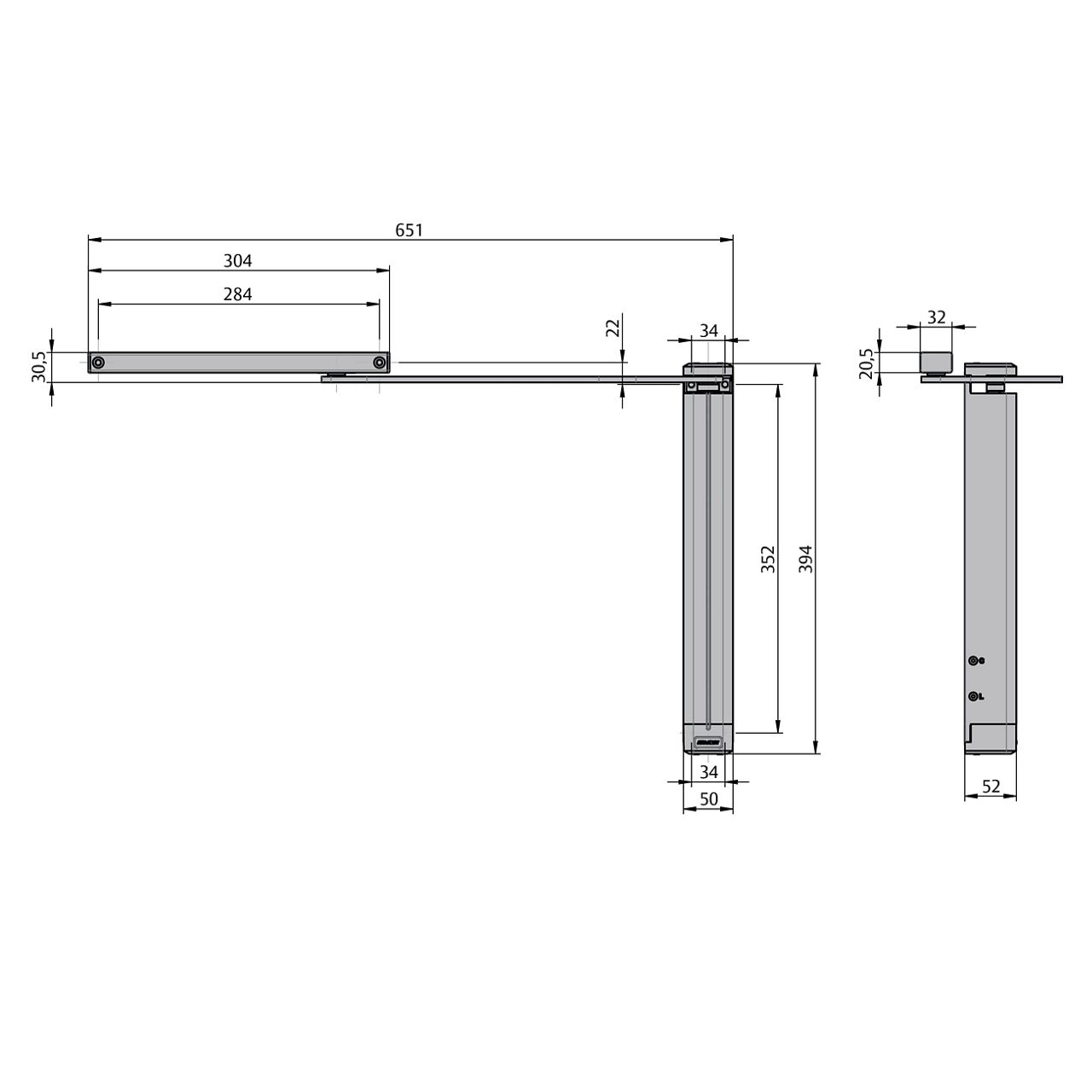

Dimensions
Independent adjustments
Closing and latch speeds can be raised and lowered independently, so closing performance matches the gate’s use
Slim design
Minimal visual impact due to vertical installation behind the gate – out of sight but always at work
Closing forse Fixed Gate width Up to 1300 mm Maximum gate weight 150 kg Gate type Single-action non-panelled pedestrian gate with or without protruding bars Door opening direction For right and left gates (the product is available in a right-hand version - DC630G-R - and a left-hand version - DC630G-L) Mounting options Push side mounting on column | Pull side mounting on column
Push side mounting on wall | Pull side mounting on wallBody material Cast iron Corrosion resistance Yes Maximum opening angle Up to 130° (gate design or hinges may limit the maximum opening angle) Closing speed Adjustable between 130° and 20° Final latch Adjustable between 20° and 0° Weight 4.3 kg Height 50 mm Thickness 52 mm Length 394 mm Third-party verified EPD ISO 14025, EN 15804 Barrier-free according to CEN/TR 15894 Technical drawings
Installation sheets and drilling templates
