Minimal visual impact
Installation concealed into the door leaf maintains the visual integrity of your doors – out of sight but always at work
The DC850 is a concealed door closer with Cam-Motion® technology and guide rail system that can be used for fire and smoke protection doors (without the addition of the hold-open device). It can be used on single leaf doors 850-1100 mm wide.
It is the perfect solution for balancing the need for easy access and the need for protection. The opening force decreases rapidly thanks to Cam-Motion® technology and ensures that the door opens with less effort, according to barrier-free DIN 18040 and CEN/TR 15894 standards.
It has an adjustable closing force EN 2-4 according to EN 1154. Spring preload adjustment makes the product versatile and suitable for different needs. It can be equipped with a standard guide rail or a smaller 20 mm guide rail, to ensure great compatibility with different mounting options.
Closing speed and final latch are adjustable via independent, thermodynamic upper control valves to ensure consistent performance under different temperature conditions.
Finishes: Silver EV1

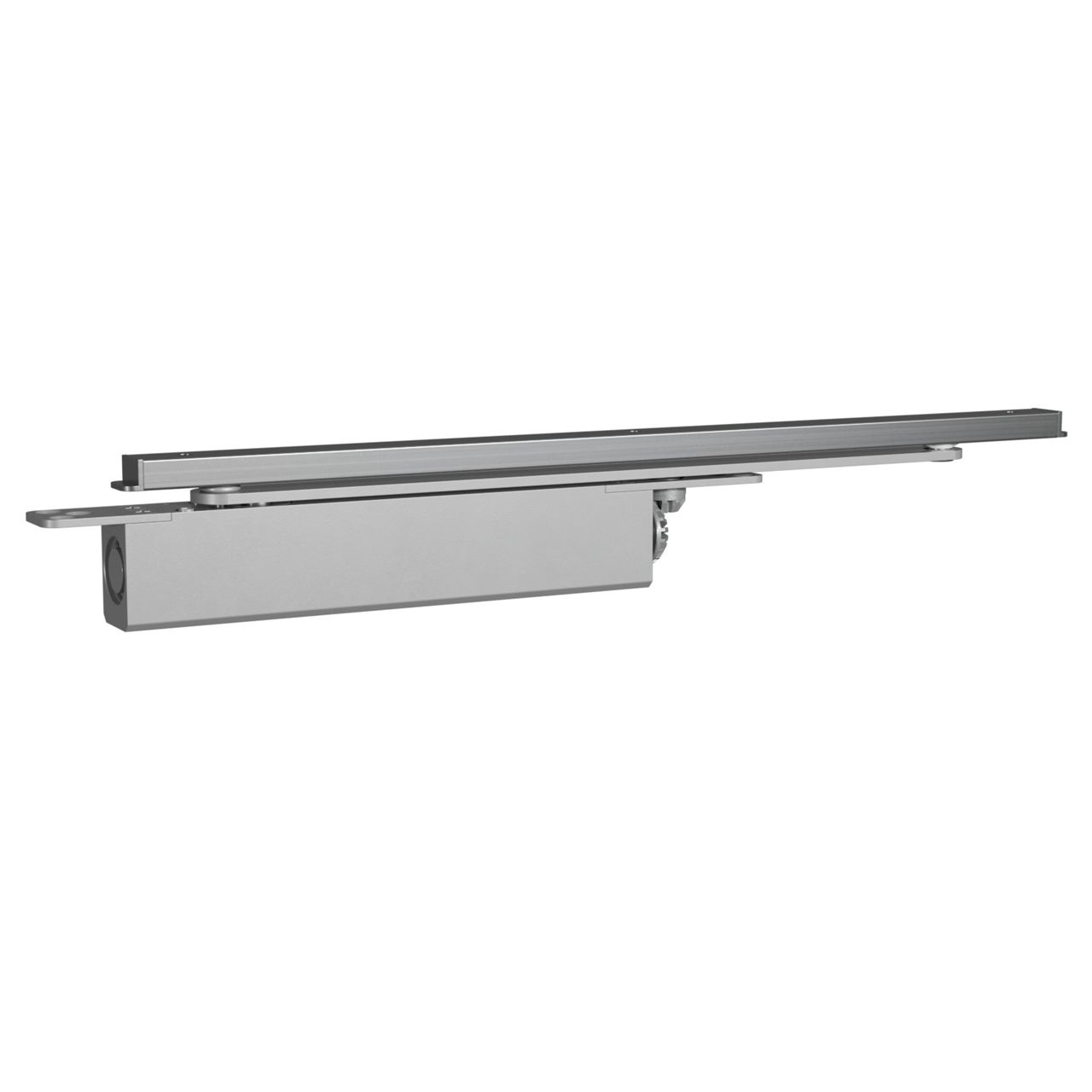

Silver EV1 DC850 with 20mm guide rail G896

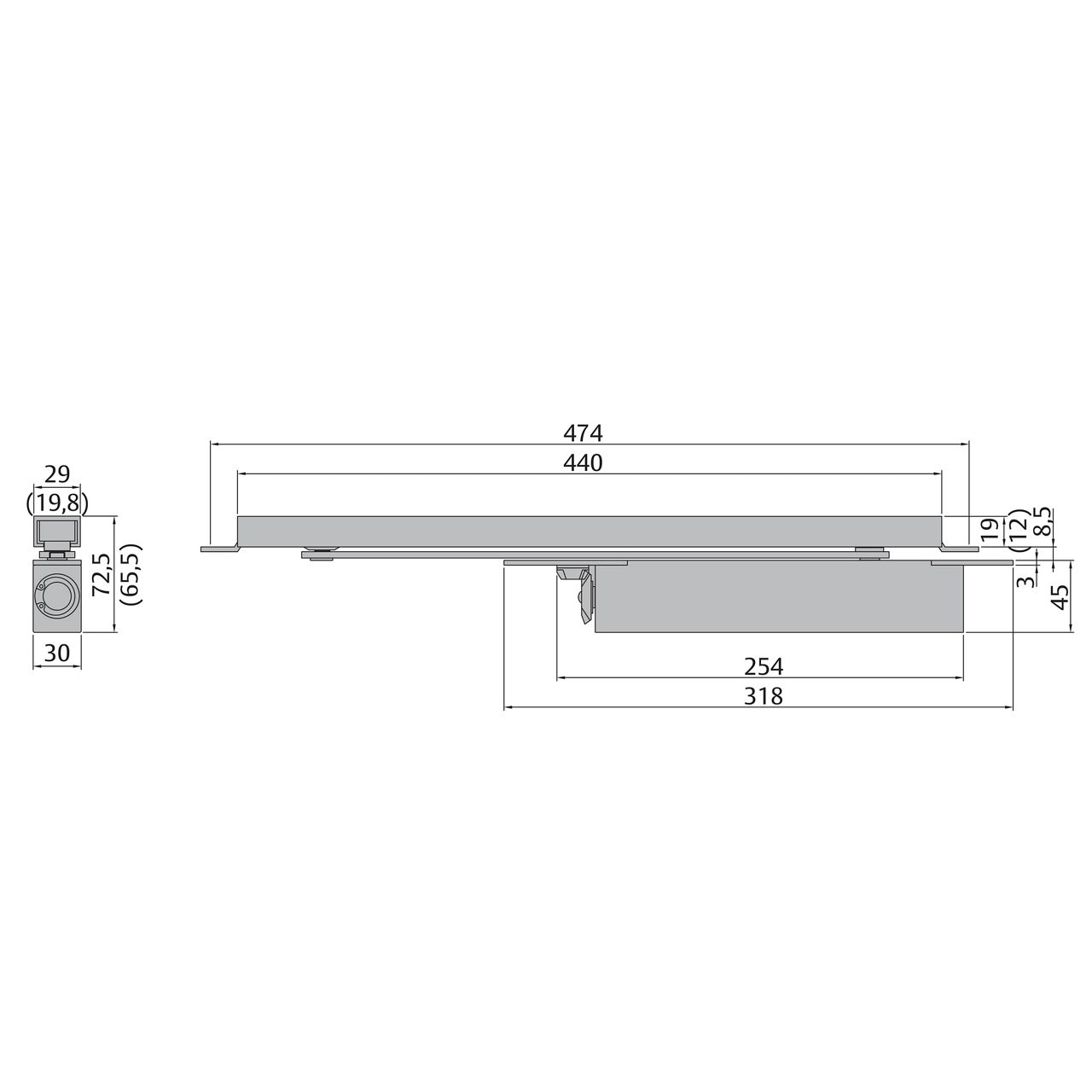

Dimensions
Independent adjustments
Closing and latch speeds can be raised and lowered independently, so closing performance matches the door’s use
Resistance-free opening
Even heavy fire and smoke doors open almost weightlessly providing greater freedom of movement
Closing force Adjustable | EN 2-4 Door leaf width 850-1100 mm Minimum leaf thickness 34 mm Door system Single leaf single action doors For fire-rated doors Yes (≥EN3) (without the addition of the hold-open device) Door opening direction For right and left doors Mounting options Concealed into door leaf
With standard guide rail | With 20mm guide railCorrosion resistance
Grade 3 (96 hours) Maximum opening angle
Up to 120° Closing speed Variable between 120° and 7° Latch speed Variable between 7° and 0° Weight 1,2 kg Height 45 mm Depth 30 mm Length 254 mm Certified in compliance with EN 1154 CE marking for locking systems Yes CE classification 3 | 8 | 2-4 | 1 | 1 | 3 Barrier-free according to CEN/TR 15894 | DIN 18040 Third-party verified EPD ISO 14025, EN 15804 Brochures & Datasheets
Technical drawings
Installation sheets
