Certified security
Compliant with European standards for home security and rigorous in-house testing at ASSA ABLOY labs.

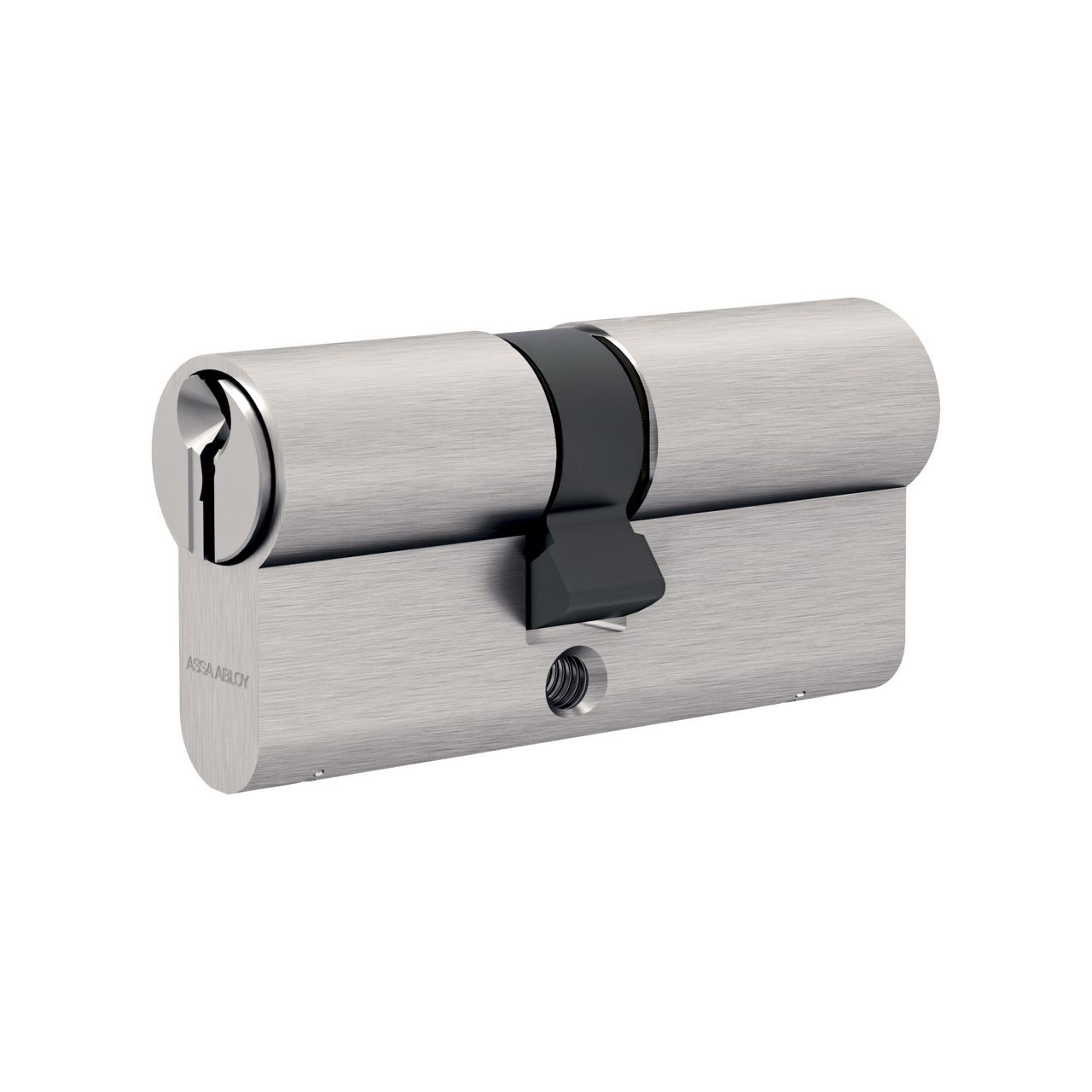

CYS06 Gemma - Double Cylinder
Durable and secure, the CYS06 Gemma Double Cylinder with 6-pin technology provides the protection you need to lock your building‘s doors – inside or out.
Applications:
- External and internal doors
- Keyed to Differ (KD), Keyed Alike (KA)
Satin Nickel
Satin Nickel

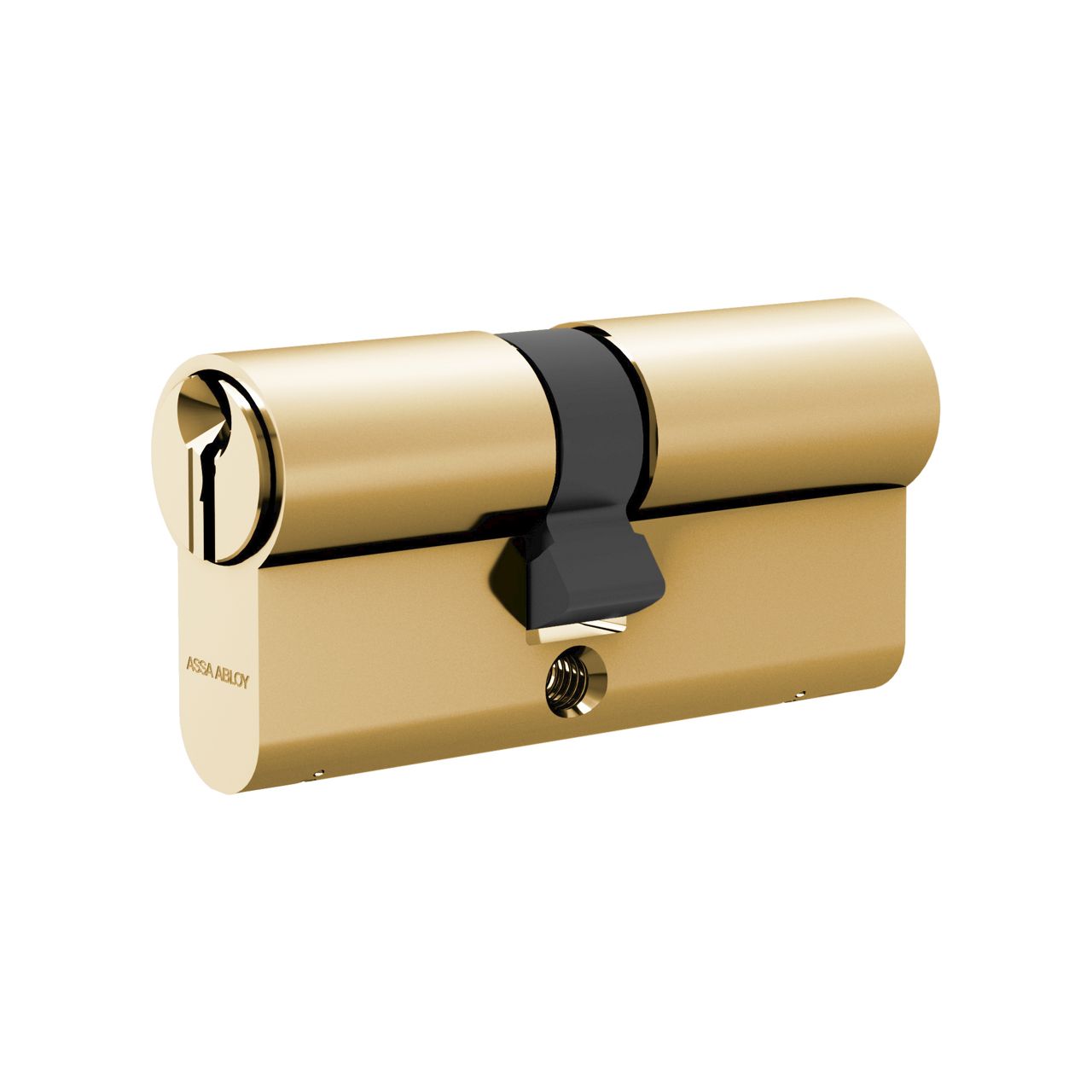

Polished Brass
Attack resistance
Secure anti-pick design with 15 kN pulling resistance, 5 minutes’ drilling resistance, and bumping resistance.
Reliable construction
Durable design with 96-hour corrosion resistance and tested for 300,000 lock/unlock cycles.
Brochures & Datasheets
Technical Drawings
Feature Detail Security EN 1303:2015 tested, 1 6 - B - C 5 0 Attack resistance Anti-pick | Anti-drill ‒ 5 minutes' drilling resistance | Anti-pull ‒ 15 kN pulling resistance | Anti-bump | Anti-snap Keying Sawn key design | Keyed to differ (KD) | Keyed alike (KA) Number of keys 3 Max. number of key differs 108,547 Number of pins 6 Raw material Brass Finish Satin Nickel | Polished Brass (on request) Cylinder length Minimum: 27.5/27.5 mm | Maximum: 80/80 mm | Increments: 5 mm (starting from 30/30 mm) Weight 186 g (length 30/30 mm) Standard functionality Emergency clutch
