Certified security
Compliant with European standards for home security and rigorous in-house testing at ASSA ABLOY labs.

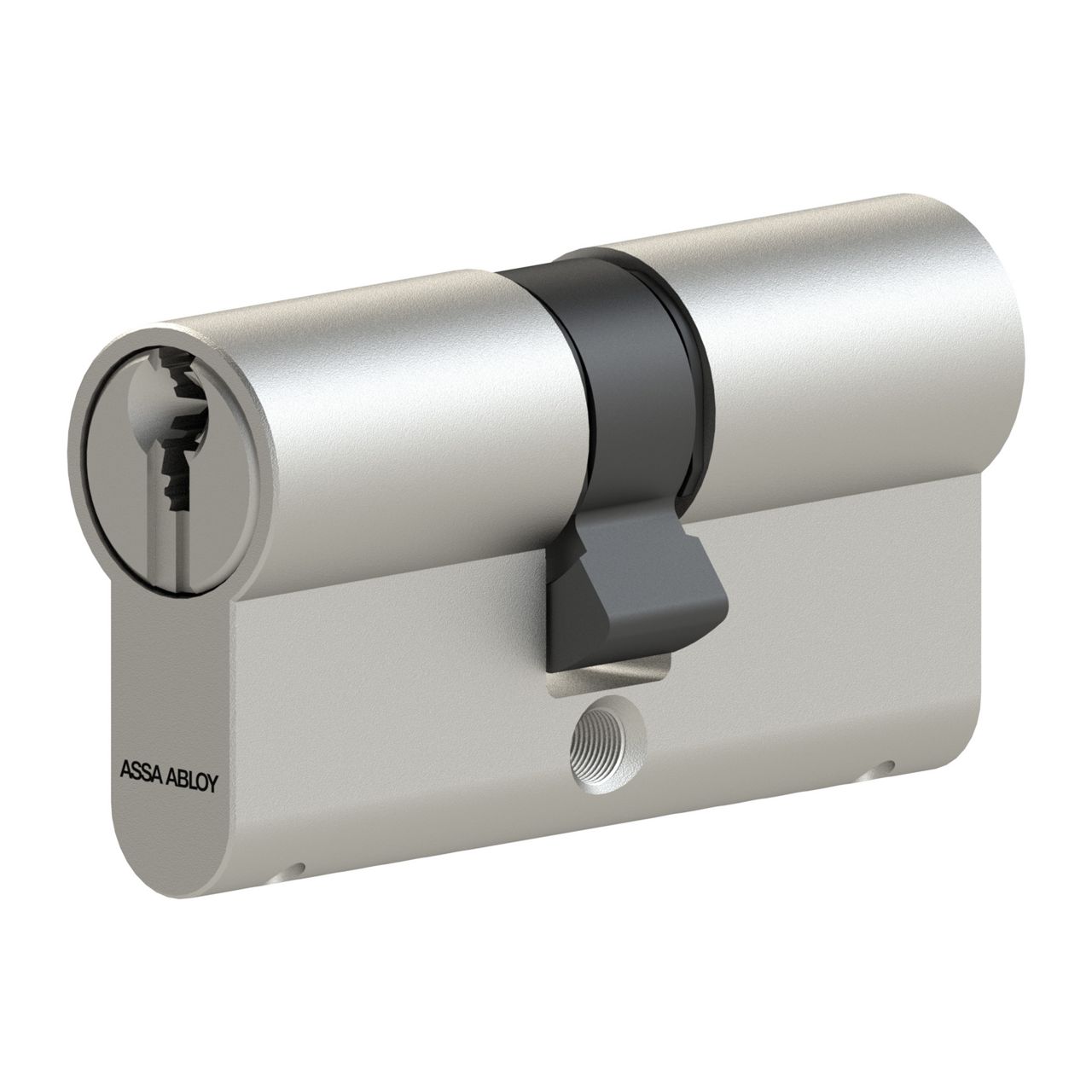

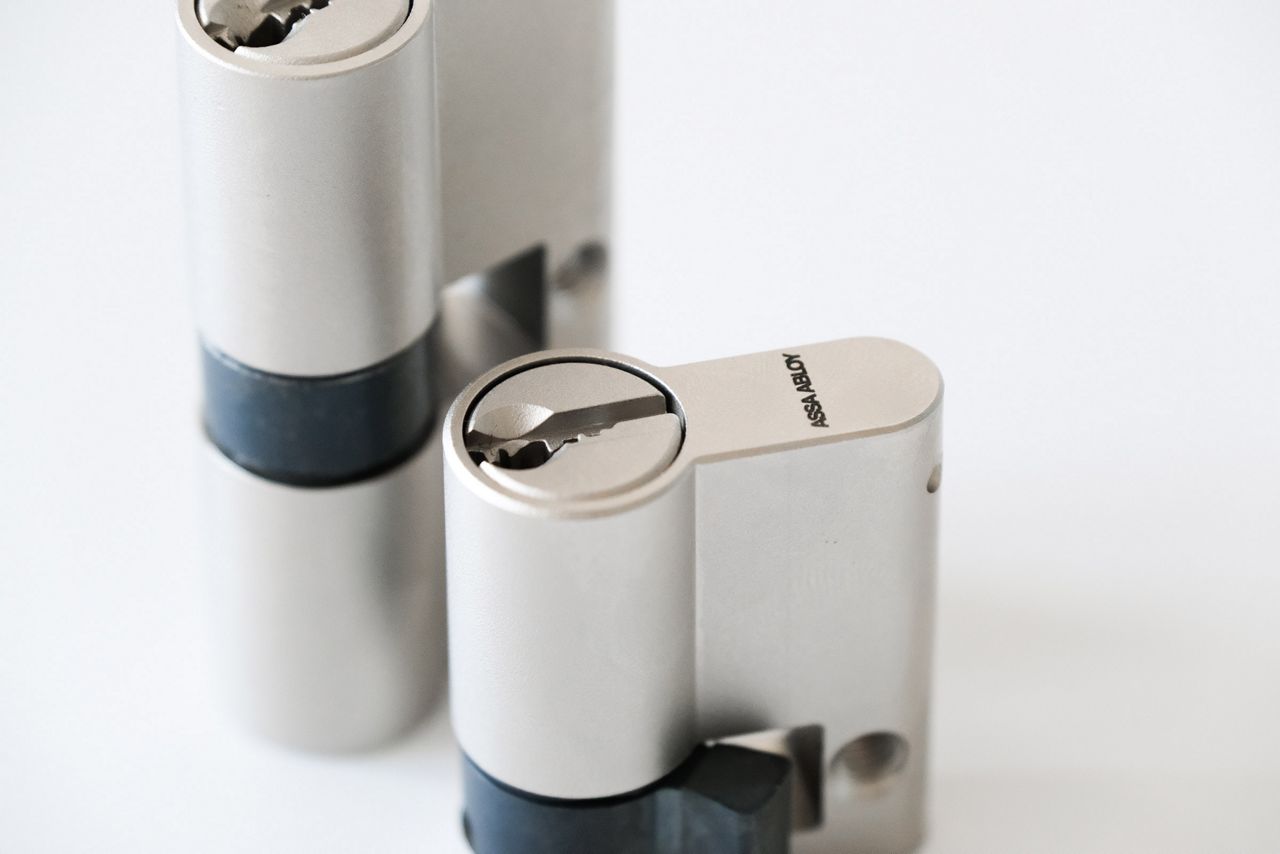

Durable and secure, the CYS10 Double Cylinder with 6-pin technology provides the protection you need to lock your building's doors ‒ inside or out.
The emergency clutch offers additional security. If the key is accidentally left inserted from one side, it is still possible to operate the cylinder from the other side.
Applications:
Optional functionality:
Satin Nickel
Compliant with European standards for home security and rigorous in-house testing at ASSA ABLOY labs.
Secure anti-pick design with 15 kN pulling resistance, 5 minutes’ drilling resistance, and bumping resistance.
Durable design with 96-hour corrosion resistance and tested for 300,000 lock/unlock cycles.
Feature | Detail |
---|---|
Security | EN 1303:2015 tested, 1 6 – B – C 6 0 | Cam DIN 18252 compliant |
Attack resistance | Anti-pick | Anti-bump (also for KA) |
Keying | Sawn key design | Master key system (MKS) | Keyed alike (KA) | Keyed Differ (KD) |
Number of keys | KD: 3 keys | KA/MKS: according to order |
Max. number of key differs | 144,729 |
Number of pins | 6 |
Raw material | Brass |
Finish | Satin Nickel | Polished Brass (on request) |
Cylinder length | Minimum: 27/27 mm | Maximum: 80/80 mm | Increments: 5 mm (starting from 30/30 mm) |
Weight | 234 g (length 30/35 mm) |
Optional features | Construction key |
