Certified security
Compliant with European standards for home security and rigorous in-house testing at ASSA ABLOY labs.

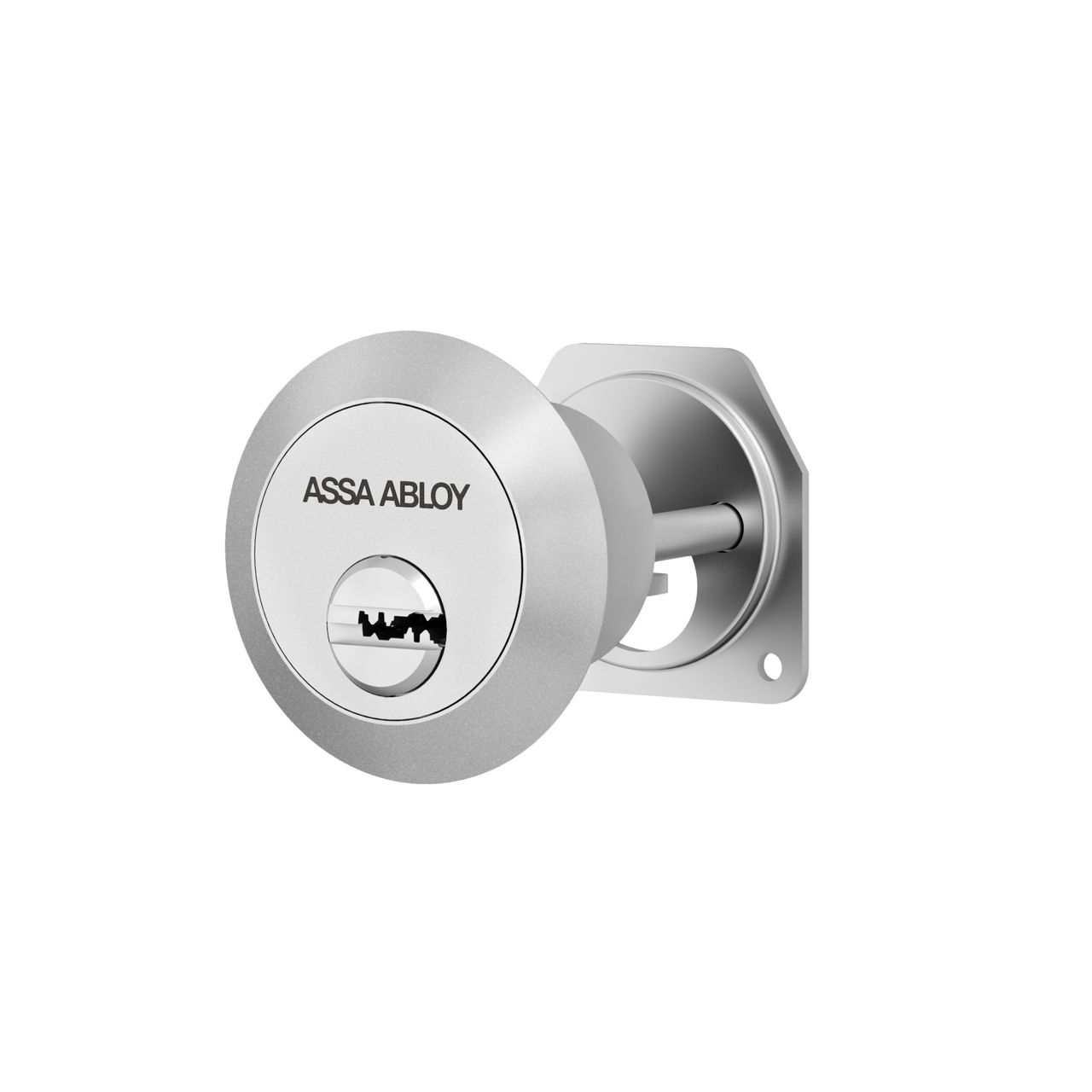

CY110 - Rim Cylinder
Secure entrances while at the same time, enabling anyone inside to make an easy exit.
The CY110 Rim Cylinder can be used with night latches or other locking devices which are operated from a tailbar.
Applications:
- External doors
- Master Key System (MKS), Keyed Alike (KA), Keyed Differ (KD)
Finishes
Satin Nickel
Attack resistance
Secure anti-pick design with 15 kN pulling resistance, 5 minutes’ drilling resistance and bumping resistance (for keyed alike and keyed to differ).
Reliable construction
Durable design with 96-hour corrosion resistance and tested for 500,000 lock/unlock cycles.
Brochures & Datasheets
Technical Drawings
Feature Detail Security EN 1303:2015 tested, 1 6 - B - C 5 0 Attack resistance Anti-pick | Anti-bump (also for KA) Keying Dimple security design | Master key system (MKS) | Keyed alike (KA) | Keyed differ (KD) Number of keys KD: 3 keys | KA/MKS: according to order Max. number of key differs 92,232 Number of pins 6 active + 5 passive (upper and lateral) Raw material Brass Finish Satin Nickel Dimensions Face diameter: 32 mm | Body diameter: 29 mm | Rod lenght: 54 mm Weight 167 g
