PED 300 + PED/GV

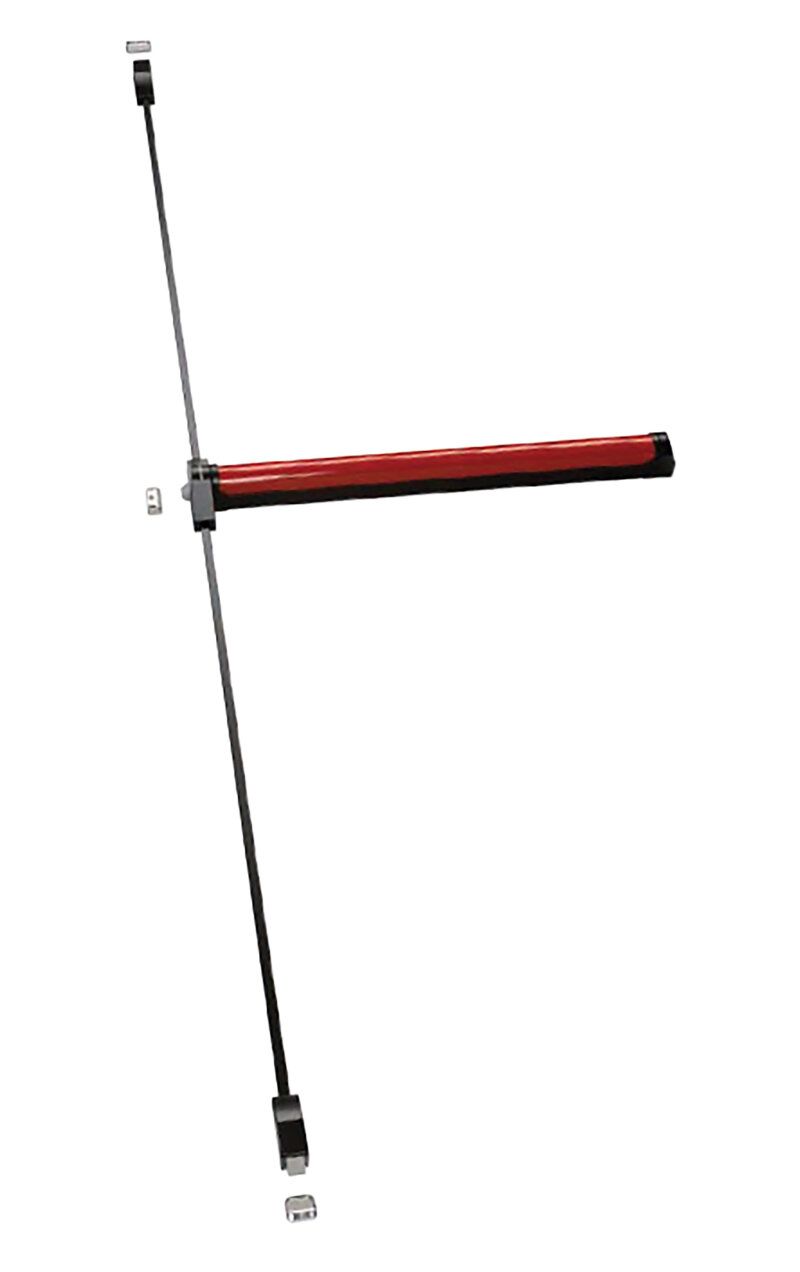

Panic Exit Device PED 300+PED/GV Push Bar - Vertical Device Vertical locking points

Description:

• Set of 2/3 locking points PED composed of Modular Push Bar and kit for 2 vertical locking  points

Characteristics:

• Modular push bar type
• For fire and smoke applications
• High durability 2,00,000 cycles
• One central locking point
• For one or double leaf door up to 200 kg
• For all types of  door
• For doors up to 1200mm width in standard
• For doors up to 1400mm width in option
• Steel pulman latch in standard
• Dead latch in standard
• Steel or zinc alloy swing latch
• Zinc alloy cover 38mm width
• Aluminium touch bar 1046mm long
• Bar to be cut
• 73mm projection
• HO function in option
• Micro switch version in option

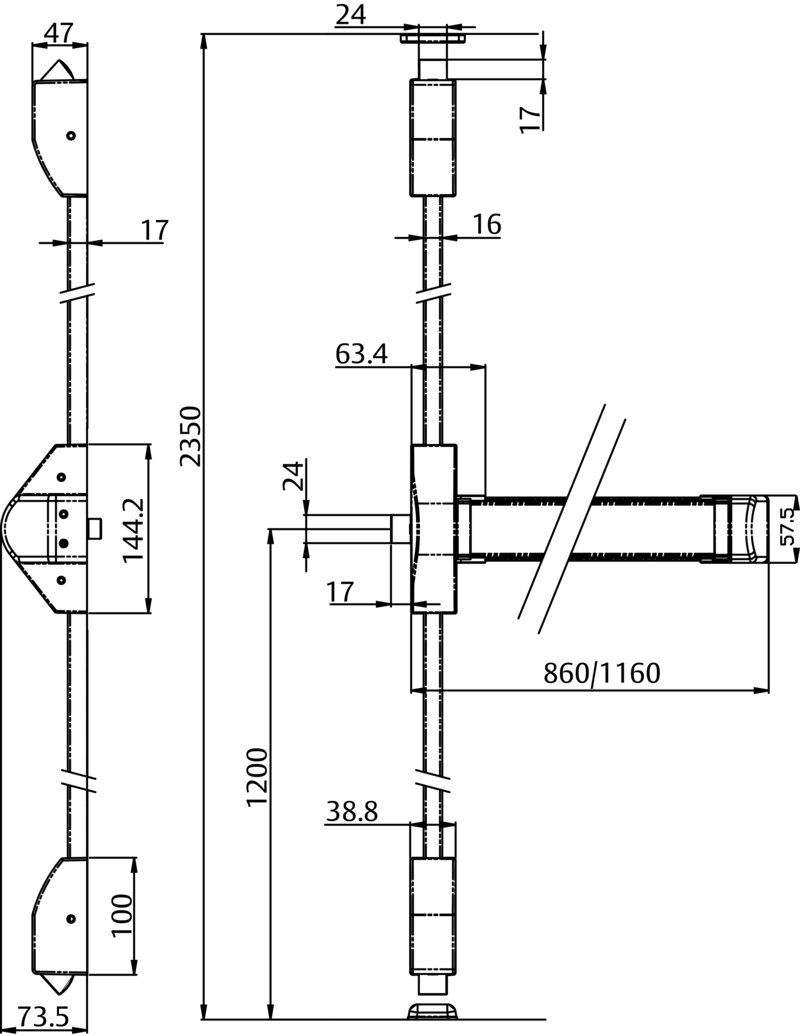

Characteristics of PED 300+PED/GV:

• Set of rods, rod covers and vertical latches
• To fit modular cross bar
• For 2 (top & bottom) vertical locking points installation
• For one or double leaf door
• For doors up to 2350mm high in standard
• For doors up to 3200mm high in option
• Steel pulman latches
