PED 300

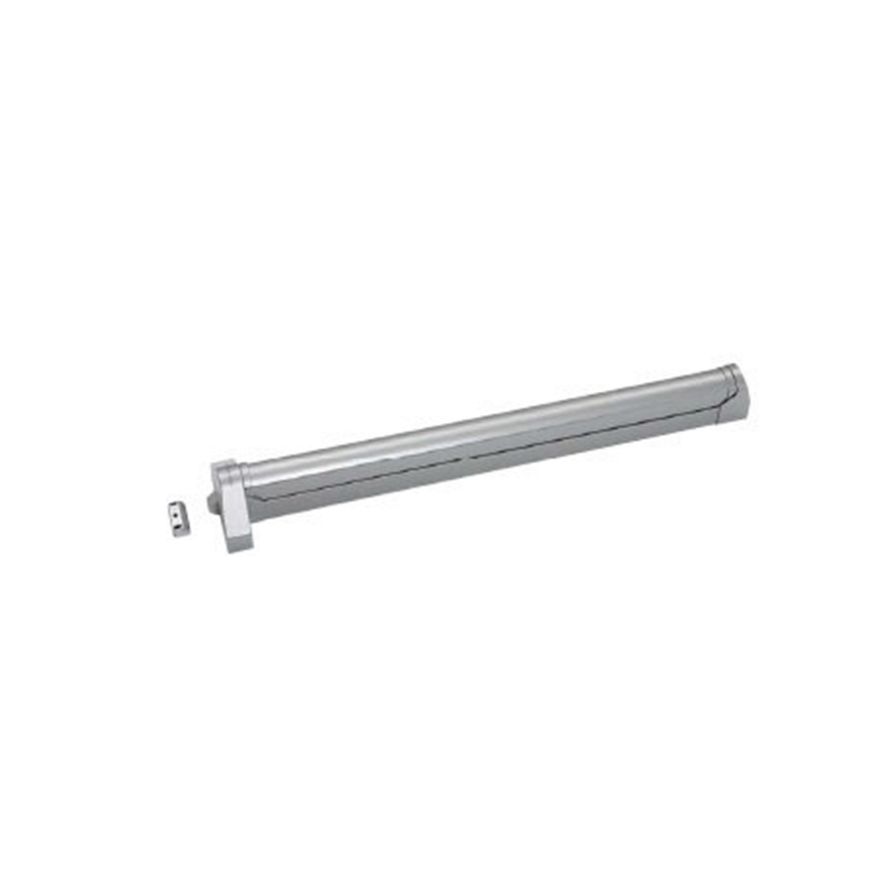

Panic Exit Device PED 300 Push Bar - Rim Device

Characteristics:

• Modular push bar type
• For fire and smoke applications
• High durability 2,00,000 cycles
• One central locking point
• For one or double leaf door up to 200 kg
• For all types of door
• For doors up to 1200mm width in standard
• For doors up to 1400mm width in option
• Steel pulman latch in standard
• Dead latch in standard
• Steel or zinc alloy swing latch
• Zinc alloy cover 38mm width
• Aluminium touch bar 1046mm long
• Bar to be cut
• 73mm projection
• HO function in option
• Micro switch version in option
