Mortise Lockcase AA 2403 Series
Mortise Lockcase AA 2400 Series
Mortise Lockcase AA 2404 Series
Model no.: AA 2404 3025 / AA2404 3085 / AA2404 3585

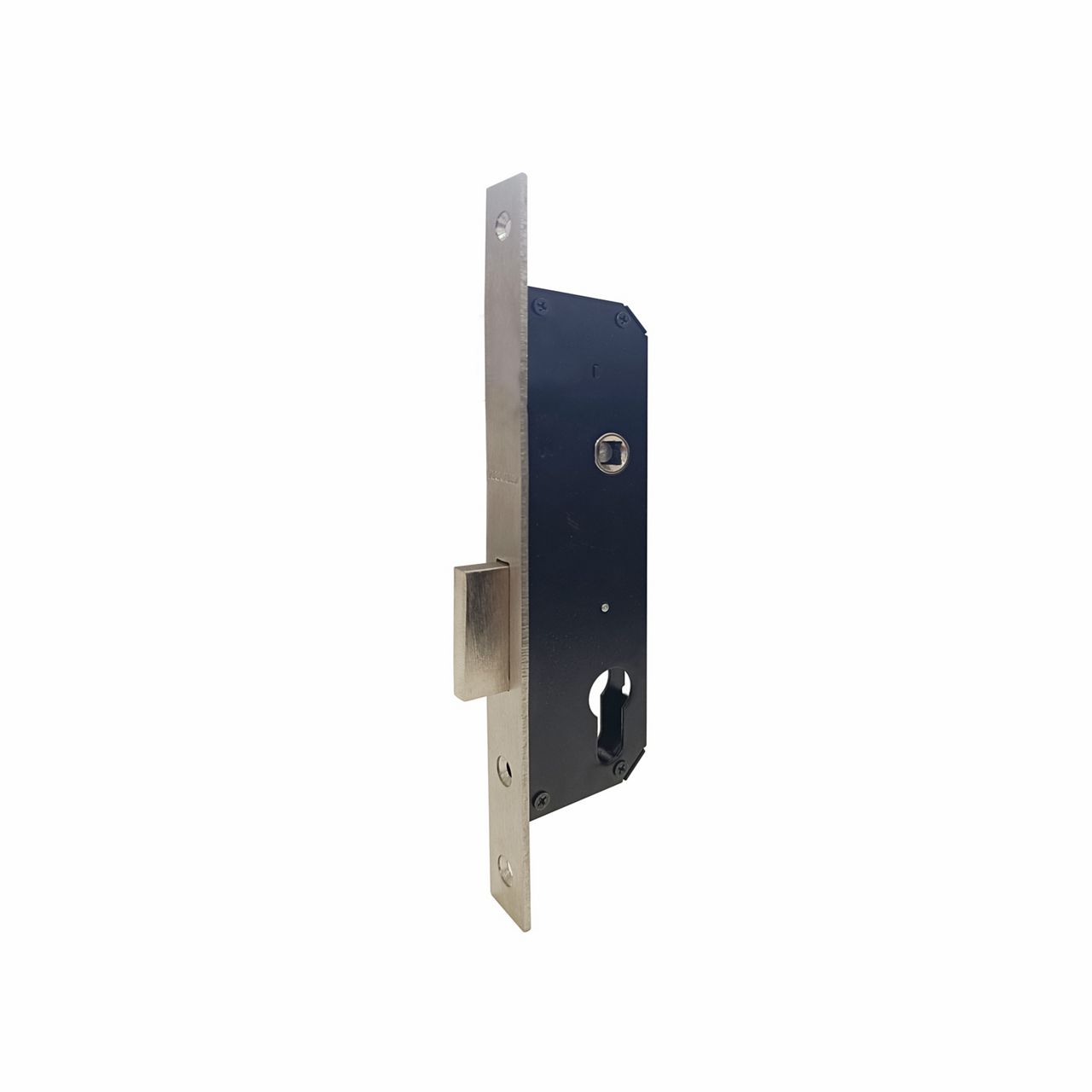

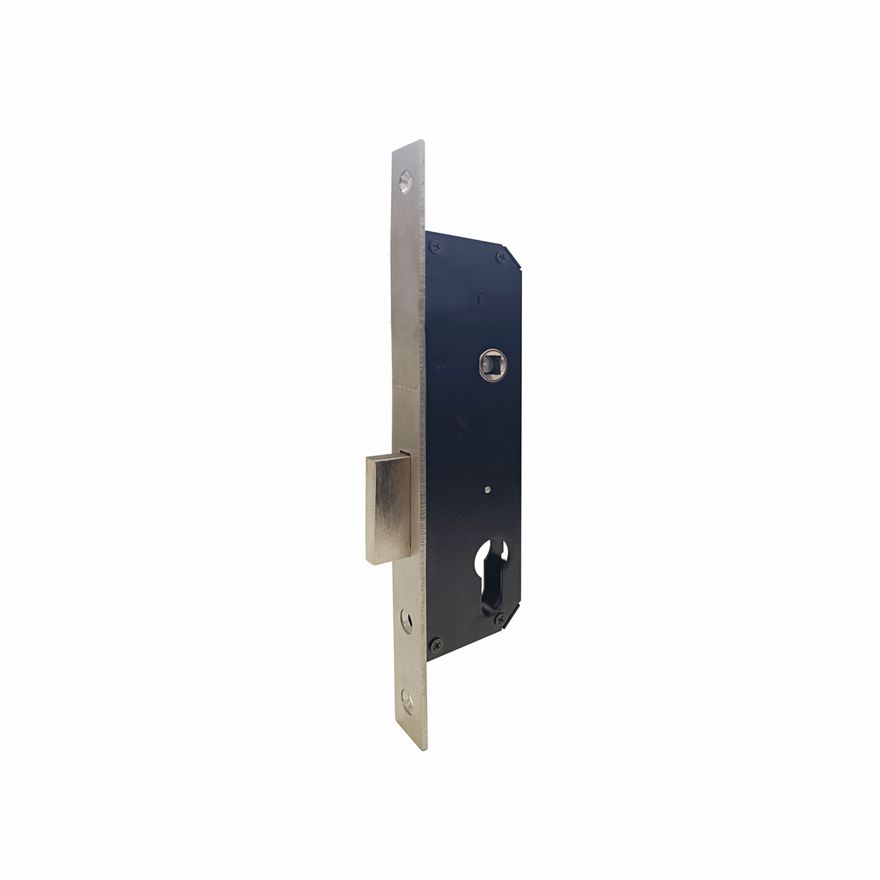

Description: AA2404 ASSA ABLOY Narrow stile Mortise Dead Lock
Material Specification: Front Plate: SS202 Grade
Striker Plate: SS202 Grade
Dead bolt: Zinc
Finish: Satin Stainless Steel , Matt Black , SS Matt Black

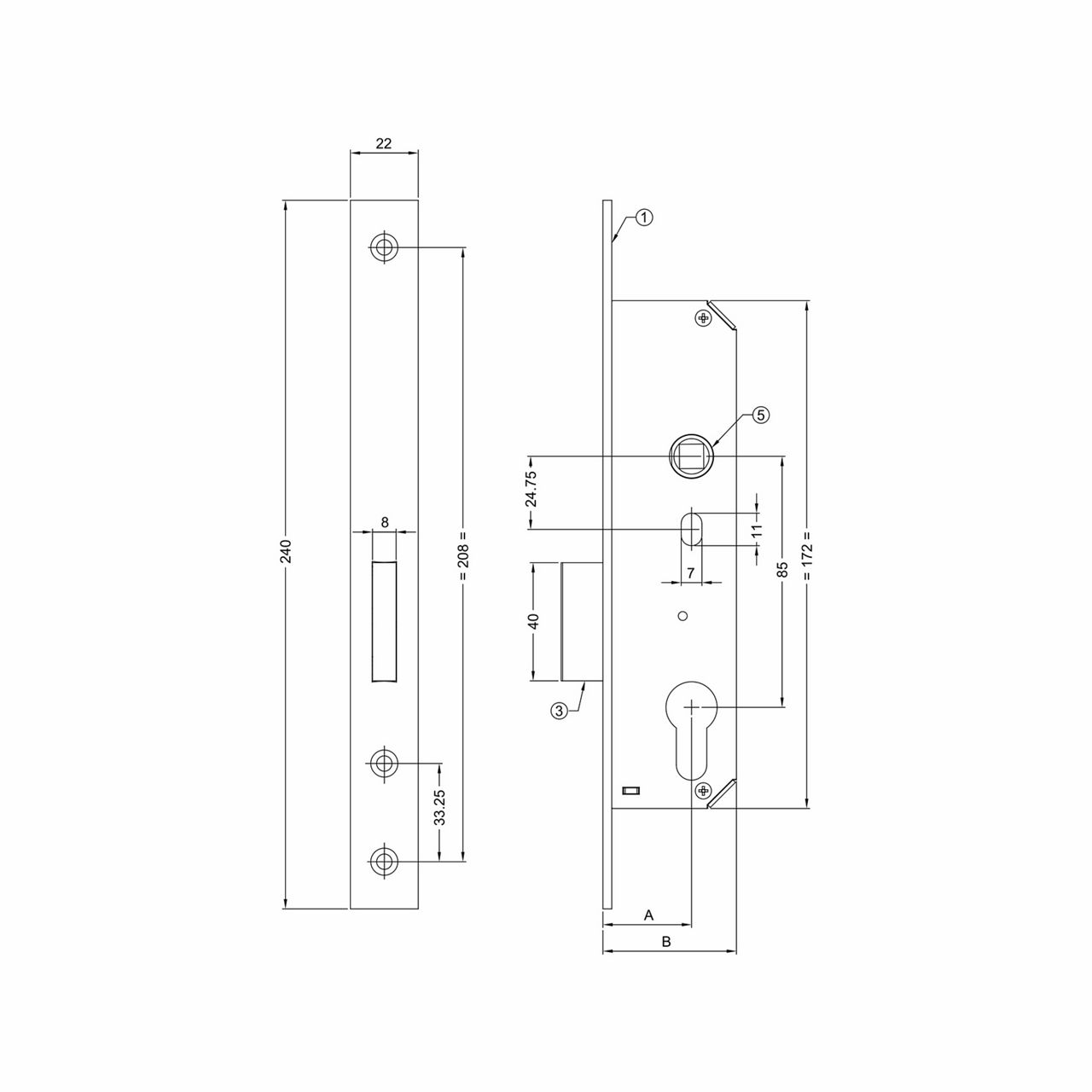

Dimension Chart
| SR NO | BST | DIM 'A’ | DIM 'B’ |
| 1 | 25mm | 25 | 35.2 |
| 2 | 30mm | 30 | 40.2 |
| 3 | 35mm | 35 | 45.2 |
