Narrow Stile Mortise Lock
Mortise Lockcase
Mortise Lockcases

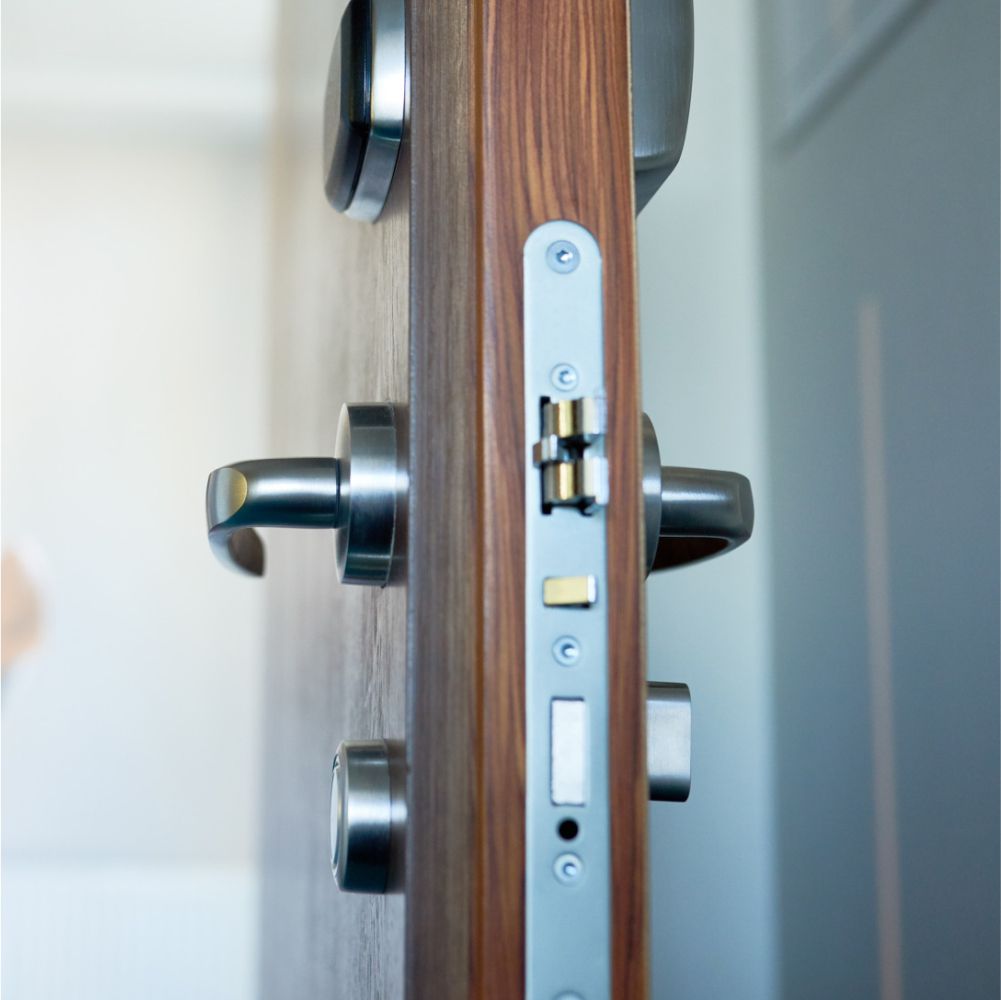

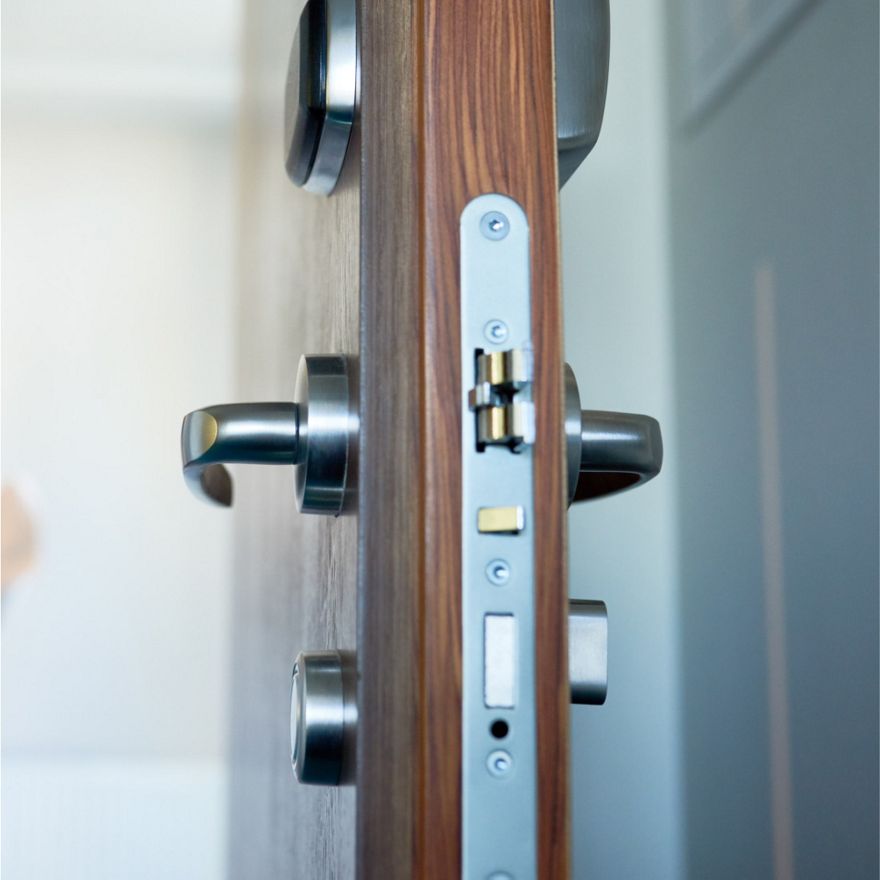

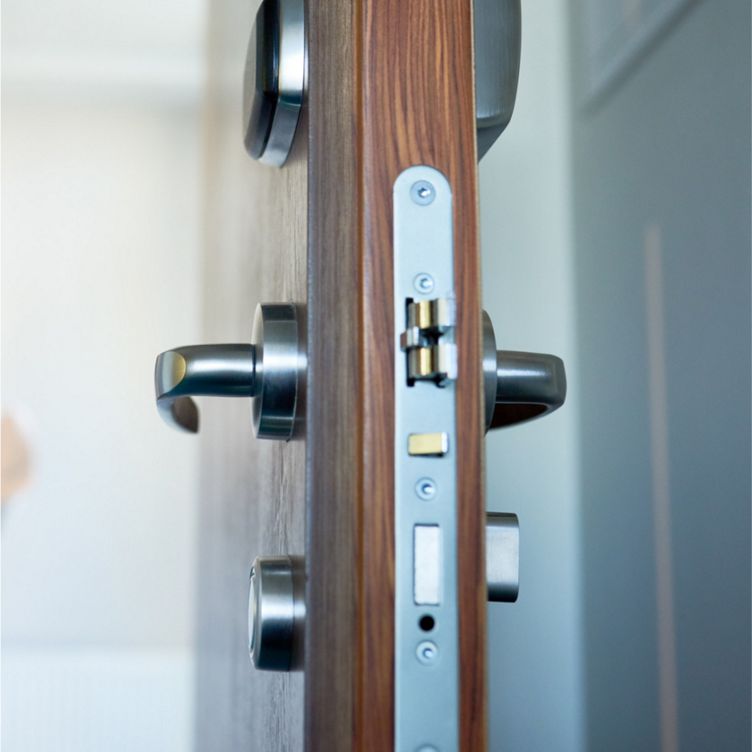

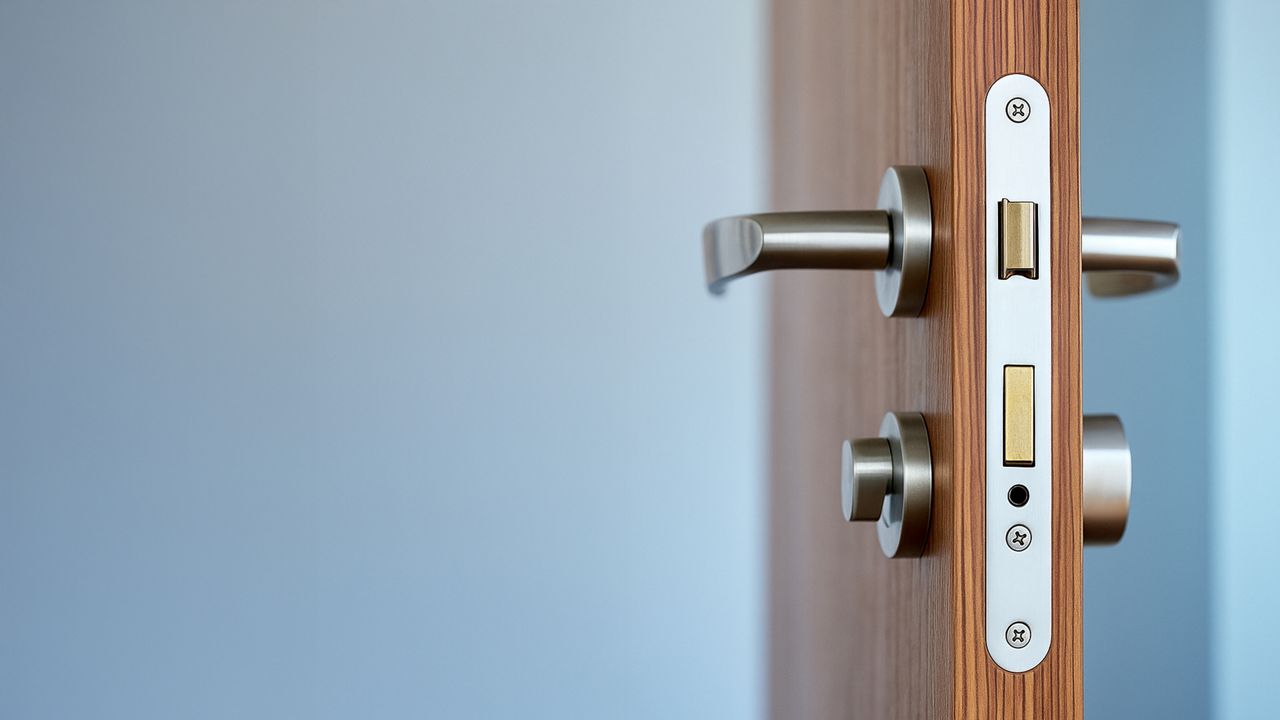

A mortise lock is a type of locking mechanism installed within a mortise pocket in the edge of a door. It consists of a lock body containing the internal components like the latch and deadbolt, which are operated by a key. Mortise locks offer robust security and durability due to their construction, making them suitable for both residential and commercial applications. The trim set, including the knob or lever handles, complements the functionality of the mortise lock.
6 results
Mortise Lock case N1550 Series
Mortise Lock case N1550 SeriesMortise Lockcase Sliding door lock

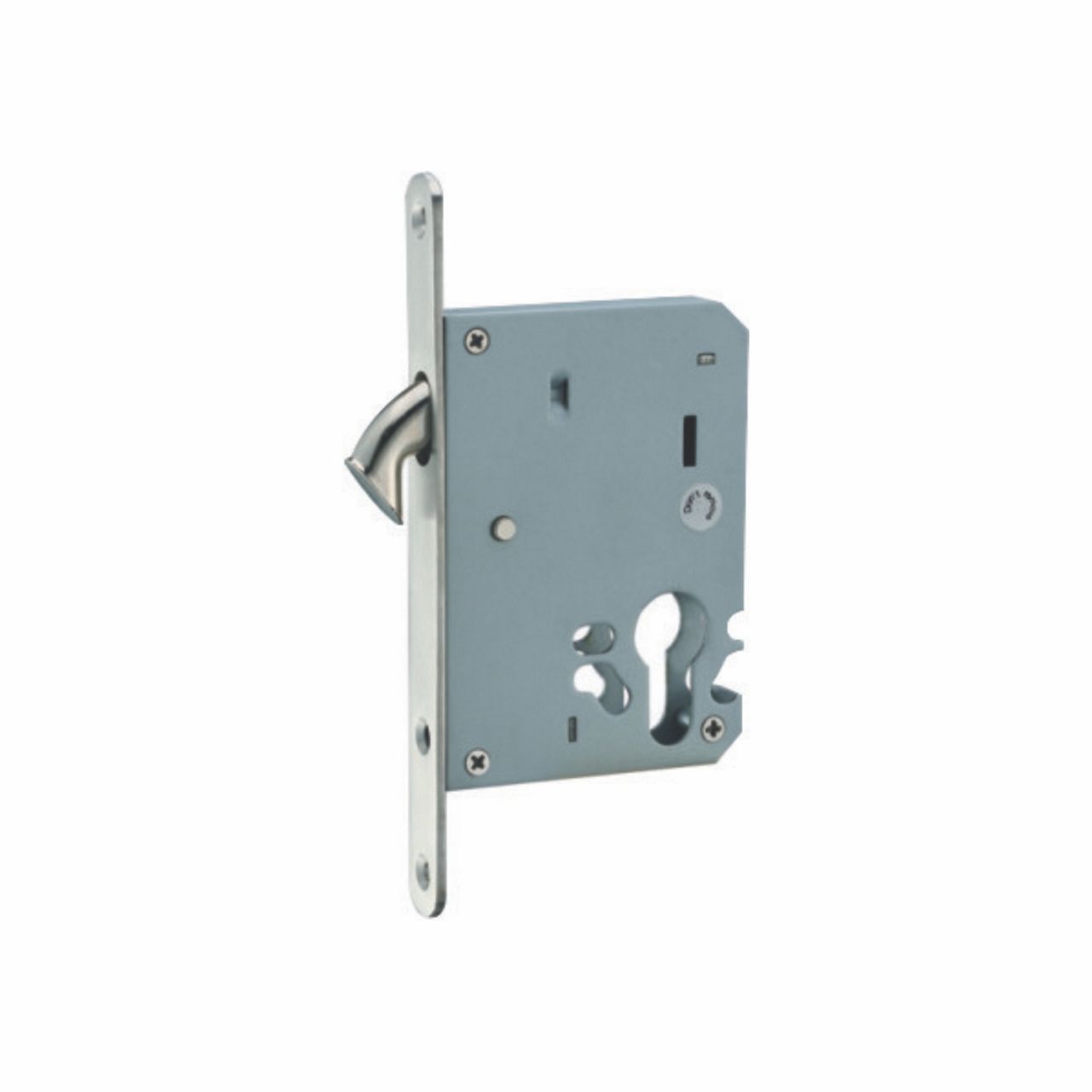

Sliding Door LockcaseMortise Lock case L100 Series
Application
ASSA ABLOY L100 Series Mortice Lock is designed for high frequency usage applications such as public access buildings where deliberate abuse likely takes place.
Specification and Features
- Modular case across functions for rapid door preparing and installation
- 72mm centers, backset in 50/55/60/65mm
- 8mm follower with spindle gripping function
- Reversible latchbolt in solid stainless steel
- Double throw deadbolt in solid stainless steel with 20mm Projection
- Suitable for sprung and most un-sprung lever furniture
- Stainless steel faceplate and strike in square and radius version (radius version improves door prep efficiency with machine routing)
- Compatible with bolt through furniture and escutcheons of 38mm centers
Mortise Lock case L200 Series
Application
ASSA ABLOY L200 Series Mortice Lock is designed for medium frequency usage applications
Specifications and Features
- Modular case across functions for rapid door prepping and installation
- 72mm centers, backset in 50/55/60/65mm
- 8mm follower with spindle gripping function
- Reversible latchbolt in solid stainless steel
- Double throw deadbolt in solid stainless steel with 20mm Projection
- Suitable for sprung and most un-sprung lever furniture
- Stainless steel faceplate and strike in square and radius version (radius version improves door prep efficiency with machine routing)
- Compatible with bolt through furniture and escutcheons of 38mm centers
- Matching finish on latchbolt and deadbolt
Mortise Lock case L300 Series
Mortise Lock case L300 Series
Showing 6 of 6
