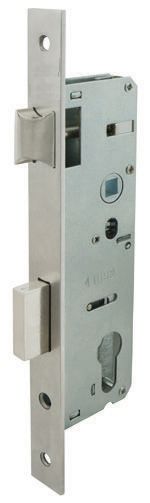

AA5103 2085, AA5103 2585, AA5103 3085 AA5103 3585
Entrance Lockcase
Key features:
- Made of SS 304
- 4 different functions
- 4 Backset options
- Non-handed - latch reversible
- Compliant to BS EN 12209
Benefits:
- High corrosion resistance
- High durability
- Versatile usage
Technical details:
- Center to center - 85mm
- Backset - 20mm, 25mm, 30mm, 35mm
- Door thickness requried - 35mm to 50mm with the standard screw fixing pack provided
- Fits standard cam euro profile cylinder
- Single throw projection deadbolt - 15mm
- Suitable for hinged aluminium and metal doors
- All mortise lockcases contain suitable strike platesand screws
Description:
AA5101 ASSA ABLOY Narrow profile mortise lockcaseC to C: 85mm
- Finish: SSS - Satin Stainless Steel
- Outside: Opened by handle when unlocked.Lever withdraws latchbolt. Key locks or unlocksbolt, key withdraws latchbolt.
- Inside: Opened by handle when unlocked. Lever handle at one side withdraws latchbolt. Key or turnlocks to unlocks the bolt, key or turn locks to withdraw latchbolt.
| Model no. | Backset |
| AA5103 2085 | 20mm |
| AA5103 2585 | 25mm |
| AA5103 3085 | 30mm |
| AA5103 3585 | 35mm |
