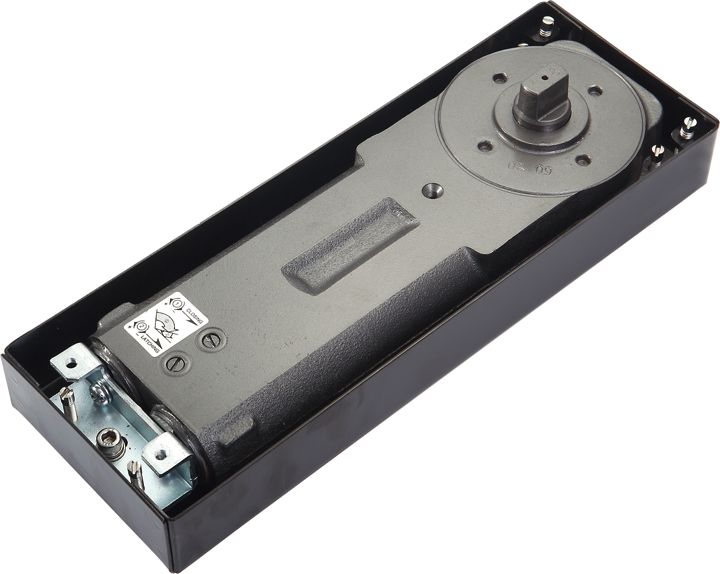

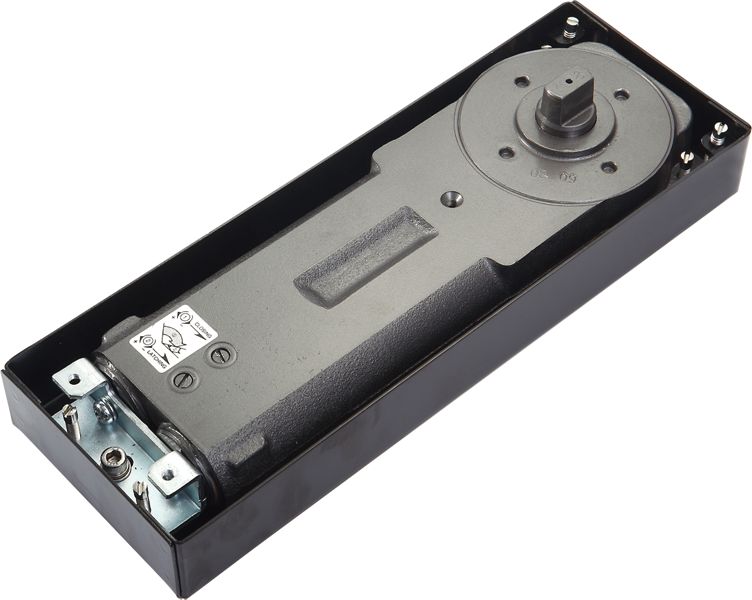

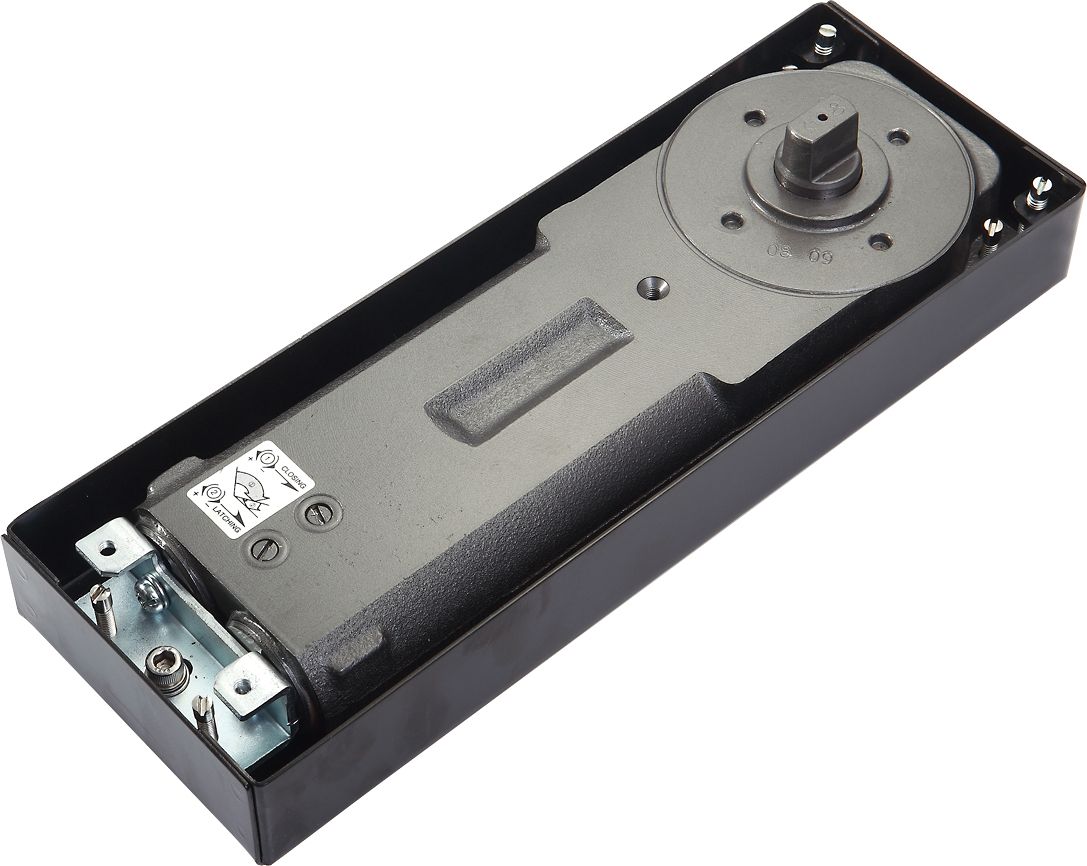

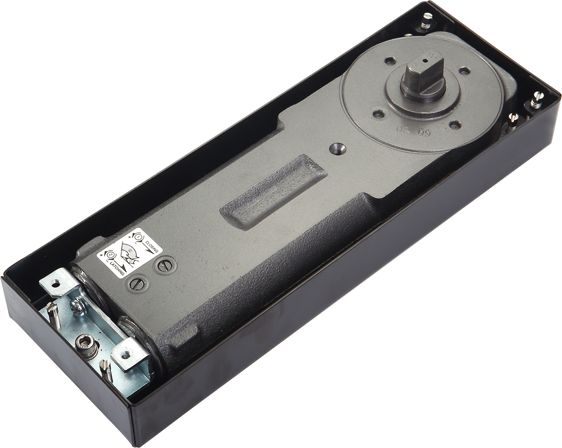

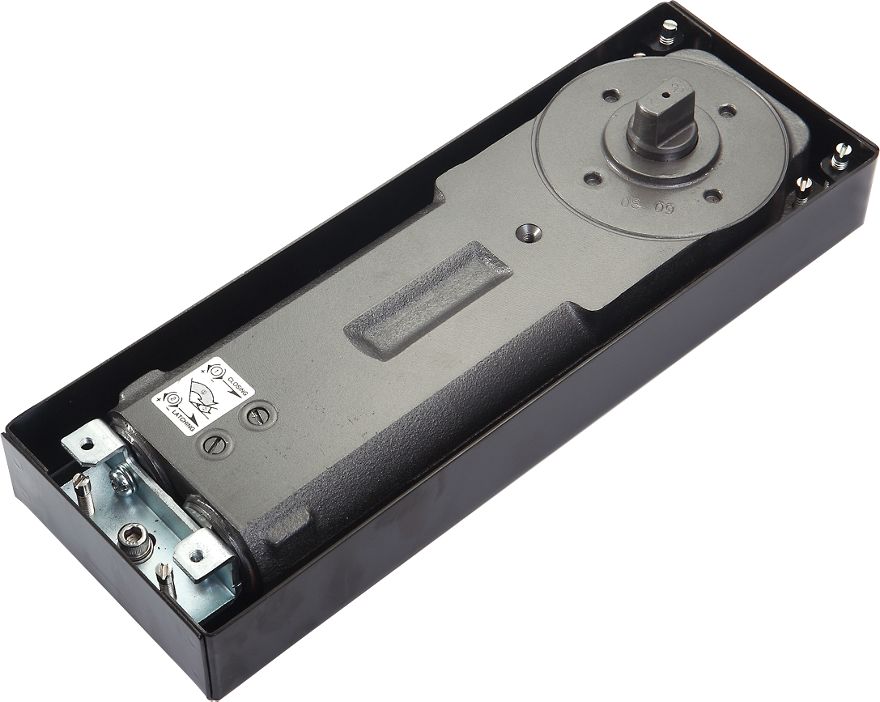

AF603

• Floor spring with double action
• Floor spring with power fixed size 3
• Maximum door weight 105kg

Characteristics of AF603 Series:

• Double action floor spring
• Cast iron body
• Dual valve adjusting, closing and latching speed
• Maximum opening angle in each direction of 130°
• Applicable for timber, glass and aluminum door
• Power fixed size 3
• Standard spindle included is 10mm
• Hot zinc plated steel
• Satin stainless steel (Standard) - US32D
• Optional Polished stainless steel - US32
• Adjustment within cement box
• Height 4mm adjustment
• Width 6mm adjustment
• Left to right 10mm adjustment
• Max. weight of door: 105kg
