Certified security
Compliant with European standards for home security and rigorous in-house testing at ASSA ABLOY labs.

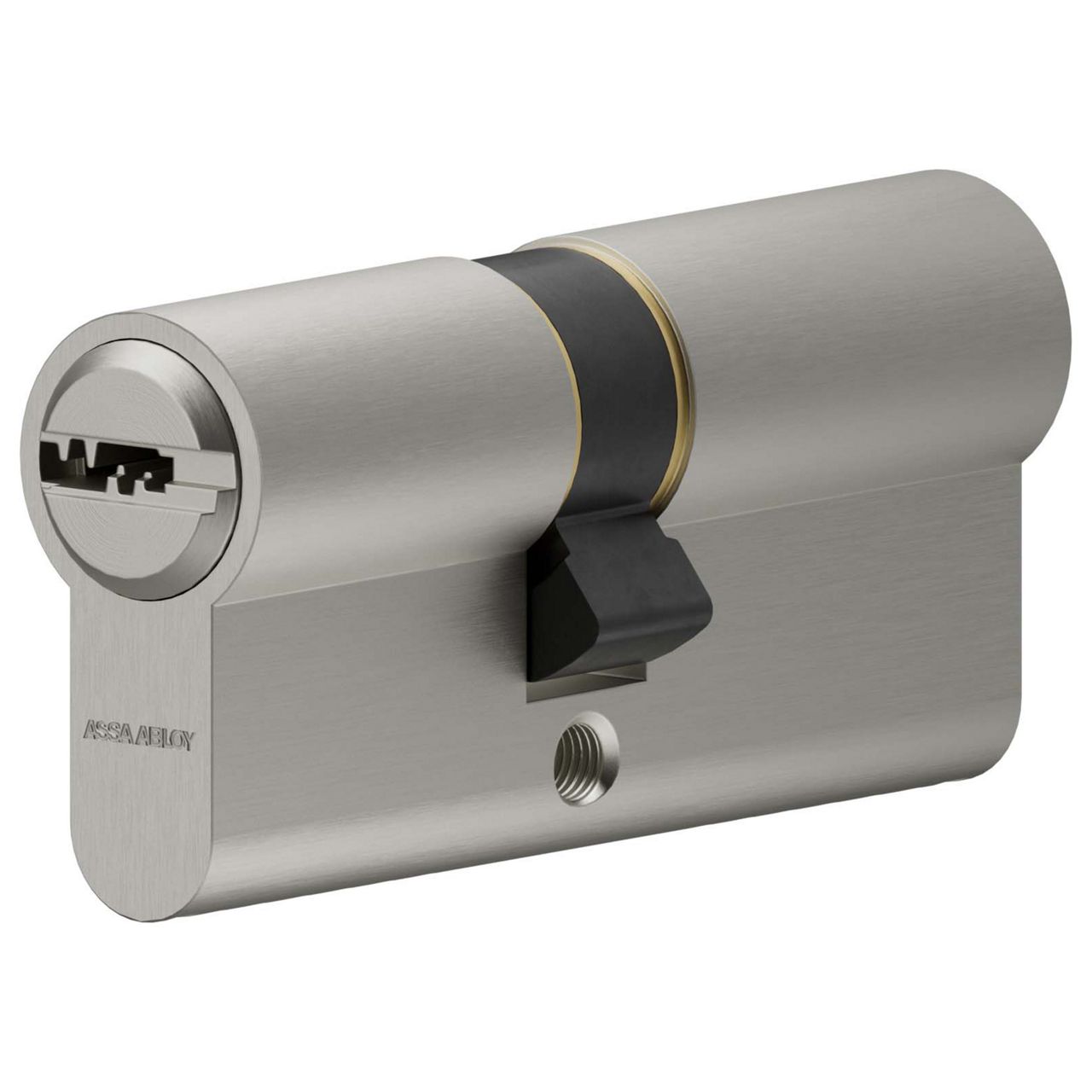

CY100 Double Euro Cylinder
Durable and secure, the CY100 Double Euro Cylinder provides the protection you need to lock your building's doors ‒ inside or out.
Optional anti-snap protection offers additional security. If attacked, the cylinder breaks securely, keeping the core protected and allowing homeowners to enter with their key without having to wait for a locksmith.
Applications:
- External and internal doors
- Keyed Alike (KA), Keyed to Differ (KD), small Master Key System (MKS)
Optional functionality:
- Anti-snap cylinder
- Emergency clutch
- Free wheeling cam
- Gear wheel cam
- Construction keying
Optional: Anti-snap cylinder
Optional: Gear wheel

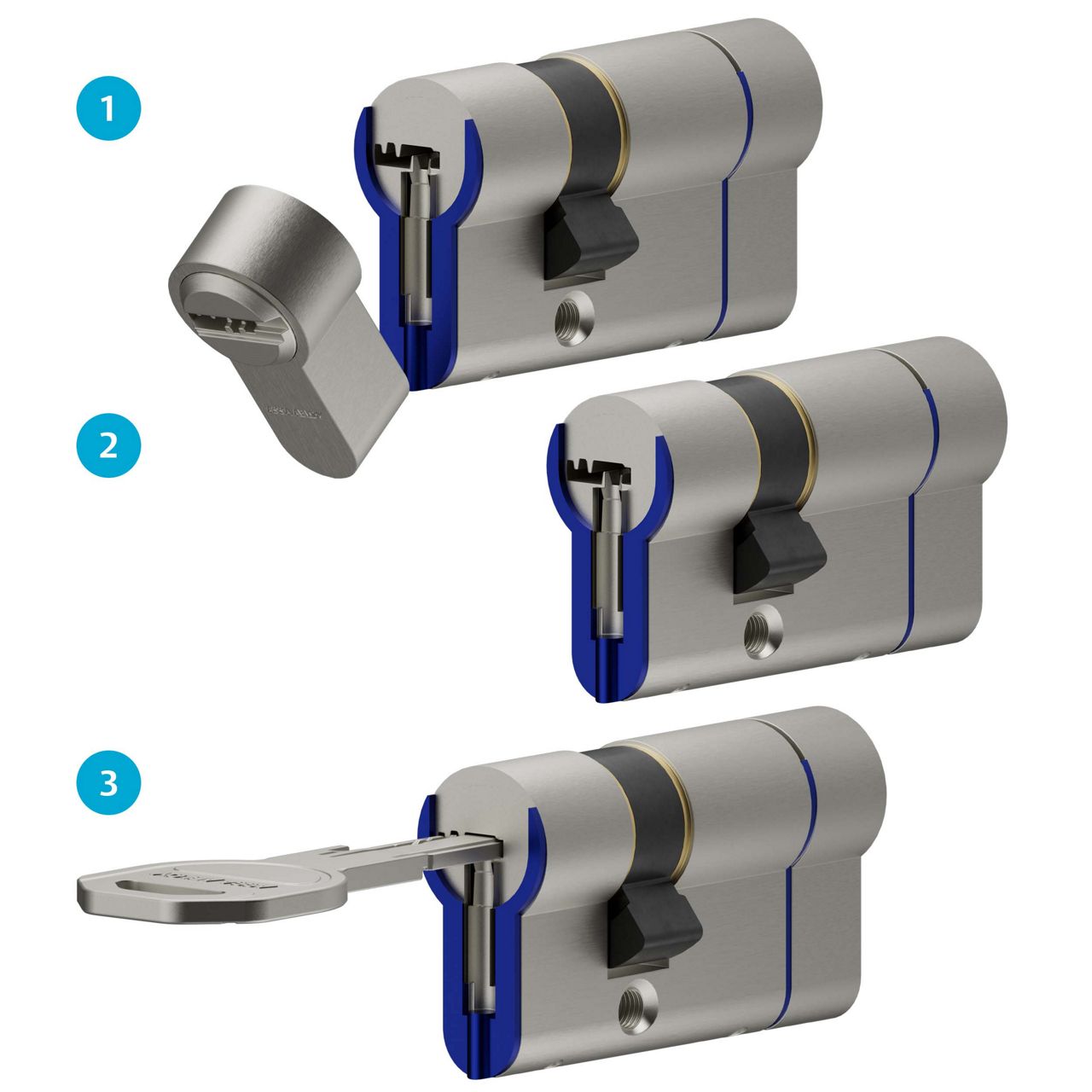

Anti-snap functionality
Attack resistance
Secure anti-pick design with 15 kN pulling resistance, 5 minutes’ drilling resistance and bumping resistance (for keyed alike and keyed to differ).
Durable design
Durable design with 96-hour corrosion resistance and tested for 100,000 lock/unlock cycles.
Flyer and Datasheet
Technical Drawings
Feature Detail Security SKG** certified (only for non anti-snap) | EN 1303:2015 tested, 1 6 - B - C 5 D | Cam DIN 18252 compliant Attack resistance Anti-pick | Anti-drill ‒ 5 minutes' drilling resistance | Anti-pull ‒ 15 kN pulling resistance | Anti-bump (only for KA and KD) Number of keys 3 Max. number of key differs 39,411 Max. number of MKS profiles 4 Number of pins 6 Raw material Brass Finish Satin Nickel Cylinder length Minimum: 31/31 mm | Maximum: 76/76 mm | Increments: 5 mm Weight 165 g
