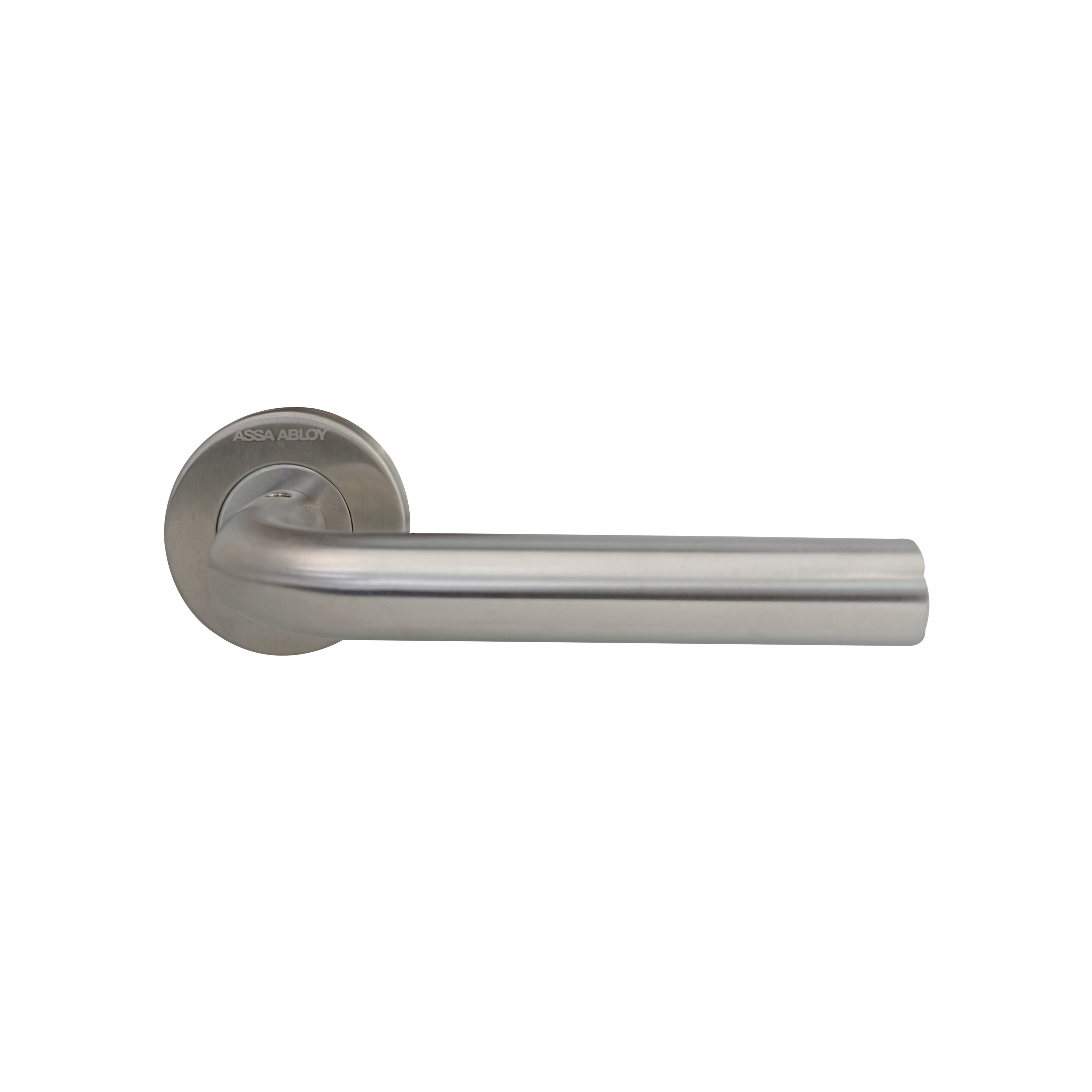

ATL - 020 / ATL - 020 S

Tubular Series Lever Handle

Technical details:

• Door thickness required - 30mm-50mm
• Spindle - 8mm x 8mm
• Suitable for hinged timber, metal doors
• All lever handles come complete with two euro cylinder escutcheons
• Roses are designed to fit back to back and fixing is concealed by the use of a slip on outer rose
• Finish - US32D

Details:

• Model no.: ATL - 020 / ATL - 020 S
• Description: Lever on Rose

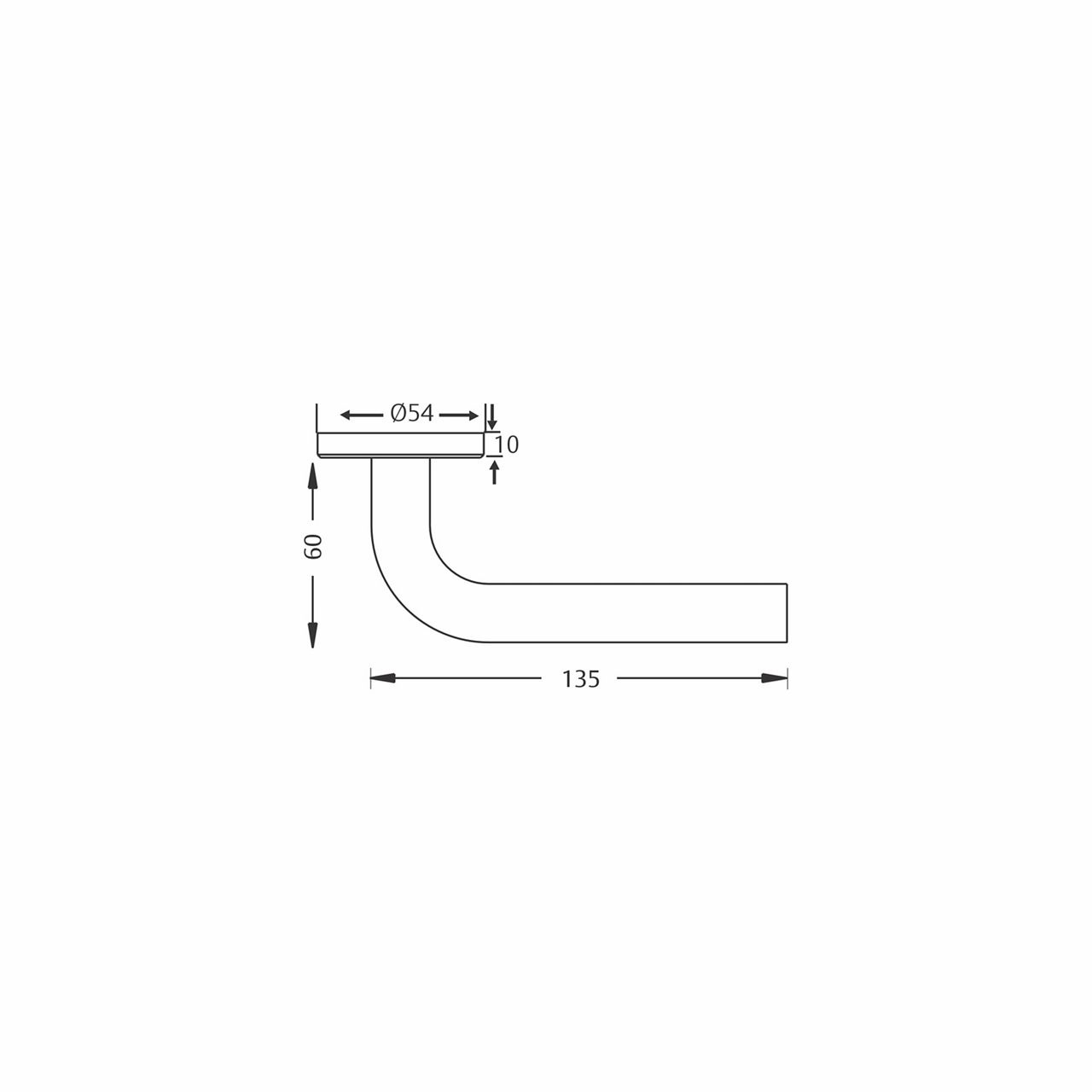

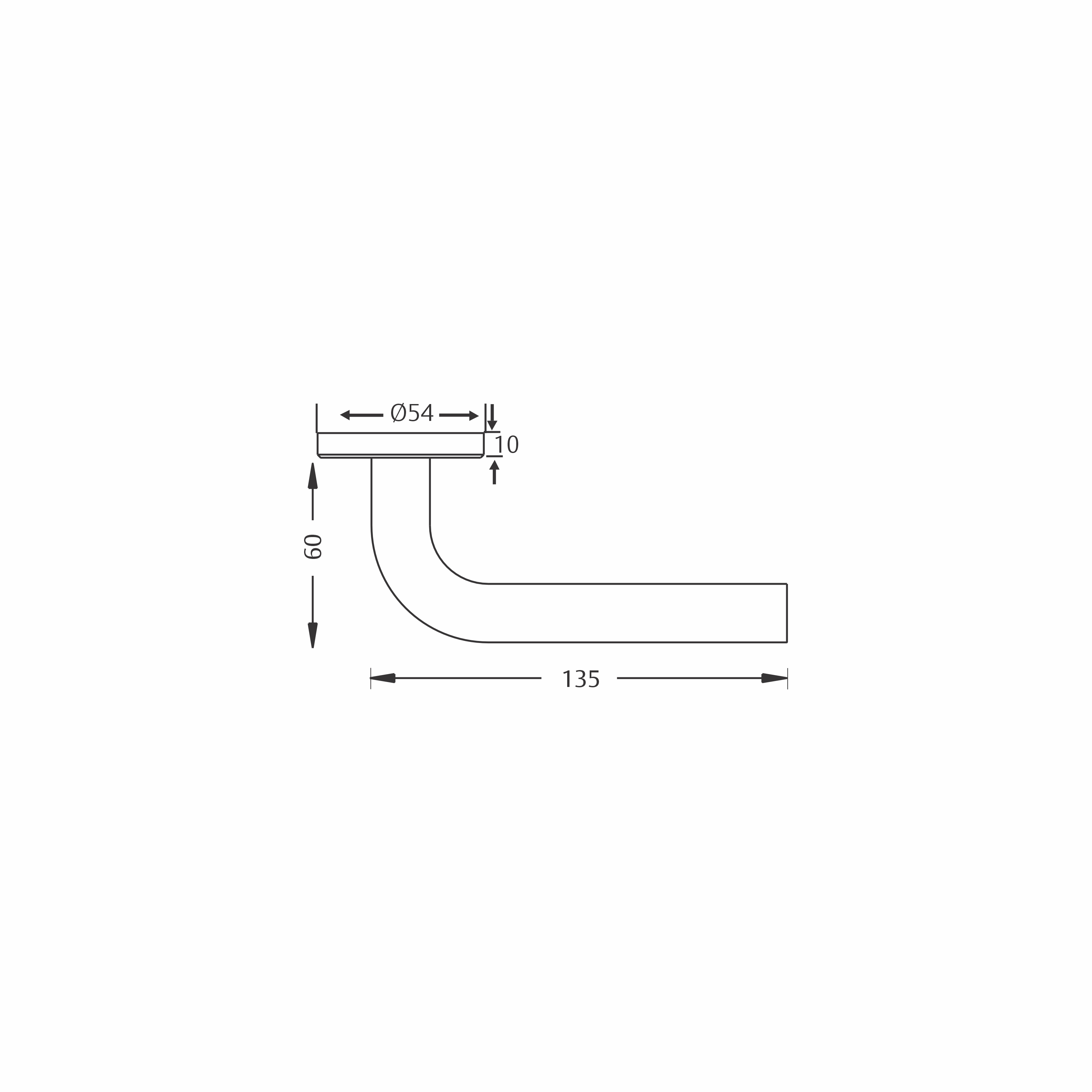

• Dimensions: Length - 135mm
• Spindle: 8mm x 8mm Straight Spindle Standard
• Round Rose: Ø54mm x 10mm
• Finish: Satin Stainless Steel - US32D
