Euro Profile Cylinders are used to access the door latch and bolt. Cylinders are fully mortised inside the lock and the cylinder cam operates the bolt of a mortise lock when right key is inserted in the plug to access the door.
ASSA ABLOY range of euro profile fixed cam cylinders suitable for both Commercial and Residential building projects.
Standard euro profile dimension according to DIN18252.
Base Material - Solid brass body and keys.
Various lengths available for different door thickness.
5-pin construction with maximized key combination and security.
Keyed alike and keyed to different available as per required specifications.
Each euro profile cylinder is supplied with 3 keys (standard)
Finish - Available in Satin Nickel Finish

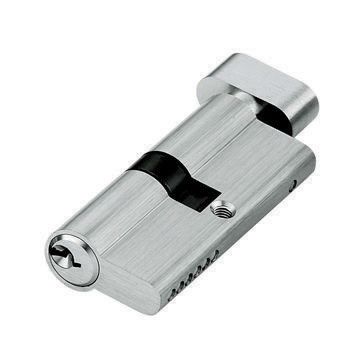

Euro Profile Single Cylinder With Thumbturn Pin Tumbler Technology - 5 pins
Case Length - 30/30 mm
Overall Length - 60 mm
Master Keying - Optional
Finish - Satin Nickel
