Certified security
Compliant with European standards for home security and rigorous in-house testing at ASSA ABLOY labs.

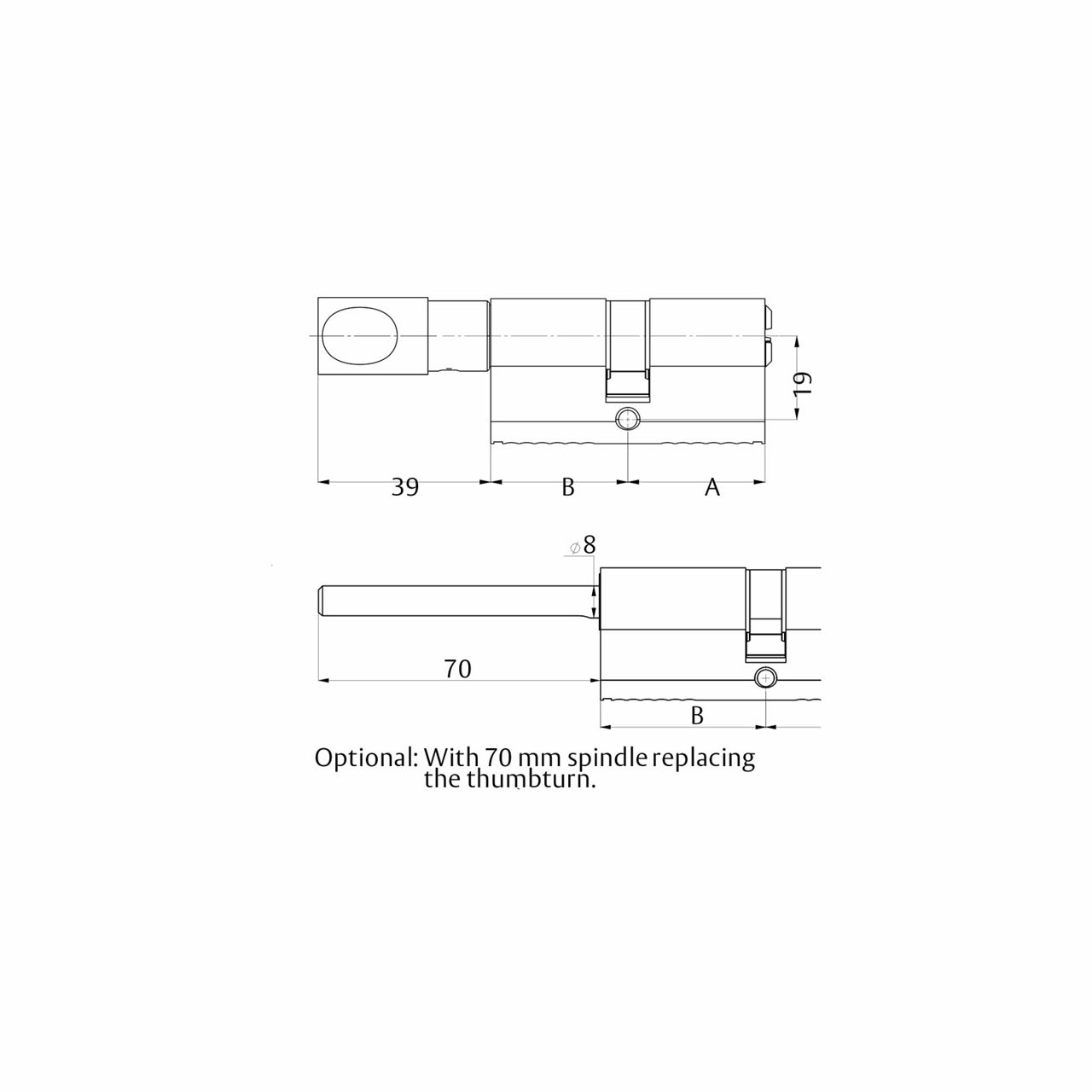

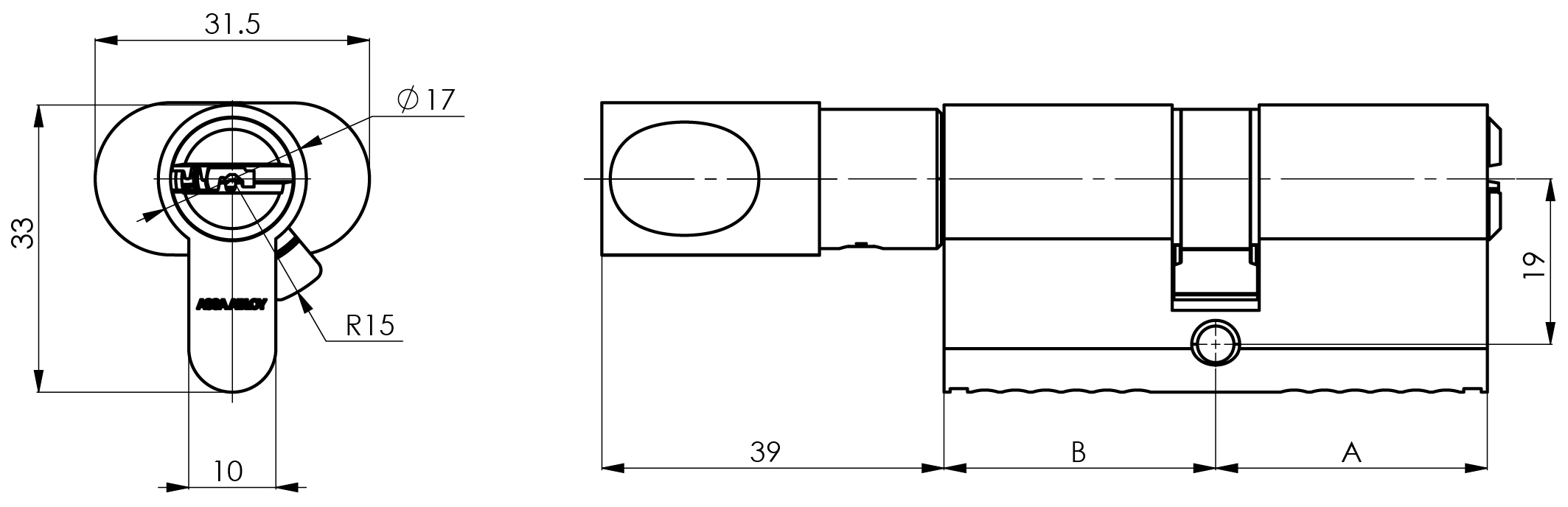

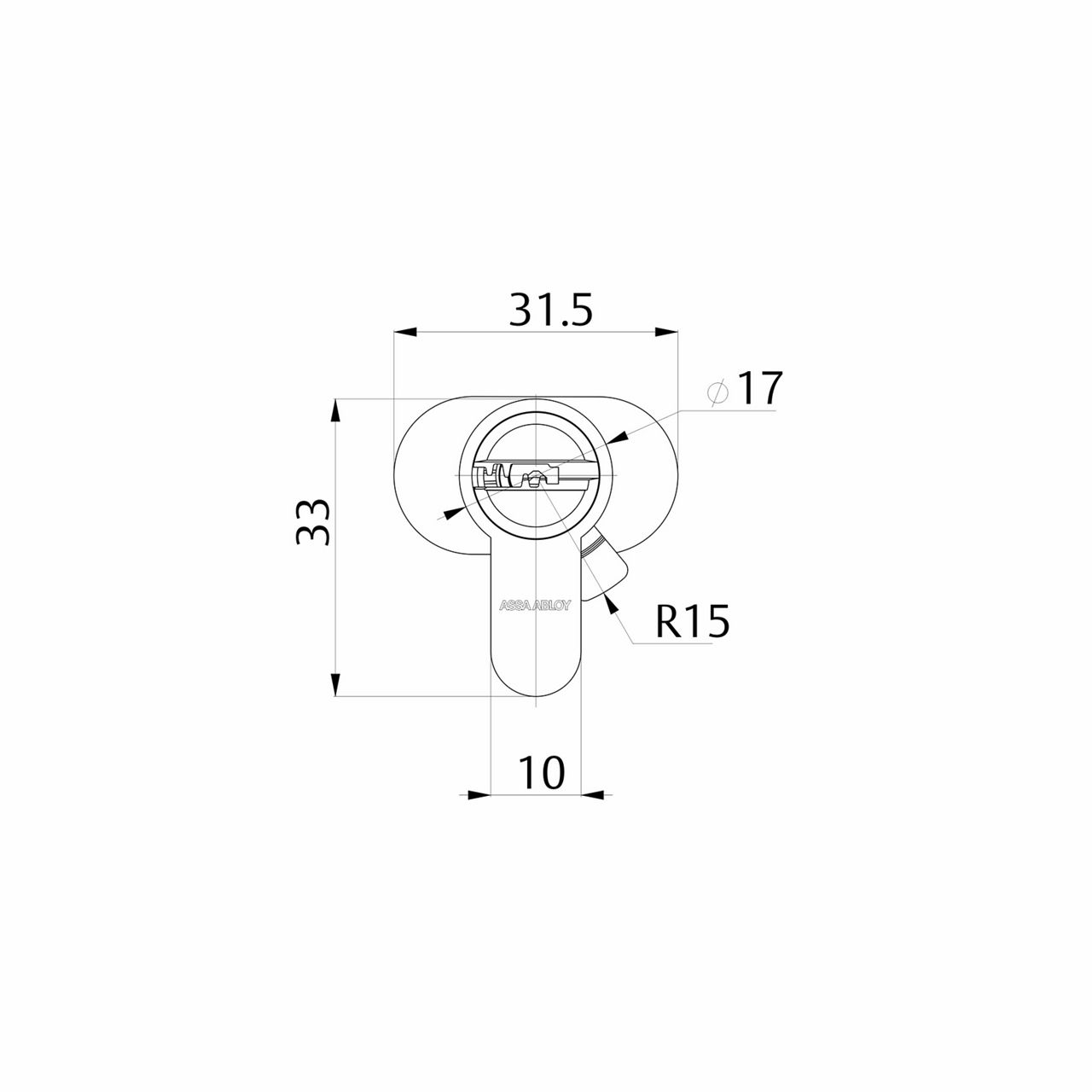

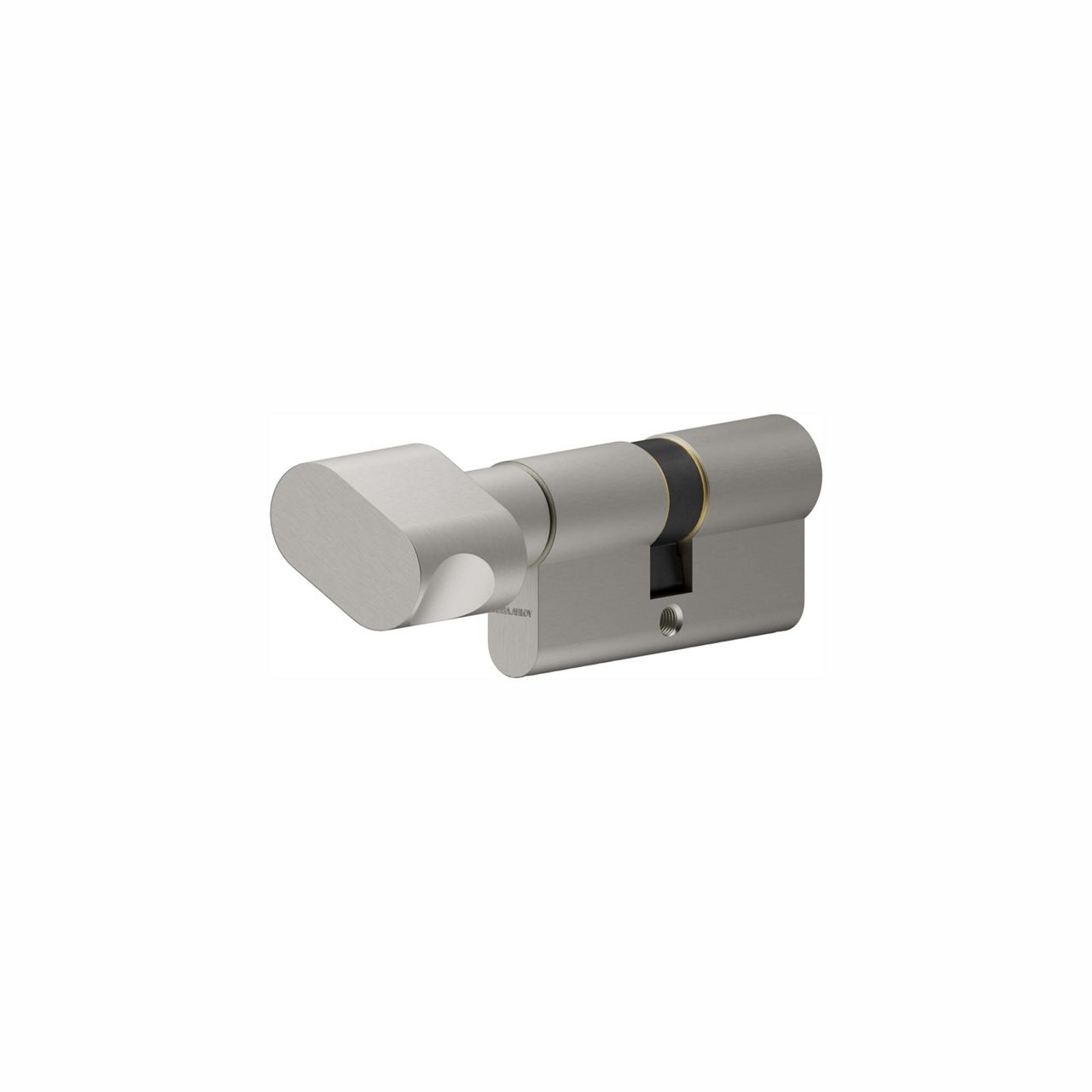

CY100 Thumbturn Double Euro Cylinder
A secure solution when privacy is required: CY100 Thumbturn Cylinders securely lock doors and can quickly unlock to provide a faster exit.
An optional coin slot ensures the lock can also be opened from outside in an emergency.
Applications:
- Internal and external doors
- Keyed Alike (KA), Keyed to Differ (KD), small Master Key System (MKS)
Optional functionality:
- Anti-snap design
- Gear wheel cam

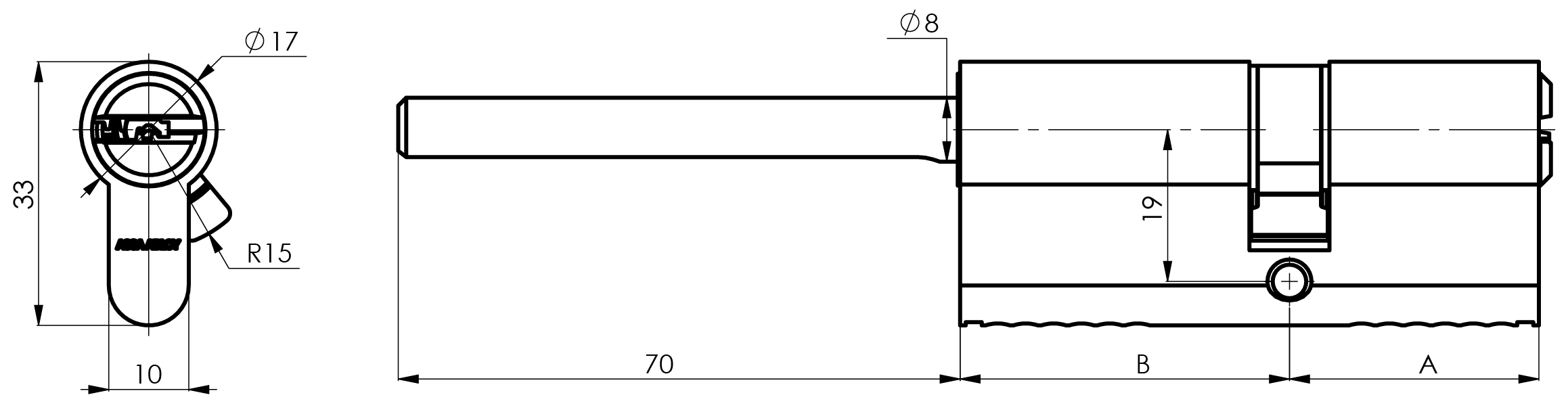

- 70 mm spindle
- Emergency release coin slot
- Construction keying
Attack resistance
Secure anti-pick design with 15 kN pulling resistance, 5 minutes’ drilling resistance and bumping resistance (for keyed alike and keyed to differ).
Reliable construction
Durable design with 96-hour corrosion resistance and tested for 100,000 lock/unlock cycles.
Feature Detail Security SKG** certified (only for non anti-snap) | EN 1303:2015 tested, 1 6 - B - C 5 D | Cam DIN 18252 compliant Attack resistance Anti-pick | Anti-drill ‒ 5 minutes' drilling resistance | Anti-pull ‒ 15 kN pulling resistance | Anti-bump (only for KA and KD) Number of keys 3 Max. number of effective key differs 39,411 Max. number of MKS profiles 4 Number of pins 6 Raw material Brass Finish Satin Nickel Cylinder length Minimum: 31/31 mm | Maximum: 76/76 mm | Increments: 5 mm Thumbturn dimensions 31.5 x 17.5 x 39 mm (W x H x D) Weight 280 g
