Certified security
Compliant with European standards for home security and rigorous in-house testing at ASSA ABLOY labs.

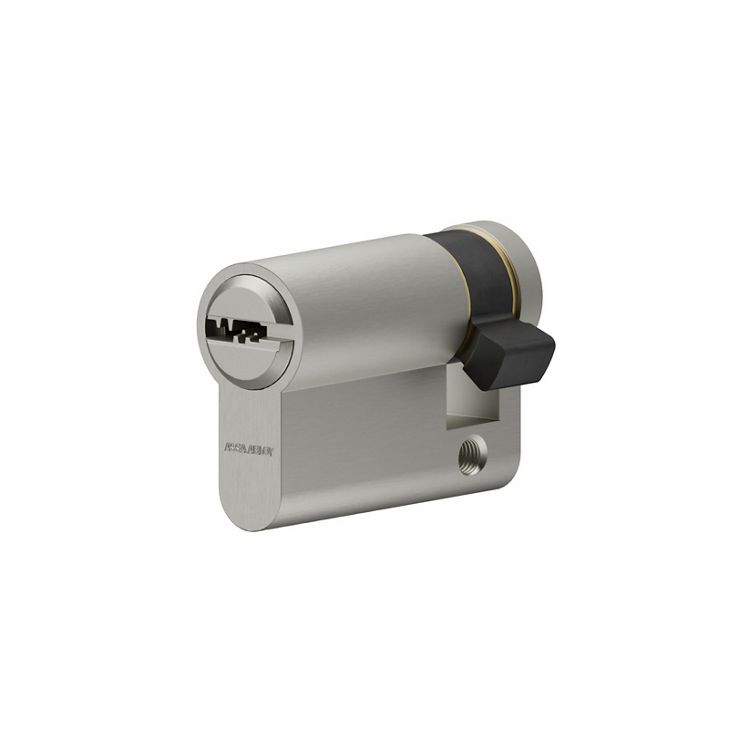

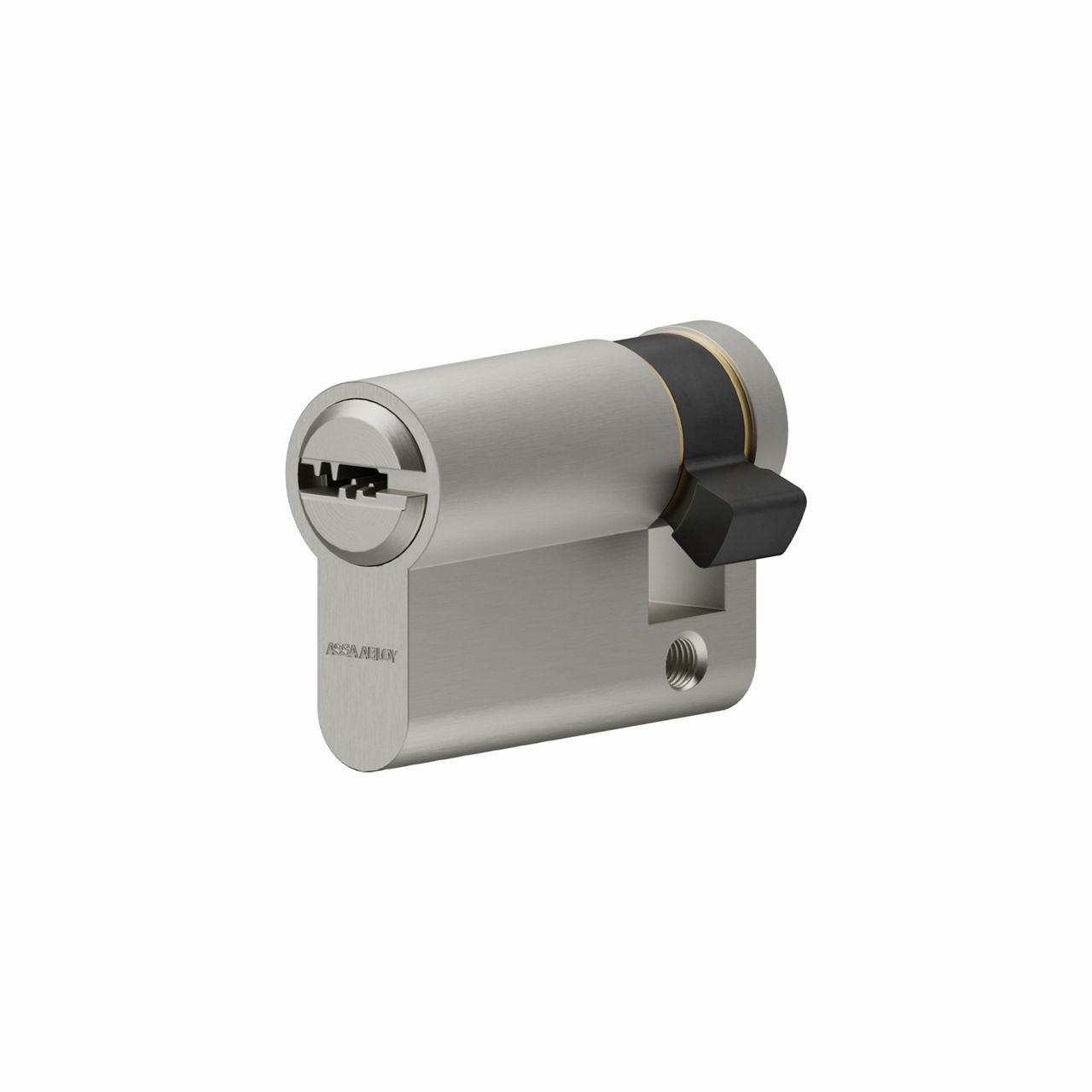

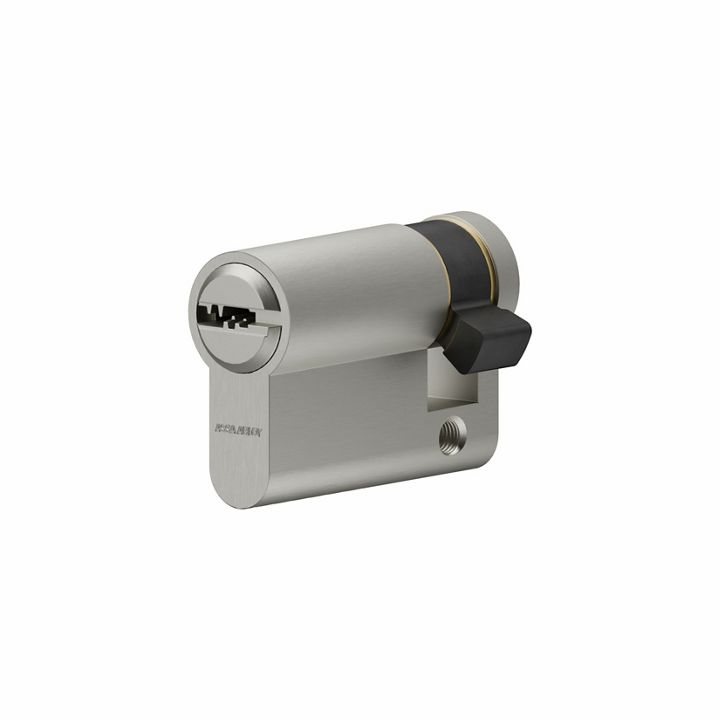

CY100 Single Euro Cylinder
Highly durable 6-pin cylinder with the performance to secure your building.
Keep your interior spaces secure with the CY100 Single Euro Cylinder.
The optional multi-position cam allows to turn the cam into the application's required position.
Applications:
- Internal doors
- Keyed Alike (KA), Keyed to Differ (KD), small Master Key System (MKS)
Optional functionality:
- Anti-snap design
- Adjustable cam ‒ 12 positions
- Gear wheel cam
- Construction keying
- Thumbturn variant
Attack resistance
Secure anti-pick design with 15 kN pulling resistance, 5 minutes’ drilling resistance and bumping resistance (for keyed alike and keyed to differ).
Reliable construction
Durable design with 96-hour corrosion resistance and tested for 100,000 lock/unlock cycles.
Feature Detail Security SKG** certified (only for non anti-snap) | EN 1303:2015 tested, 1 6 - B - C 5 D | Cam DIN 18252 compliant Attack resistance Anti-pick | Anti-drill ‒ 5 minutes' drilling resistance | Anti-pull ‒ 15 kN pulling resistance | Anti-bump (only for KA and KD) Number of keys 3 Max. number of effective key differs 39,411 Max. number of MKS profiles 4 Number of pins 6 Raw material Brass Finish Satin Nickel Cylinder length Minimum: 31/9 mm | Maximum: 71/9 mm | Increments: 5 mm Weight 115 g
