  • CHARACTERISTICS:

    • Full range of sizes

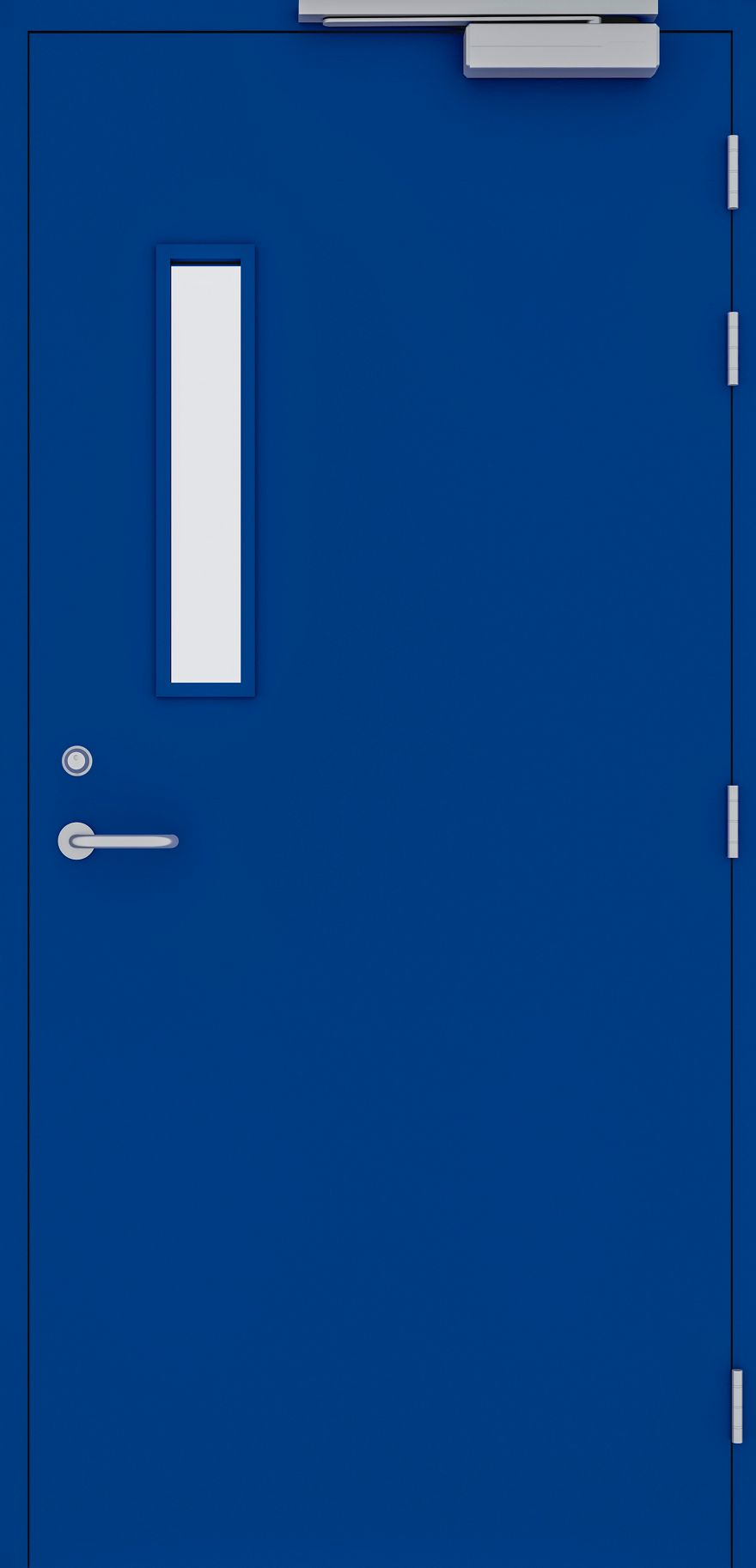

    • Single or double-leaf version with vision panel, including flush option
    • Steel door frames
    • Fire Rated (UL 10c)

    MATERIAL:

    • Steel sheet doors with rockwool-filled, stiffened leaves

    FINISHING OPTIONS:

    • Standard finish - RAL 5010, 6005, 7035, 9002, 9006, 9007, 9010, 9016
    • Standard finish includes factory-applied primer

    OPTIONAL FINISHES

    • Pre-coated steel sheets RAL 5010, 7035, 9002, 9006, 9007, 9010, 9016
    • Cladding available in stainless steel finish
    • Spray paint offered as a wet paint option

    DOOR LEAF:

    • Foil-wrapped door leaves for transport and assembly protection
    • Single or double leaf
    • Door with or without vision panel
    • Single leaf outward opening hinged doorset 1.470mm wide x 3.255mm high
    • Double leaf outward opening hinged doorset 3.360mm wide x 3.255mm high

    DOOR FRAME:

    • Welded Corner

    HARDWARE:

    • ABLOY Lockset (ANSI profile option)
    • Mottura Single Locking System, mechanical or motorized (EURO profile option)
    • ASSA ABLOY Hinges
    • ASSA ABLOY Flush Bolt
    • ABLOY Hardened Steel Cylinder
    • ABLOY Exit Device
    • ABLOY Security Cylinder

    ADDITIONAL AND OPTIONAL ACCESSORIES INCLUDE:

    • ASSA ABLOY ironmongery solutions available
    • Mechanical or electromechanical multi-point security locks
    • Self-closing mechanisms: Door closers and door coordinators
    • BMS-integrated access control and automatic operators
    • Various seal types and thresholds offered
    • Mottura defender Cylinder Protection

    APPLICATIONS:

    Embassies, Hospitals, Defense, Stadiums, Data Centers, Rooms, Box Offices, Airports, VIP Residences, Utility Buildings, Shopping Centers, Currency Exchanges, Municipal Buildings, Cashier Handling Areas and Banks.
