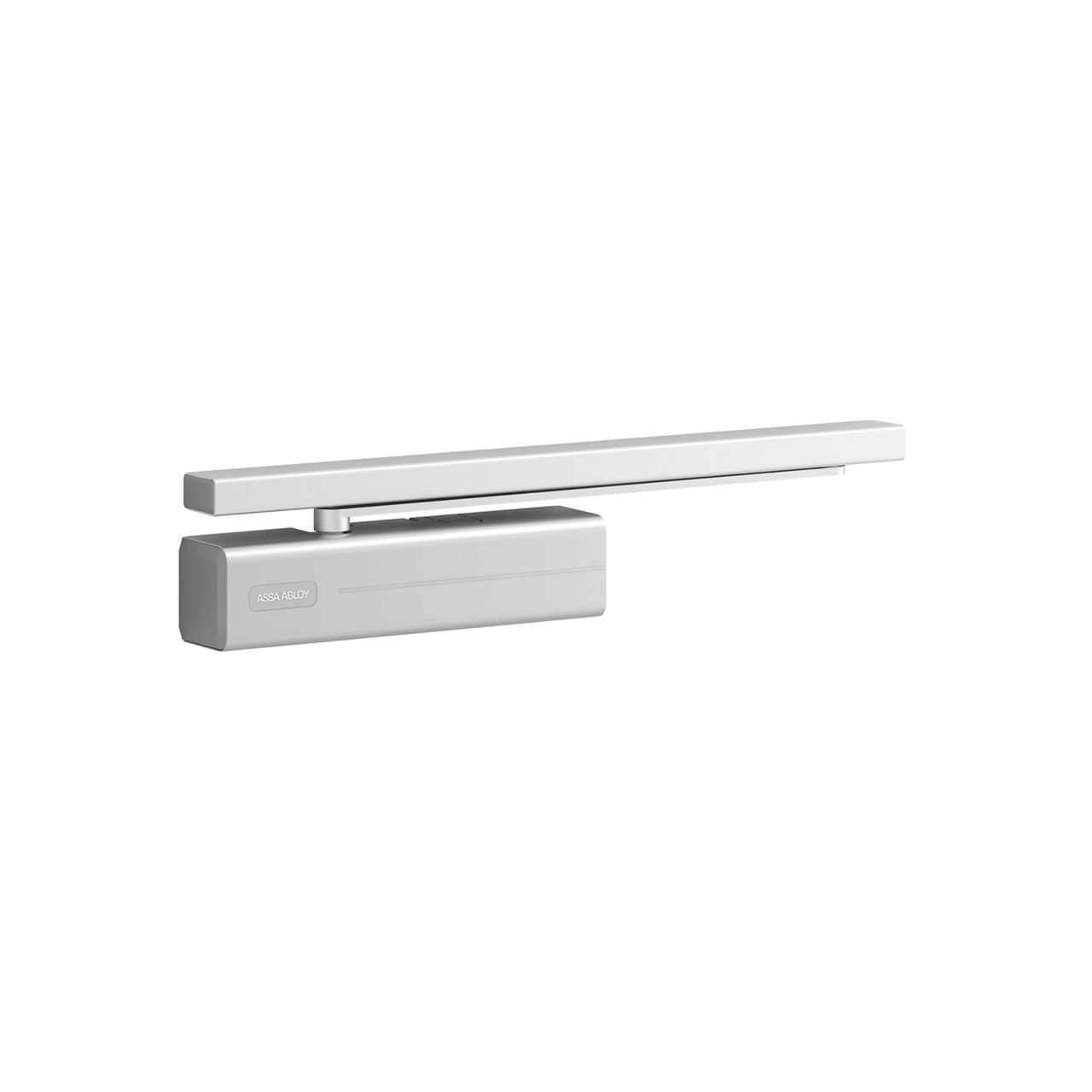

DC 700
Technical details:
- Door closer with Cam Motion technology and height-adjustable guide rail G195 or standard guide rail G193
- Fulfils barrier-free building requirements (EA/ CEN/TR 15894)
- Certified in compliance with EN1154, size EN3-6
- Suitable for fire and smoke protection doors
- For single action doors up to 1400mm wide
- Can be used in four installation types: Hinge and non-hinge side in standard and frame installation
Characteristics of DC 700:
- Can be used with integrated concealed mounting plate, suitable for fire and smoke protection doors
- Can be used for left and right-handed doors
- Axis continuously height adjustable up to 14mm
- Closing speed, latching speed and back-check adjustable via front facing regulating valves
- Thermodynamic valves for consistent performance
- Adjustable closing force
- Opening angle up to 170°
- Effective back-check and latching speed range adjustable
- Large range of applications
- Standard colour: Silver EV1, Black similar to RAL 9005, Brown similar to RAL 8014, White similar to RAL 9016,
- Stainless Steel
- Customized finishes available on request
Characteristics of standard guide rail G193:
- Without protective cover
- Visible fastening screws

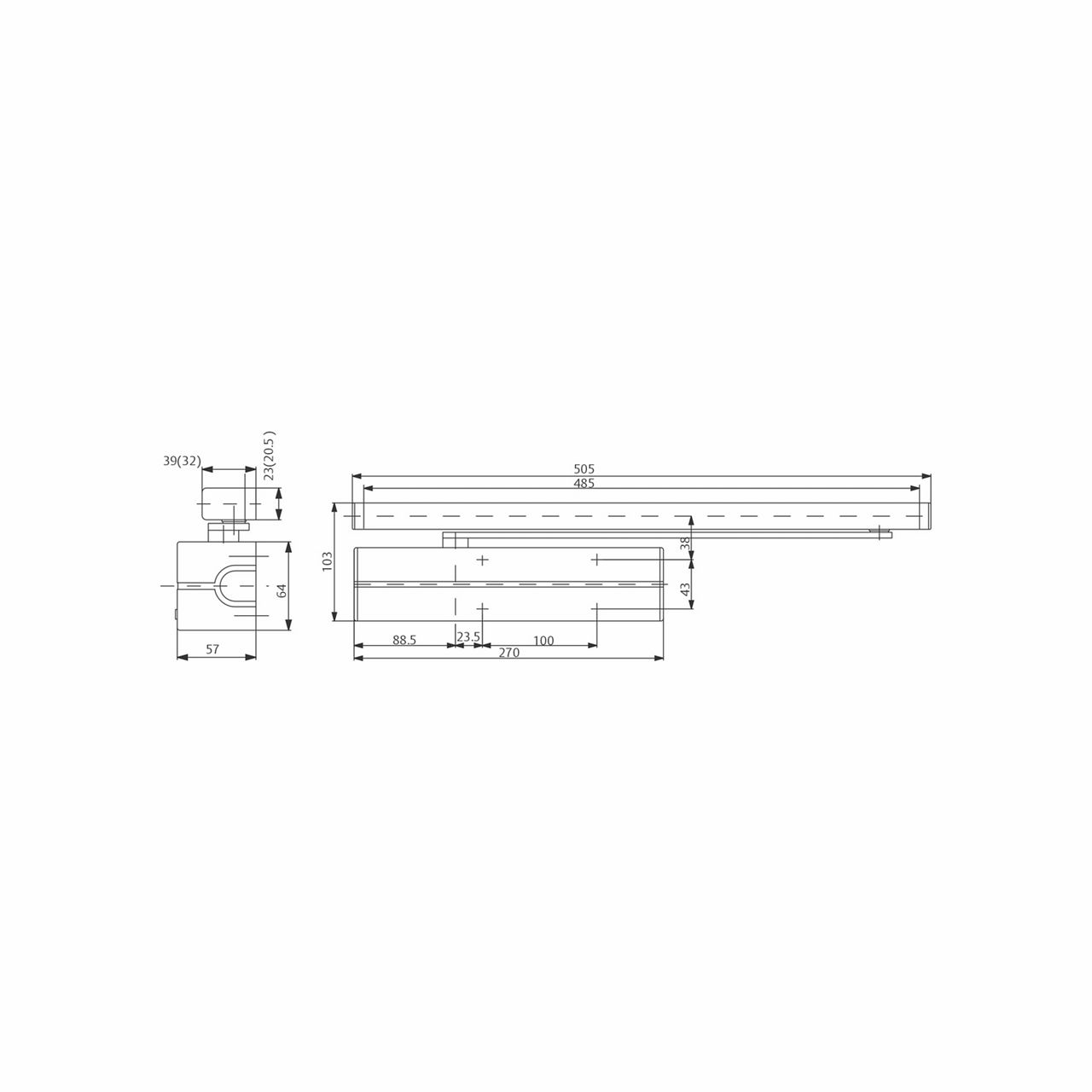

- Installation dimensions: see diagram (dimensions in brackets)
Characteristics for guide rail G195:
- Height-adjustable by 2mm for tolerance
- Concealed fastening screws
- Installation dimensions: see diagram doors
ASSA ABLOY Door Closer DC700 with Cam-Motion® technology and guide rail in compliance with EN 1154
- Closing power adjustable, EN size 3-6, for doors upto 1400 mm wide
- Closing speed, latching speed and backcheck adjustable via front facing regulating valves
- Can be used with integrated concealed mounting plate, suitable for fire and smoke protection doors
- CE approved
- 14 mm height adjustable arm system for ease of fitting
- Standard and frame mounting on hinge and non-hinge side of the door
- Suitable for left and right handed doors
- Hold-open device continuously adjustable between ca. 80° and 130°∙ Hold-open device is traversable
Accessories:
- Standard guide railG193
- Height-adjustable guide rail G195
- Mounting plate A120
- Mounting plate A130 for guide rail G193 and G195
- Angle bracket A104 for guide rail G193
- Mechanical opening damper A153
- Mechanical hold-open device A152 (not for fire and smoke protection doors)
- Glass door shoe A166
- Full stainless steel cover A190
Colour:
- Silver EV1
- White, similar to RAL9016
- Brown, similar to RAL8014
- Black, similar to RAL9005
- Stainless steel
- Customised finish
