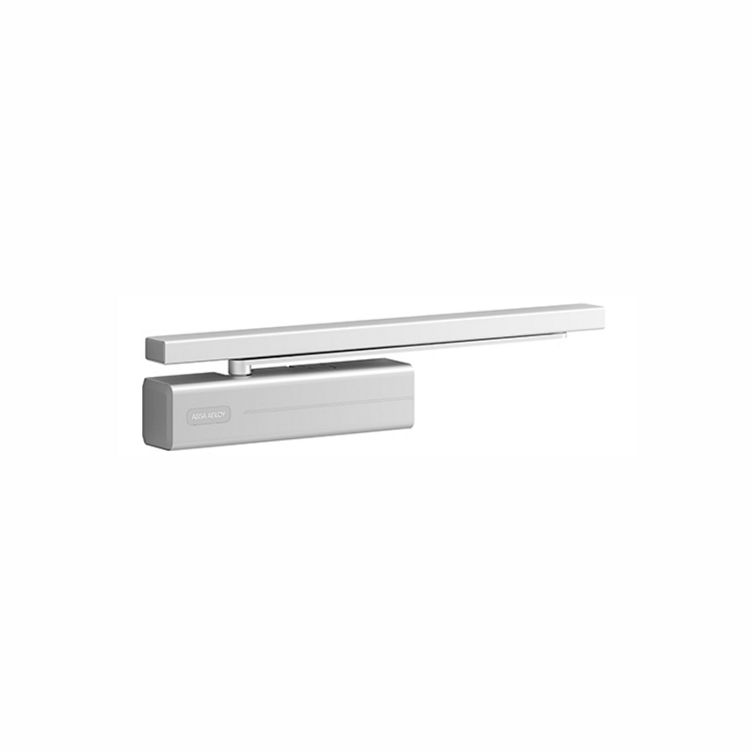

DC 500
Technical details:
- Door closer with Cam Motion technology and height-adjustable guide rail G195 or standard guide rail G193
- Fulfils barrier-free building requirements (EA/ CEN TR 15894)
- Certified in compliance with EN1154, size EN1-4
- Suitable for fire and smoke protection doors
- For single action doors up to 1100mm wide
- Can be used in four installation types: Hinge and non-hinge side in standard and frame installation
Characteristics of DC 500:
- Can be used with integrated concealed mounting plate, suitable for fire and smoke protection doors
- Can be used for left and right-handed doors
- Axis continuously height adjustable up to 14mm
- Closing speed, latching speed and back-check adjustable via front facing regulating valves
- Thermodynamic valves for consistent performance
- Adjustable closing force
- Opening angle up to 170°
- Effective back-check and latching speed range adjustable
- Large range of applications
- Standard colour: Silver EV1, Black similar to RAL 9005, Brown similar to RAL 8014, White similar to RAL 9016, Stainless Steel
- Customized finishes available on request
Characteristics for guide rail G195:
- Height-adjustable by 2mm for tolerance
- Concealed fastening screws
- Installation dimensions: see diagram doors
Characteristics for standard guide rail G193:
- Without protective cover
- Visible fastening screws
- Installation dimensions: see diagram (dimensions in brackets)
ASSA ABLOY Door Closer DC500 with Cam-Motion® technology and guide rail in compliance with EN 1154
- Closing power continuously adjustable, EN size 1-4, for doors up to 1100 mm wide
- Closing speed, latching speed and backcheck continuously adjustable
- Can be used with integrated concealed mounting plate, suitable for fire and smoke protection doors
- CE approved
- 14 mm height adjustable arm system for ease of fitting
- Standard and frame mounting on hinge and non-hinge side of the door
- Suitable for left and right handed doors
