DC 300 Tandem
Technical details:
- Rack and pinion closer with link arm L190
- Two door closers are interlinked for extra wide and heavy doors
- Double closing torque of DC300, EN size > 7
- For single action doors up to 1800 mm wide
- Suitable for fire and smoke protection doors
Characteristics of DC 300 Tandem
- Rack and pinion closer with link arm L190
- Can be used for left and right-handed doors
- Can only be used with a link arm
- Axis height-adjustable up to 14 mm Closing speed, latching speed and backcheck
- adjustable via front facing regulating valves
- Thermodynamic valves for consistent performance
- Variable adjustable closing force
- Opening angle up to 180°
- Effective backcheck and latching speed range adjustable
- Large range of applications
- Standard colours: silver EV1

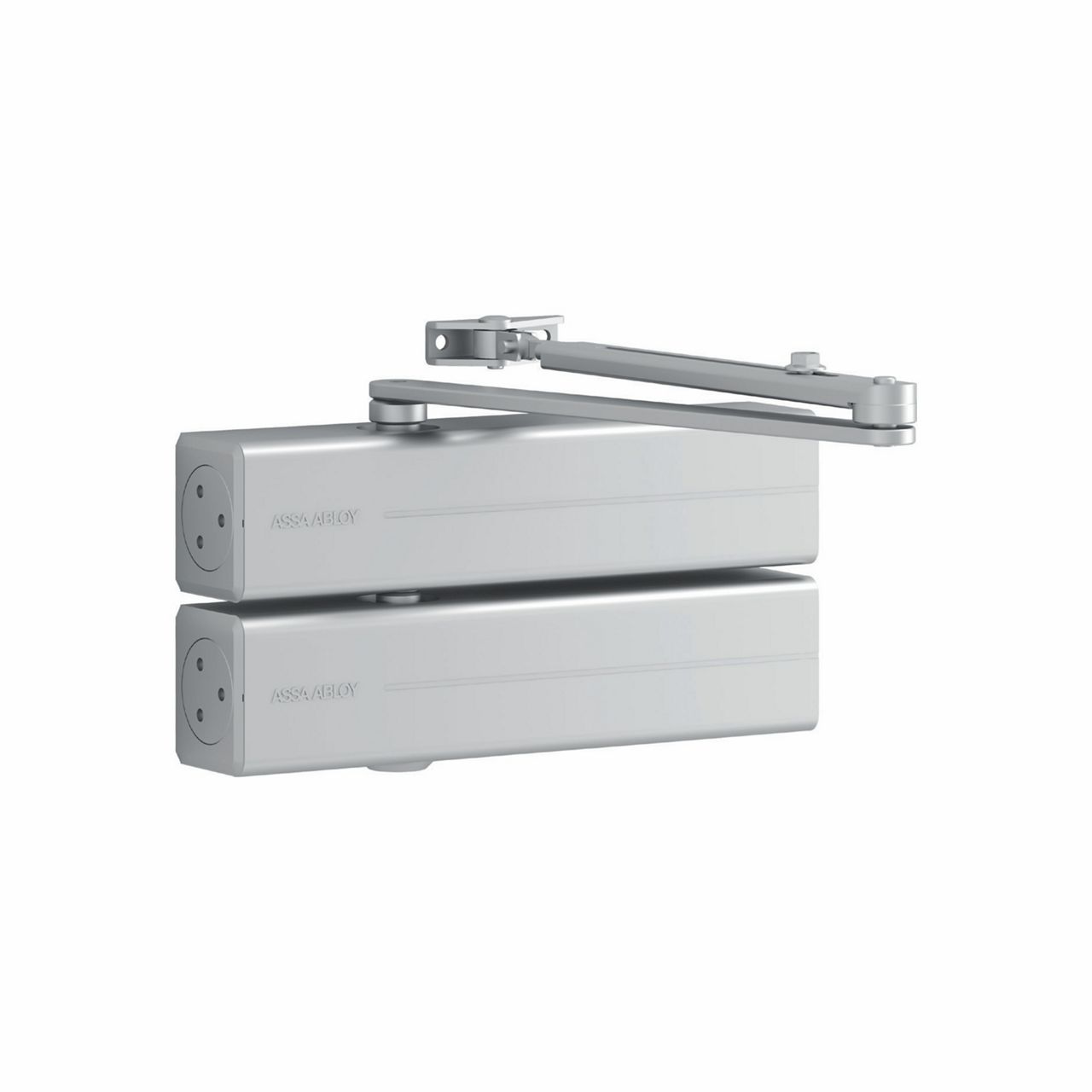

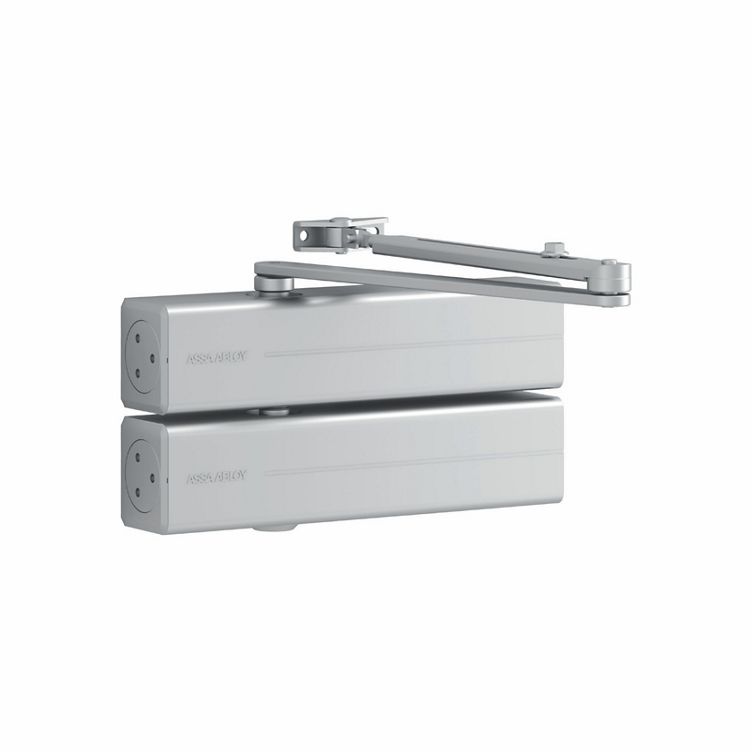

ASSA ABLOY Door closer DC 300 Tandem with link arm
- Closing power continuously adjustable, EN size >7, for doors up to 1,800 mm wide
- Closing speed, latching speed and backcheck adjustable via front facing regulating valves
- Can be used with mounting plate for fire and smoke protection doors
- 14 mm height adjustable arm system for ease of fitting
- Suitable for left and right handed doors
Accessories:
- 2 pieces DC300
- 1 piece mounting plates A121 (One piece of accessory pack contains mounting plate A121, extra long spindle and screw pack)
- 1 piece link arm L190
Colour:
- Silver EV1
