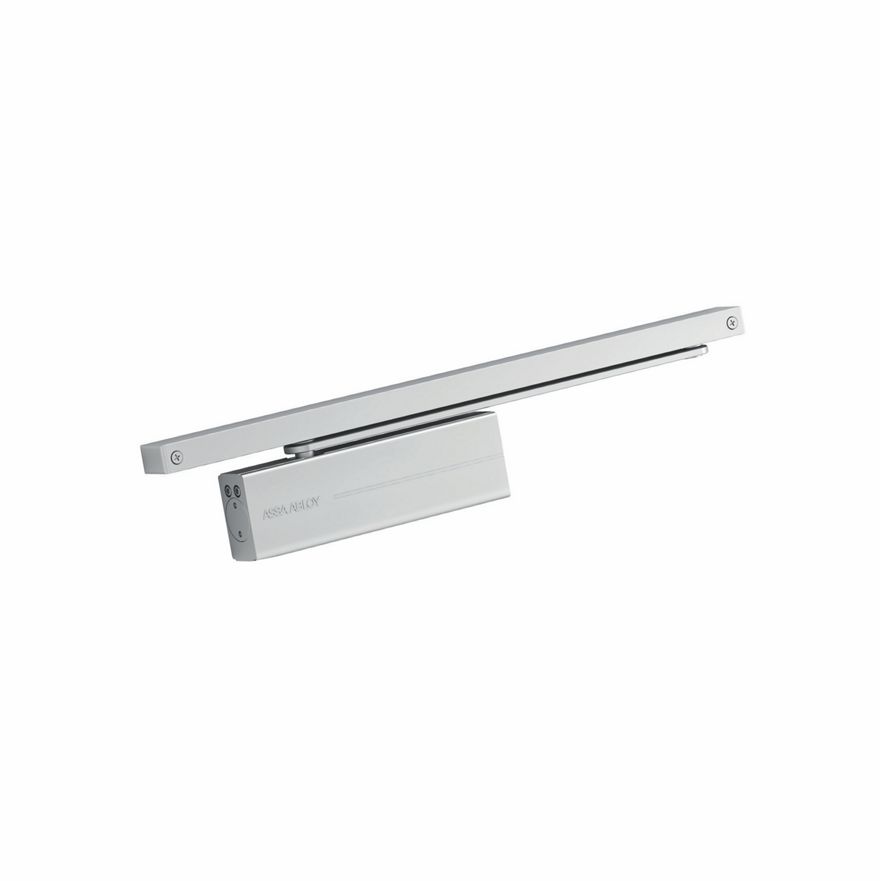

DC 175
Technical details:
- Door Closer with Cam-motion technology for guide rail
- Fulfils barrier - free building requirements (EA / CEN/TR 15894)
- Certified in compliance with EN 1154, Size 3/4
- For single action door up to 1100mm wide
Characteristics of DC175:
- Can be used with a mounting plate, suitable for fire and smoke protection doors
- Can be used in four installation type: hinge and non-hinge side in standard and frame installation
- Can be used for left and right-handed doors
- Closing speed and latching speed continuously adjustable
- Compact design
- Thermodynamic valves for consistent performance
- Opening angle up to 160° (varies with installation positions)
- Standard colour: Silver EV1; white, smiliar to RAL9016; black, similar to RAL9005
Specification for DC 175:
ASSA ABLOY Door closer DC175 with Cam-motion technology and guide rails in compliance with EN 1154
- Closing fpower adjustable, EN size 3/4, for doors up to 1100mm wide
- Closing speed and latching speed continuously adjustable
- Can be used with concealed mounting plate, suitable for fire and smoke protection doors CE approved
- Suitable for left and right handed doors
- CE approved
Accessories:
- Mounting Plate A280
- Mechanical opening damper A279
- Mechanical hold-open Device A278 (not for fire and smoke protection doors)
Colour:
- Silver EV1
- White, similar to RAL9016
- Black, similar to RAL9005
