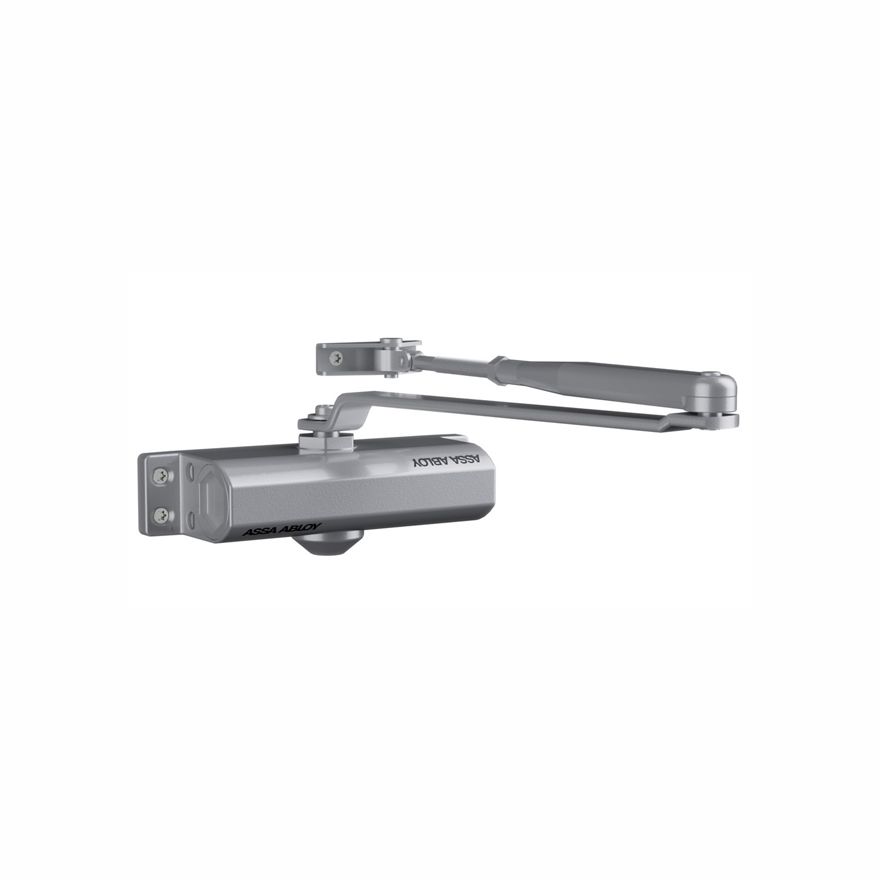

DC 105U
Technical details:
- Rack and pinion door closer with link arm
- Available with standard link arm, hold-open link arm and parallel arm
- For single action doors up to 1100mm wide
- Certified in compliance with UL 228/ULC-S133, UL 10C
- Suitable for fire and smoke protection doors - 3 hours fire rating
Characteristics of DC105U:
- Can be used for left and right-handed doors
- Closing and latching speed adjustable via regulating valves
- Thermodynamic valves for consistent performance
Standard Colours:
- Silver EV1
- White (similar to RAL 9016)
- Black (similar to RAL 9005)
- Brown (similar to RAL 8014)
ASSA ABLOY Door closer DC105U featuring rack and pinion technology
- Closing force size 2,3 and 4 for doors up to 1100mm wide
- Closing speed and latching speed continuously adjustable
- Suitable for left and right handed doors
- Suitable for fire and smoke protection door ( 3 hours fire rating)
- Certified according to UL 228/ULC-S133, UL 10C
Version
- Hold-open link arm version DC105U-1 (not for fire rated doors)
- Parallel arm version DC105U-3
