drop bolt (motor bolt) 843G
for gates and doors
Product description
Electric motor bolt for doors, gates and roller shutters with high security demands. For outdoor and indoor use.
Overview of Advantages
- holding force 50 000N
- designed for outdoor use, protection class IP67
- integrated heating, can be switched on via dip switch
- fail-locked/fail-unlocked configurable via dip switch
- push button/switch function configurable via dip switch (Toggle mode)
- multi-voltage 12V DC to 24V DC (heating only 24V DC)
- various monitoring contacts
- anti-tamper contact
- mounting position vertical and horizontal
Scope of delivery
- drop bolt 843G with 3 metre connection cable, with housing base seal, incl. counterpart
Note
- Please note the installtion instructions
- For vertical mounting position, the locking direction is recommended to close downwards.
Product Image

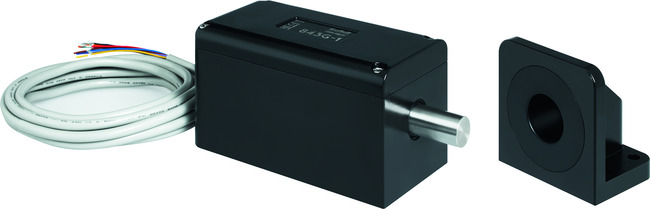

- Product Image

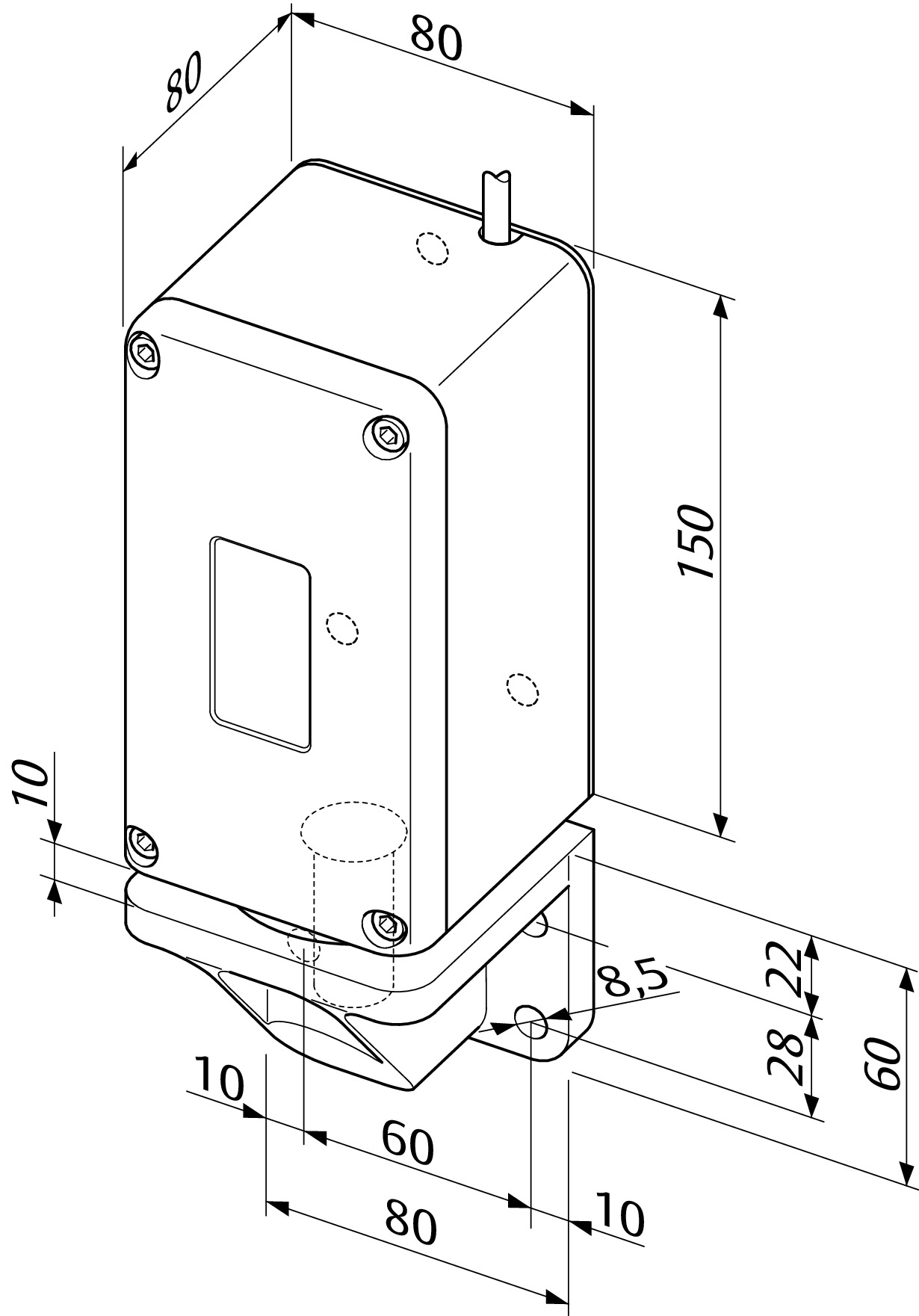

- Technical drawing 1

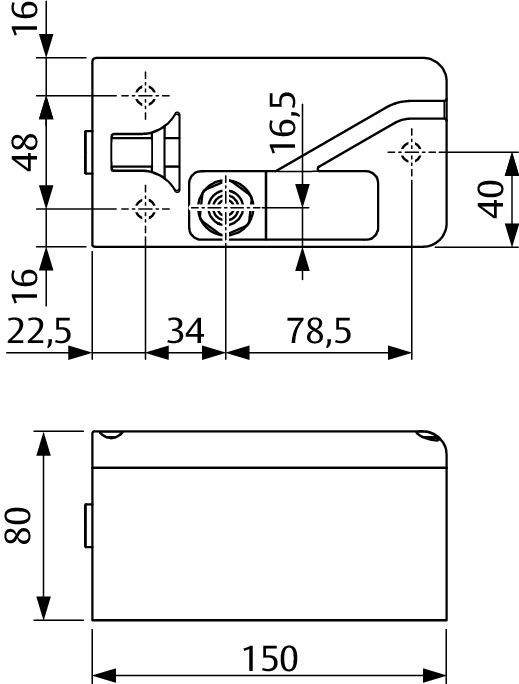

- Technical drawing 2

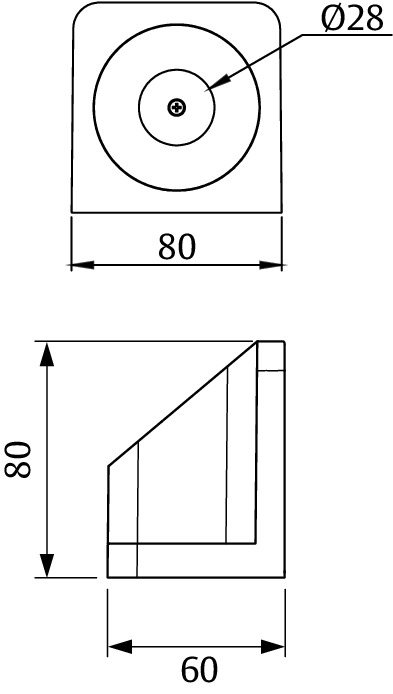

- Technical drawing 3
Input operating voltage 12-24 V DC Rated operating voltage tolerance range ± 15 % 12 V starting current 1000 mA 24 V starting current 500 mA 12 V latching current (standby) 40 mA 24 V latching current (standby) 30 mA Current with heater ON (standby) 1.6 A at 24V DC Max. current with heater ON 2.0 A at 24V DC Diameter lock deadbolt 18 mm Lock bolt throw 30 mm Length 150 mm Width 80 mm Height 80 mm Installation position vertical (only closing downwards recommended) and horizontal Holding force 50000 N Dimensions strike 80 mm x 80 mm x 60 mm
