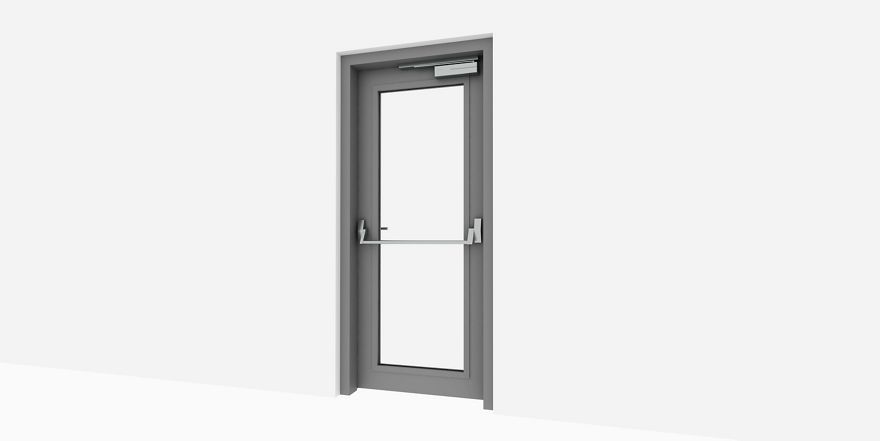

Steel Frame Glass Doorset Fire Exit - Single
ASSA ABLOY Security Solutions Middle East doorset for a fire rated escape route single leaf steel door. Equipped with fire rated panic exit device and door closer with Cam-Motion technology.
Characteristics
• Full range of sizes
• Single leaf made of galvanised steel sheet and stainless steel to polyester powder coated finish.
• Doorframes are made of galvanised steel sheet and stainless steel to polyester powder coated finish.
• Door set powder-coated in any colour from the Standard Range RAL palette
• Door Frame Corner construction: Welded or Knock down as per the requirements.
Performance
• Increased finish performance for corrosion
• Acoustic rating available in Flushed Door up to STC35dB (Honeycomb) and up to STC50dB (Rockwool)
• Usage: Internal (Honeycomb/Rockwool); External (Rockwool), Substations /Unmanned (PIC).
Safety
Finger guard option.
Sustainability
• Thermal transmittance (U) value 1.565 W/m2k (Honeycomb), Upto 0.625W/m2k Rockwool
• Manufactured under ISO 9001:2015 certification
• Environmental Product Declaration (EPD) Available for Honeycomb.
Hardware Set
• Ball Bearing Butt Hinge, Standard: BS EN 1935:2002, CE Marked, Fire-Rated
• Panic Touch Bar, Standard: EN 1125:2008, EN 1634. CE Marked, Fire-Rated, EPD available
• Outside Access Device with European Cylinder Hole, Lever outside.
• Euro Profile Half cylinder, Standard: EN 1303:2015, EN 15804, SKG approved, EPD available
• Door Closer Cam-Motion, Standard: EN 1154, CE Marked, Fire-Rated, EPD available
• Floor mounted door stop
• Fire-Rated and Smoke proof Self-adhesive seal
Typical applications
• Residential, Commercial buildings, Hospitals, School and Others.
Compatible Standards:
EN1935, EN1154, EN1125, EN 1303, BS476 pt22, EN1634-1.
