Single Steel Doorset HV Room - Single
Single Steel Doorset HV Room - Single

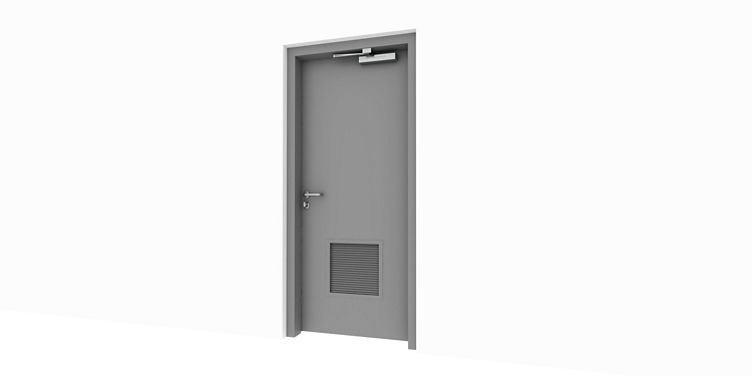

ASSA ABLOY Security Solutions Middle East doorset for a High voltage room with fire rated single leaf steel door. Equipped with mortice sash lock, lever handle, master keyed cylinder and rack and pinion door closer
Characteristics
- Full range of sizes
- Single leaf made of galvanised steel sheet and stainless steel to polyester powder coated finish.
- Doorframes are made of galvanised steel sheet and stainless steel to polyester powder coated finish.
- Door Set powder-coated in any colour from the Standard Range RAL palette
- Door Frame Corner construction: Welded or Knock down
Performance
- Increased finish performance for corrosion
- Acoustic rating available in Flushed Door up to STC35dB (Honeycomb) and up to STC50dB (Rockwool)
- Usage: Internal (Honeycomb/Rockwool); External (Rockwool)
Safety
- Fire rating up to FD180
- Protection plates, Armor plates, options available arerequired.
Sustainability
- Thermal transmittance (U) value 1.565 W/m2k (Honeycomb), upto 0.625W/m2k Rockwool
- Manufactured under ISO 9001:2008 certification
- Environmental Product Declaration (EPD) Available for Honeycomb
Hardware Set:
- Ball Bearing Butt Hinge, Standard: BS EN 1935:2002. CE Marked
- Mortice Lock case silent latch Sash lock, Standard: BS EN 12209:2003, CE Marked. (EPD-ASA-20130279-IBC1-EN)
- Lever Handle, standard: BS EN1906 Grade 3.
- MKS Single Cylinder, Standard: BS EN 1303:2015
- BS EN 15804 and SKG approved. (EPD-ASA-20170150-IBA1- EN)
- Door Closer Rack & Pinion, Standard: BS EN 1154. CE Marked. (EPD-ASA-20150278-IAB1-EN)
- Floor mounted doorstop.
- Self-adhesive seal.
Typical applications:
- Back of house areas of residential, commercial buildings, hospitals, schools, hotels, and others.
- Residential, commercial buildings, hospitals and Other
Compatible Standards: BS EN1935, BS EN1154, BS EN12209, BS EN1906, BS EN 1303.
