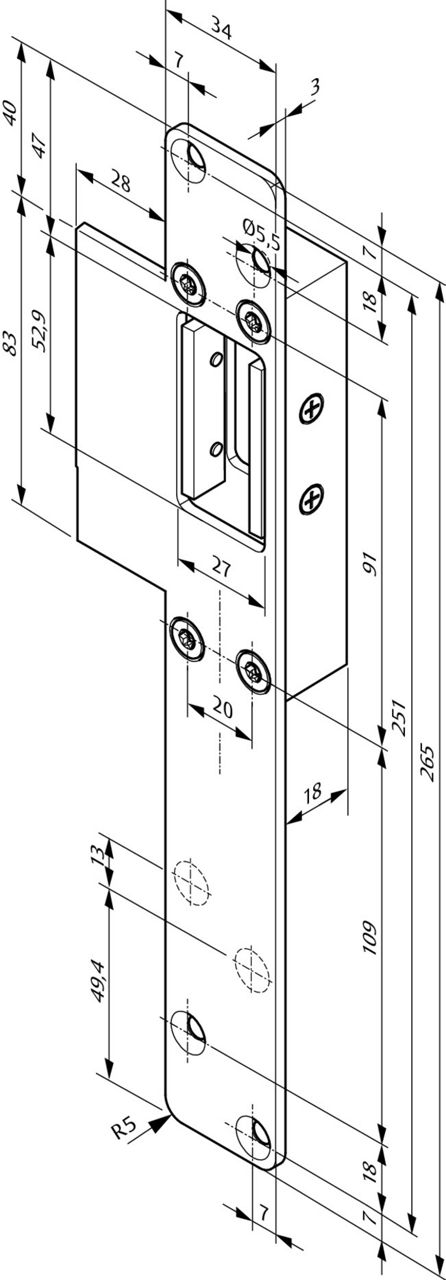

Flanged striking plate L4 (universal, left hand)
Product description
Adjustable flanged striking plate L4 with integrated magnets for Technilock® L4
Overview of advantages
- DIN left
Scope of delivery
- 1 piece striking plate
Note
- *= material thickness + bolt pocket build-up
Version Adjustable, flanged Length 265 mm Width 34 mm Thickness 3 mm Case depth 3 + 18 mm* Color Stainless steel Material EST: 1.4301 DIN-direction Left Product Order Number Flanged striking plate L4 - Adjustable, flanged 28 mm, DIN left hand 844L4SBL4----04
Contact us
Similar products
Spacer plates
Product description
Spacer plate for striking plate as compensation for excessively large strike margin.
Bolt case (30mm)
30 mm backset, only for Technilock® L4 variant without handle followerBolt case (35mm)
35 mm backset, only for Technilock® L4 variant without handle followerBolt case (40mm)
40 mm backset, only for Technilock® L4 variant without handle followerBolt case (60mm)
60 mm backset, only for Technilock® L4 variant without handle followerStriking plate box
Product description
For the mounting of the L4 striking plate with a length of 265 mm.
Scope of delivery
- 1 striking plate case
Security escutcheon
With core drawback protector; for Eurocylinder; nickel-plated matCircuit board
Potential-free contact; compatible with M4; only for Technilock® L4 variant without handle follower
